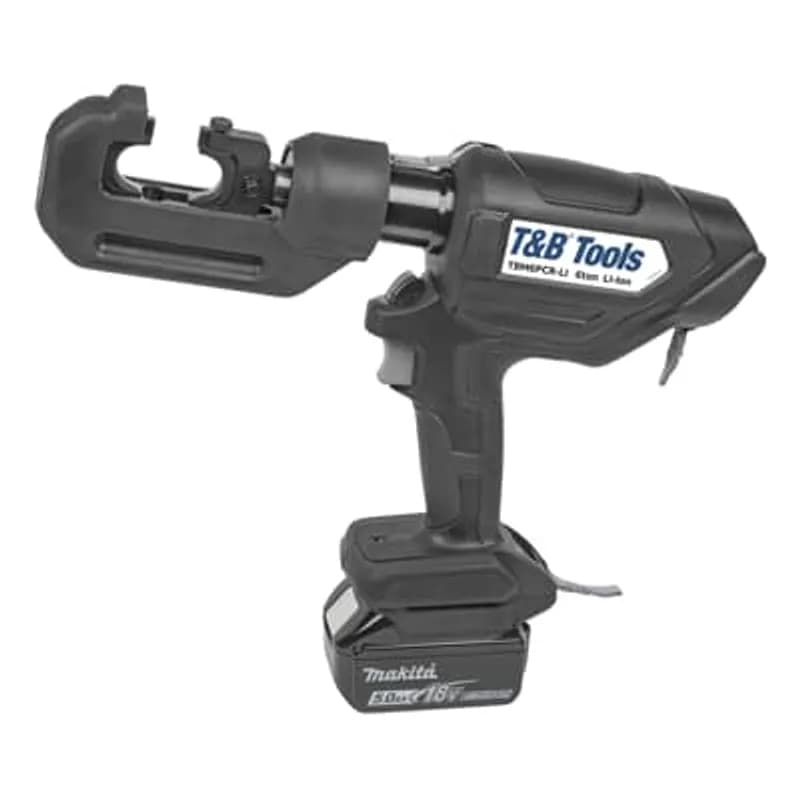

ABB Installation Products TBM6PCR-LI 6-Ton Lithium-Ion Battery Powered Open Crimp Tool for Crimping #8-600 kcmil Copper…
UPC: 783786529728
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 6-ton crimp force for #8-600 kcmil copper and #8-400 kcmil aluminum connectors
- Includes 18V Makita lithium-ion battery for cordless operation
- Compact dimensions: 13.7" L x 3.3" W x 10.6" H, weighs 8.3 lbs with battery
- Open crimp design for easy positioning in tight spaces
- Eliminates need for hydraulic pumps or external power sources
Specifications
Battery | Lithium Ion |
Crimping Force | 6 ton |
Special Features | 18 V Makita battery offers lighter weight, longer run times, no memory effect, minimal discharge and a rapid recharge |
Type | Battery Power Crimp Tool |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 24.8800 L |
Package Weight (Metric) | 11.2860 kg |
CT-3001/STINT
Introducing the Panduit BlackFin 3-in-1 in-line Lithium-ion Hydraulic Crimp Tool. Adapters and dies change out quickly and easily thanks to a 355-degree rotating flip-top crimp head. The crimp tool has a force of 6.7 tons and crimps Panduit copper lugs and splices for #8 AWG - 600 kcmil Code, #8 AWG -313 kcmil flex, 10mm2 - 240mm2 Class 2r and 10mm2 - 95mm2 Class 5f and 6f metric, #6 AWG - 350 kcmil aluminum lugs and splices. Copper CTAPF taps up to 4/0 AWG copper CTAP taps up to #2 AWG. Includes CD-3001/ST-DA die adapter for CD-2001 dies, two 3.0 Ah 18V batteries, 230 V battery charger with Interational Type C plug and plastic carrying case. For use with Panduit CD-2001, KC22 and KA22 dies sold separately.
T3100000032-002
Commercial Crimp Tooling, Not Releasable, Not Adjustable, Removable/Interchangeable, DIN, Battery, Die Sets, Hand Crimping Tools
144-ADP-LI
Adapter for Lithium-Ion Battery to Convert TBM Series Battery Tools. For use with Battery 144-BAT-LI and TBM14CR-LI or TBM15CR-LI only. 6.05 x 12.87 inch, Weight .4 pounds, 3.0 Ah, Output 14.4 VDC. Converts older TBM series battery tools with poke-in style battery to the new Li-ion battery platform, allowing for higher productivity as batteries are interchangeable across the Li-ion tools.
TBM6UCR-LI
6-Ton Lithium-Ion Battery Powered Inline Open OD Crimp Tool for Crimping #8-300 kcmil Copper, #8-4/0 kcmil Aluminum Connectors. 22 x 3.5 x 4.5 inch. Weight 8.75 pounds with Battery. 14.4 VD, 3.0 Ah
HMC5750-LI
6-Ton Lithium-Ion Battery Powered Dieless Closed Crimp Tool for Crimping #6-750 kcmil Cu/Al Connectors
HMC5630-LI
6-Ton Lithium-Ion Battery Powered Dieless Open Crimp Tool for Crimping #8-500 kcmil Cu/Al Connectors
BAT22-6NV2
Battery-Powered Crimping Tool, Intended to Crimp Some Types of Terminals, Splices, Wire Joints and Dragon Tooth, 22AWG Through 6AWG Wires Using Appropriate DIES (Sold Separately)
CT-2980/L
Dieless 6.2 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 1.50" (38.1mm), Weight 11.75 lbs (8.3 kg) with battery, Length: 14.75" (374.7mm), Height: 15" (381mm), Width: 3" (76.2mm).Frequently Asked Questions
What charger is compatible with Makita 18V batteries?
The CHR-MK charger works across the Makita® LXT® 18 V battery platform. It operates on 120 V AC, 50–60 Hz.
What type of die sets are available for the TBM6PCR-LI?
Available die sets include the TBM6HDXSS 6-ton HEX-FLEX™ stainless steel die set for #8 AWG–300 kcmil and the TBM6HD1SS 6-ton stainless steel hex die set for #8 AWG–600 kcmil.
What safety precautions should be taken when using the crimp tool?
Keep hands and other body parts away from the crimping head due to pinch points. Compression dies at high force can cause severe personal injury.
What is the warranty for ABB lithium-ion tools and batteries?
All ABB lithium-ion tools and batteries come with a limited 5-year warranty.
Which battery is compatible with the TBM6PCR-LI?
The TBM6PCR-LI works with Makita® LXT® 18 V lithium-ion batteries.
What is the crimping capacity of the TBM6PCR-LI?
The TBM6PCR-LI has a capacity for Cu #8–600 kcmil and Al #8–400 kcmil. Its output is 6 tons.
What are the dimensions and weight of the TBM6PCR-LI tool?
The TBM6PCR-LI measures 13.7 inches L x 3.3 inches W x 10.6 inches H. It weighs 8.3 lbs. with the battery.
Which battery is compatible with the TBM6PCR-LI?
The TBM6PCR-LI works with Makita® LXT® 18 V lithium-ion batteries.
What is the warranty for ABB lithium-ion tools and batteries?
All ABB lithium-ion tools and batteries come with a limited 5-year warranty.
What charger is compatible with Makita 18V batteries?
The CHR-MK charger works across the Makita® LXT® 18 V battery platform. It operates on 120 V AC, 50–60 Hz.
How to Operate the TBM6PCR-LI Hydraulic Compression Tool
This guide provides comprehensive instructions for charging the battery, attaching it to the TBM6PCR-LI hydraulic compression tool, performing safe and effective compression operations, and configuring the auto-retract feature.
Estimated time: 45m
Tools needed:
Hydraulic Compression Tool (TBM6PCR-LI), Charger (CHR-MK), Compression Dies (DBL, 6 Ton Series, or Burndy "W" type), Flat blade screwdriver
Supplies needed:
Battery (BAT-MK), Conductor, Connector, Safety glasses, Personal Protective Equipment (PPE)
- Charge the TBM6PCR-LI Battery
Connect the BAT-MK battery charger to a 120V AC power source; the charging light will repeatedly flash green. Insert the Battery (BAT-MK) firmly into the charger. The LED Lamp will light red [CHARGING]. Allow approximately 45 minutes for a full charge, indicated by a green LED lamp and a melody or beep. If the LED flashes red [HIGH TEMPERATURE], allow the battery to cool before charging. Do not power the Charger with a portable generator or any other power source other than 120V AC.
- Attach the Battery Pack to the Tool
Slide the charged Battery (BAT-MK) into the base of the Hydraulic Compression Tool (TBM6PCR-LI) until it stops and the latches engage. Gently pull the battery without pressing the latches to ensure it is securely attached. To detach, pull out the Battery while pressing the latches.
- Select and Insert Compression Dies
Wear safety glasses and any other required PPE. Select the appropriate size dies for the connector you are using. Insert one die half into the C-head of the tool and the other half of the die into the Ram. If using Burndy 'W' type dies, first install the DBL die set, then install the 'W' dies over the DBL dies, securing them in place with the spring-loaded pins.
- Perform a Conductor Compression
WARNING: Pinch points, keep hands and other body parts away from the crimping head when crimping. Compression dies at high force can cause severe personal injury. Place the connector between the dies. Press the advance trigger to advance the Ram so the connector is held lightly between the dies; do not deform the connector. Insert the conductor into the connector. Press the trigger until the compression is complete, indicated by a series of clicks, a release in pressure, a green LED, and an audible beep. If the LED flashes red and beeps, the compression was incomplete or the battery is low. After compression, press the release button to retract the ram completely. Remove the compressed connector from the tool.
- Toggle Auto-Retract Feature (Optional)
The auto-retract feature can be toggled on or off depending on user preference or specific job requirement. To turn auto retraction off, remove the rubber grommet and use a flat blade screwdriver to rotate the indicator 90 degrees to the desired position.
