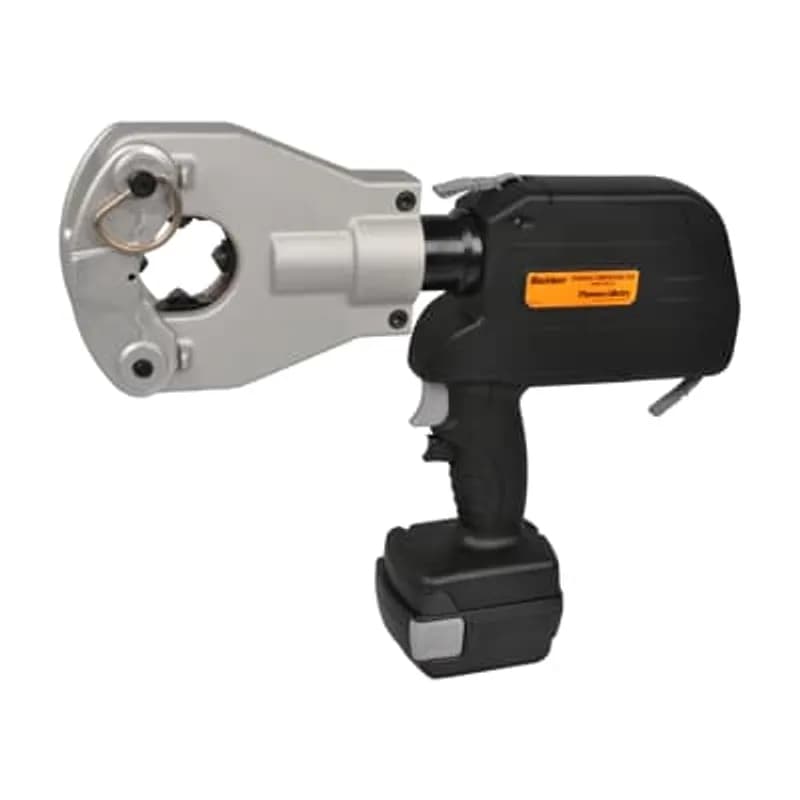

ABB Installation Products HMC5750-LI 6-Ton Lithium-Ion Battery Powered Dieless Closed Crimp Tool for Crimping #6-750 kcmil…
UPC: 783786530465
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 6-Ton Crimping Force
- Lithium-Ion Battery Powered
- Dieless Closed Crimp Design
- Accommodates #6-750 kcmil Copper/Aluminum Connectors
- Ideal for Electrical Installations and Maintenance
Specifications
Battery | Lithium Ion |
Crimping Force | 6 ton |
Special Features | 14.4V lithium-ion battery offers lighter weight, longer run time, no memory effect, minimal discharge and rapid recharge |
Type | Battery Power Crimp Tool |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 26.6600 L |
Package Weight (Metric) | 12.0930 kg |
CT-3001/STINT
Introducing the Panduit BlackFin 3-in-1 in-line Lithium-ion Hydraulic Crimp Tool. Adapters and dies change out quickly and easily thanks to a 355-degree rotating flip-top crimp head. The crimp tool has a force of 6.7 tons and crimps Panduit copper lugs and splices for #8 AWG - 600 kcmil Code, #8 AWG -313 kcmil flex, 10mm2 - 240mm2 Class 2r and 10mm2 - 95mm2 Class 5f and 6f metric, #6 AWG - 350 kcmil aluminum lugs and splices. Copper CTAPF taps up to 4/0 AWG copper CTAP taps up to #2 AWG. Includes CD-3001/ST-DA die adapter for CD-2001 dies, two 3.0 Ah 18V batteries, 230 V battery charger with Interational Type C plug and plastic carrying case. For use with Panduit CD-2001, KC22 and KA22 dies sold separately.
T3100000032-002
Commercial Crimp Tooling, Not Releasable, Not Adjustable, Removable/Interchangeable, DIN, Battery, Die Sets, Hand Crimping Tools
BAT22-6NV2
Battery-Powered Crimping Tool, Intended to Crimp Some Types of Terminals, Splices, Wire Joints and Dragon Tooth, 22AWG Through 6AWG Wires Using Appropriate DIES (Sold Separately)
HMC5630-LI
6-Ton Lithium-Ion Battery Powered Dieless Open Crimp Tool for Crimping #8-500 kcmil Cu/Al Connectors
144-ADP-LI
Adapter for Lithium-Ion Battery to Convert TBM Series Battery Tools. For use with Battery 144-BAT-LI and TBM14CR-LI or TBM15CR-LI only. 6.05 x 12.87 inch, Weight .4 pounds, 3.0 Ah, Output 14.4 VDC. Converts older TBM series battery tools with poke-in style battery to the new Li-ion battery platform, allowing for higher productivity as batteries are interchangeable across the Li-ion tools.
CT-2980/L
Dieless 6.2 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 1.50" (38.1mm), Weight 11.75 lbs (8.3 kg) with battery, Length: 14.75" (374.7mm), Height: 15" (381mm), Width: 3" (76.2mm).CT-2940/L
Die type 15 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 2" (50.8mm), Weight: 24.35 lbs. (11.0kg) with battery, Length: 22" (558.8mm), Height: 10.75" (273.1mm), Width: 3.75" (95.3mm).
CT-2930/L
Die type 14 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 1.65" (41.9mm), Weight: 17.90 lbs. (8.1 kg) with battery, Length: 14.5" (368.3mm), Height: 16.5" (419.1mm), Width: 3.25" (82.6mm).Frequently Asked Questions
What is the jaw opening size of the HMC5750-LI?
The HMC5750-LI tool has a 1.5 inches jaw opening.
What is the HMC5750-LI compression tool used for?
The HMC5750-LI is a fully automatic, self-contained power tool for effortless compression of Homac®/Anderson-style lugs and splices.
What is the compression force of the HMC5750-LI?
The HMC5750-LI provides 6 tons of compression force, eliminating the need for dies.
What types of connectors can the HMC5750-LI crimp?
It crimps Homac®/Anderson-style lugs and splices, and most connectors manufactured to ANSI C119.4 specification.
What is the maximum cable capacity for the HMC5750-LI?
The tool has a capacity of 750 kcmil Cu. For range-taking connectors, the cable must be the maximum size specified for the connector.
What are the dimensions of the HMC5750-LI tool?
The dimensions of the HMC5750-LI are 15.5 inches L x 2.5 inches W x 13 inches H.
How much does the HMC5750-LI tool weigh?
The HMC5750-LI tool weighs 12.5 lbs with the battery.
What type of battery does the HMC5750-LI use?
The HMC5750-LI uses a 14.4V, 3.0 Ah, Lithium-ion battery.
What is included in the HMC5750-LI tool kit?
The tool kit includes the compression tool, two battery cartridges, a battery charger, operation instructions, and a carrying case.
What is the input voltage for the battery charger?
The battery charger for the HMC5750-LI requires a 120V AC input.
How to Install and Operate the HMC5750-LI Battery Charger
Guide for setting up and using the HMC5750-LI battery charger to charge compatible battery packs.
Estimated time: 1h
Tools needed:
Screwdriver, Qualified electrician (if outlet needs modification)
Supplies needed:
HMC5750-LI Battery Charger, AC Power Cord, Thomas & Betts 144-BAT-LI battery pack
- Prepare the Power Outlet
Ensure you have a properly grounded three-prong outlet. If only a two-prong outlet is available, use a temporary adapter with a grounding pin, but have a qualified electrician install a proper outlet as soon as possible. WARNING: Ensure the outlet box is grounded before using an adapter. If unsure, have it checked by a qualified electrician.
- Connect the Power Cord
Connect the AC power cord to the HMC5750-LI battery charger and plug it into the prepared AC outlet. The indicator lamp should blink red, indicating stand-by mode. WARNING: Never alter an AC cord or its plug. An improper connection can cause electric shock. The charger must be grounded.
- Prepare the Battery
Ensure the battery pack is at room temperature (68°F -77°F or 20°C - 25°C). CAUTION: Do not charge a battery that has been stored below 32°F (0°C). Allow it to warm up to room temperature before charging.
- Insert the Battery
Insert the Thomas & Betts 144-BAT-LI battery pack into the HMC5750-LI charger. The charging system will begin, and the indicator lamp should turn solid green.
- Monitor Charging Status
Observe the indicator lamp for charging status: SOLID GREEN (charging), RAPID BLINKING GREEN (80% complete), SOLID ORANGE (100% complete). If the lamp lights red, the battery temperature is too high or low; remove and allow it to reach room temperature. If the lamp blinks red rapidly, the battery is defective and must be replaced.
- Verify Completion
Once the indicator lamp turns solid orange, the battery is fully charged. A charged battery can be stored in the charger indefinitely.
