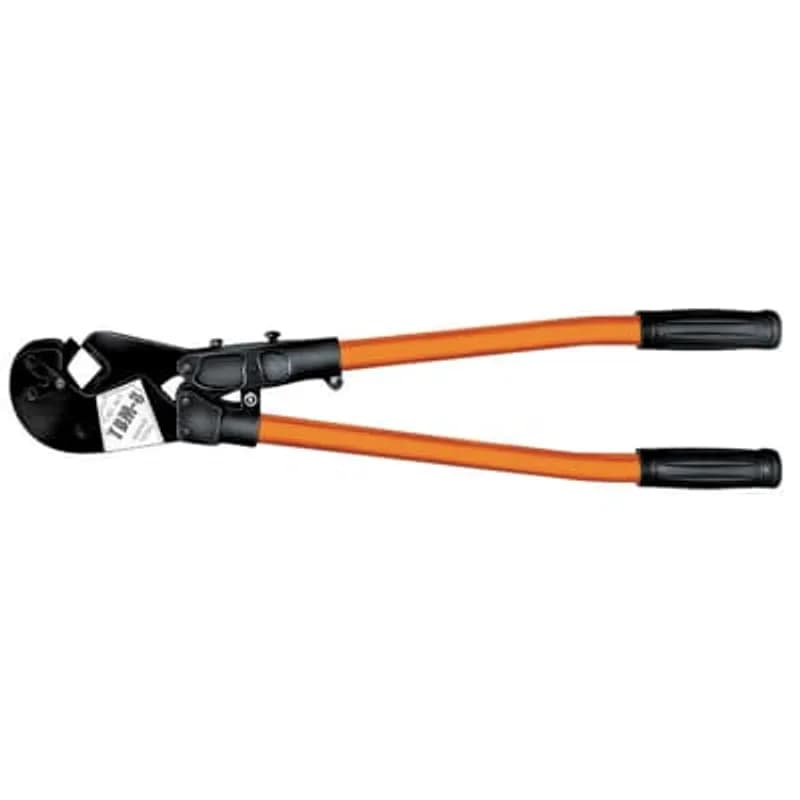

ABB Installation Products TBM8 Crimp Tool, Crimps #8-500MCM CU, #10-350MCM AL Connectors
UPC: 786210804798
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Crimps #8-500MCM copper and #10-350MCM aluminum connectors
- Precision-engineered for consistent, high-quality crimps
- Ergonomic design reduces operator fatigue
- Compatible with industry-standard connectors
- Backed by ABB’s industrial-grade reliability
Specifications
Application | Crimping Lugs/Taps |
Handle Type | Palm Grip |
Special Features | Dies Included, Color-coded Die Nests, Die Code Embossment |
Standard | UL E9809 |
Type | Manual Crimp Tool |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 12.0000 L |
Package Weight (Metric) | 5.4430 kg |
NSI-12
12-Ton Compression Tool for U-Type Dies APPLICATIONS: Delivers 12 tons of hydraulic force. It has a 1 1/2" jaw opening for large conductors and taps with automatic two-speed pump action for rapid ram advancement. It features a 180 degree head rotation and fast ram release with the twist of the handle. It accepts all standard U-Type dies.
952050-E
Commercial Crimp Tooling, Removable/Interchangeable, Manual, Crimp Tool, ERNI MaxiBridge, Hand Crimping Tools
CT-720
Manual crimping tool for UL Listed or Recognized and CSA Certified terminations of Panduit copper compression lugs and splices for #8 AWG 500 kcmil copper code conductor and aluminum compression lugs and splices for #6 AWG 350 kcmil copper and aluminum code conductors. Provides UL Listed terminations of Panduit Pan-Term #8 2 AWG vinyl insulated terminals.Color-coded CD-720 crimping dies, carrying/storage case, and controlled cycle mechanism must be purchased separately.Specifications:Output: 6 tonsWeight: 7.7 lbs.Length: 26"Handle span: 58" (open), 2.5" (closed)
TBM6S
Crimp Tool with Shure Stake Mechanism, Crimps #8-500MCM Cu, #10-350MCM Al Connectors, 54705-54750 C-Taps
TBM6H
6 Ton Hydraulic Head - Operating Pressure 10,000 PSI, Application Range Copper 8 AWG - 500 kcmil and Aluminum 10 AWG - 350 kcmil, Tool Carrying Case Included
TBM8-750M-1
12 Ton Dieless Manual Hydraulic Compression Tool - Application Range 900 kcmil Copper Lugs and Splices, 750 kcmil Aluminum Lugs and SplicesFrequently Asked Questions
What is the manufacturer of the TBM8?
The TBM8 is manufactured by ABB - Installation Products.
What is the UNSPSC code for the TBM8?
The UNSPSC code for the TBM8 is 27111518.
What wire sizes does the TBM8 support?
The TBM8 crimps copper conductors from #8 to 500MCM and aluminum conductors from #10 to 350MCM.
Is the TBM8 compatible with standard connectors?
Yes, the TBM8 is designed for use with industry-standard #8-500MCM CU and #10-350MCM AL connectors.
How to Operate and Verify Calibration of TBM8/TBM8S Compression Tools
This guide provides step-by-step instructions for installing dies, preparing conductors, making electrical compressions, and verifying the calibration of TBM8 and TBM8S compression tools for reliable connections.
Estimated time: 45m
Tools needed:
TBM8 or TBM8S Compression Tool, Appropriate Crimping Die, Wire strippers, Wire brush or emery cloth, Screwdriver, Measuring tool (e.g., ruler), Gage pin
Supplies needed:
Thomas & Betts Connectors (lugs, splices, C-Taps), Copper or Aluminum Conductors, Joint compound (for aluminum conductors)
- Install the Correct Crimping Die
Open tool handles fully. Loosen the die locking screw to disengage it. Insert the desired die, ensuring the crimping nest and color code are in the lower right corner and the locking screw faces you. Tighten the die locking screw firmly. Match the connector's color code to the die's color code.
- Prepare Conductor and Insert into Connector
Strip conductor insulation without cutting or nicking strands, following connector instructions for strip length. For aluminum conductors, apply a thin layer of joint compound and brush it in. Insert the prepared conductor into the connector barrel until it bottoms out. CAUTION: Improper stripping can lead to premature pull-test failures.
- Make the Electrical Compression
Position the connector in the tool's die grooves: between color code marks for copper, or on color code marks for aluminum. If multiple compressions are needed, start nearest the terminal tongue or splice center, then work towards the barrel end. Close the tool handles completely for each compression until the SHURE STAKE® mechanism releases (TBM8S only). WARNING: Keep fingers clear of die nests when handles are brought together.
- Verify Tool Calibration and Adjustment
Visually inspect the tool for cracks, sharp edges, or imperfections, ensuring the nest area is free of burrs or dents. Check handle spread: with the die in place, lay the tool flat, open handle A, and let it close. The ram should touch the die, and grip distance should be 11-14 inches. If outside this range, loosen the lockscrew, adjust the screw (clockwise to increase, counter-clockwise to decrease), then retighten and recheck. Finally, perform gaging: squeeze handles closed, insert a gage pin into the nest with minimal pressure, and confirm it falls within the min-max limits from the gaging table for your specific die.
