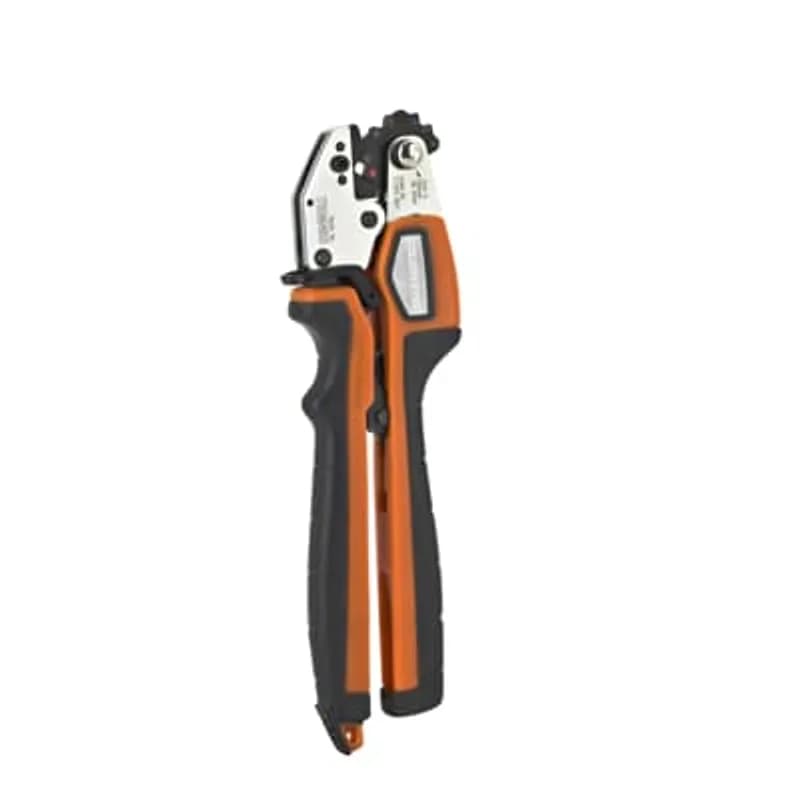

ABB Installation Products TBM41E Ratcheting Compression Crimp Tool - 5 Nested Indexing Die with Die Code Embossing…
UPC: 786209932273
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Ratcheting compression crimp tool for reliable connections
- 5 nested indexing dies with die code embossing
- Installs copper lugs, splices, C-taps, and pigtails
- Suitable for copper wire ranges #8 AWG to #2 AWG
- Accommodates aluminum wire ranges #10 AWG to #6 AWG
Specifications
Handle Color | Black;Orange |
Handle Type | Palm Grip |
Overall Length | 10.46 in |
Overall Length | 265.684 mm |
Type | Ratcheting Compression Crimp Tool |
Wire Size | 8-2 AWG CU , 10-6 AWG AL |
Package Dimensions (L x W x H) | 7.08 IN x 1.57 IN x 14.17 IN |
Package Dimensions (L x W x H) | 17.9832 cm x 3.9878 cm x 35.9918 cm |
Package Weight (Imperial) | 1.7800 L |
Package Weight (Metric) | 0.8070 kg |
TBM840
Crimping Tool - Connector Range #8 - 4/0 AWG Copper Lugs and Splices, Convenient Rotating Color-Coded Dies
ODB
Manual Compression Tool with Fixed O and D Die, Straight Wooden Handles, Handle Length 21 inches, Weight 6.5 poundsODB3
Manual Compression Tool with Fixed O and D Die, Curved Wood Handles, Handle Length 21 inches, Weight 6.5 poundsODB1
Manual Compression Tool with Fixed O and D Die, Fiberglass Handles, Handle Length 21 inches, Weight 6.0 pounds
TBM45BB
Ergonomic Hand Crimp Tool - 5 Nested Indexing Die with Die Code Embossing, Installs Copper and Aluminum Lugs, Splices, C-Taps, and Pigtails, Wire Ranges #8-#2AWG CU, #10-#6AWG AL
Frequently Asked Questions
What wire gauges can the TBM41E crimp tool handle?
The ABB TBM41E can crimp copper conductors from #8 AWG to #2 AWG and aluminum conductors from #10 AWG to #6 AWG.
What types of electrical connectors does this crimp tool install?
This tool installs copper and aluminum lugs, splices, C-taps, and pigtails.
Does the TBM41E tool have a ratcheting mechanism?
Yes, the ABB TBM41E features a ratcheting mechanism for consistent crimping force.
What material is the ABB TBM41E crimp tool made from?
The ABB TBM41E crimp tool is constructed from metal for durability.
What is the benefit of die code embossing on this tool?
The die code embossing allows for easy identification of the installed die, aiding in quality control.
How to Crimp Electrical Terminals with the TBM41E Compression Tool
This guide provides step-by-step instructions for safely and effectively using the TBM41E Comfort Crimp compression tool to install Color-Keyed® copper and aluminum lugs, splices, C-taps, and pigtails.
Tools needed:
TBM41E Comfort Crimp Compression Tool, Wire strippers, Gage pin (for calibration)
Supplies needed:
Color-Keyed® Copper or Aluminum Lugs, Splices, C-Taps, or Pigtails, Electrical wire (stripped)
- Prepare Tool and Observe Safety
Fully open the tool handles. Depress the wheel release button and rotate the die wheel to select the proper die nest for your terminal. Release the button to lock the wheel into position. WARNING: The handles are non-insulating; never crimp on hot energized wires. Keep all body parts away from the die nest during gaging or crimping procedures.
- Position Terminal and Wire
Insert the Color-Keyed® lug or terminal into the selected die nest. Close the tool handles slightly to gently secure the terminal without deforming it. Insert the stripped end of your electrical wire fully into the terminal barrel.
- Complete the Crimp
Close the tool handles firmly until the SHURE STAKE® mechanism cycle has been fully completed, indicating a proper crimp. For optimal connection, perform two equally spaced crimps on the terminal barrel. For larger wire and lug combinations requiring more force, place the Crimp Assist® Foot flat on a work surface to gain increased leverage during the crimping process.
- Verify Tool Gaging (Calibration)
To verify calibration, first wipe the die nest clean. Rotate the die wheel to the desired nest. Close the handles until the SHURE STAKE® mechanism just trips. Insert the appropriate gage pin into the nest; it should enter freely with minimal finger pressure and fall within the specified limits in Table 1 (e.g., RED .175-.187, BLUE .212-.224, GREY .265-.277, BROWN .324-.336, GREEN .406-.418). Perform this verification if damage is suspected or as operational conditions warrant.
