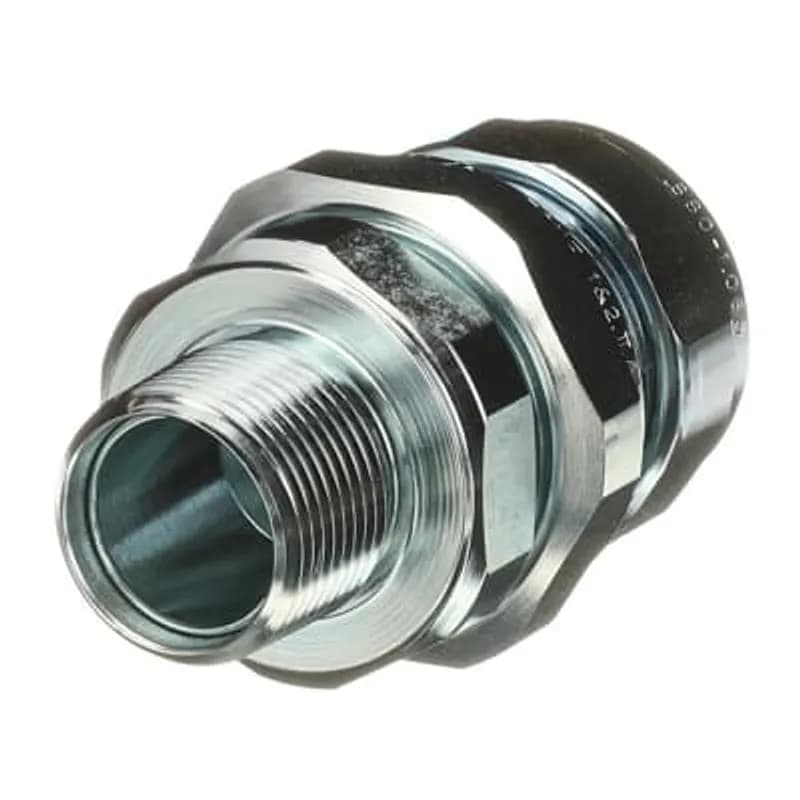

ABB Installation Products STX100-467S Star Teck hazardous location steel jacketed cable fitting. Hub size of 1 inch. Range…
UPC: 786210309521
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 1-inch NPT hub size for compatibility with standard armored and metal-clad cables
- Accommodates jacketed cables with outer diameters from 0.880 to 1.065 inches
- Integral sealing chamber eliminates need for cement sealants, reducing installation time by up to 40%
- Disconnectable design allows quick cable adjustments without removing fitting from enclosure
- Stainless steel retaining ring and Power-Grip grounding ring for corrosion-resistant, 360° grounding
- Tapered bushing ensures secure, watertight fit and eliminates cupping in vertical installations
- Low-profile gland nut with screwdriver and wrench flats for easy installation in tight spaces
- Compatible with ABB liquid and putty sealants for Class I, II, and III hazardous locations
- Meets NEC and IEC standards for moisture, dust, and explosion resistance
Specifications
Application | For Hazardous Locations |
Color | Red;Silver |
Material | Steel |
Size | 1 Inch |
Standard | CSA 23086 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.6000 L |
Package Weight (Metric) | 0.7260 kg |
CCOP250
One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.
STX125-469S
Star Teck hazardous location steel jacketed cable fitting. Hub size of 1-1/4 inch. Range over jacket from 1.187 - 1.375 inch.STX125-469
Star Teck hazardous location aluminum jacketed cable fitting. Hub size of 1-1/4 inch. Range over jacket from 1.187 - 1.375 inch.STX100-468S
Star Teck hazardous location steel jacketed cable fitting. Hub size of 1 inch. Range over jacket from 1.025 - 1.205 inch.STX150-471
Star Teck hazardous location aluminum jacketed cable fitting. Hub size of 1-1/2 inch. Range over jacket from 1.600 - 1.875 inch.Frequently Asked Questions
What is the hub size of the STX100-467S fitting?
The hub size is 1 inch, designed for standard threaded connections.
What cable jacket diameters does this fitting accommodate?
The fitting supports jacketed cables with outer diameters ranging from 0.880 to 1.065 inches.
What hazardous location classifications does this fitting support?
The fitting is UL-listed for Class I, II, and III, Division 1 and 2 hazardous locations.
Does this fitting require cement sealants?
No, the integral sealing chamber eliminates the need for cement sealants.
Is the STAR TECK XP fitting disconnectable?
Yes, the disconnectable design allows for quick cable adjustments without removing the fitting.
What industries commonly use the STAR TECK XP fitting?
The fitting is widely used in petrochemical, oil, and gas industries for hazardous locations.
What standards does this fitting comply with?
The fitting meets NEC and IEC standards for moisture, dust, and explosion resistance.
How to Install STX Series Star Teck Cable Fittings
This guide provides step-by-step instructions for preparing cables and installing STX Series Star Teck cable fittings, including the STX150-550 model, using liquid sealing compound. Installation must be performed by a qualified electrician in accordance with national and local electrical codes.
Estimated time: 2h
Tools needed:
Hacksaw, Wire strippers, Wrench, Damp cloth, Personal Protective Equipment (PPE)
Supplies needed:
Cable (power or shielded data), SC4-KIT-1 LIQUID SEALANT, Fiber damming material
- De-energize Circuits
WARNING: Verify that all circuits are de-energized before beginning any installation or maintenance procedures to prevent the risk of electrical shock.
- Prepare Cable Armor
Determine the required working length of conductors inside the enclosure. Remove a portion of the cable's outer jacket to expose the armor, then cut the armor using a hacksaw. CAUTION: Do not nick or cut the conductor insulation during this process.
- Adjust Armor Strip Length
Trim the outer jacket to achieve the exposed armor strip length specified in the product table for your specific STX model (e.g., 1.375-1.545 inches for STX150-550).
- Feed Cable
Feed the prepared cable through the gland nut opening and push it until the cable armor firmly contacts the internal end stop.
- Tighten Gland Nut
Securely tighten the gland nut to achieve an appropriate seal, or to the maximum torque specified in the table (e.g., 1200 IN-LBS for STX150-550). Ensure the bushing and collar ring seal evenly around the cable's outer jacket and are flush with the gland nut face, keeping the cable centered for an optimal seal.
- Disassemble Fitting
Loosen the union to disassemble the hub from the body sub-assembly. Then, unscrew the sealing chamber from the body sub-assembly.
- Prepare Conductors
Trim the inner jacket to a length of 1/8” to 3/8” to expose the conductor bundle. If working with shielded data cables, also remove the outer (overall) shield and any filler materials, taking care not to damage inner shields or conductors.
- Pack Fiber Damming Material
Tightly pack the fiber damming material into all voids between the conductors and the body. If applicable, spread the strands of any uninsulated grounding conductor.
- Reattach Sealing Chamber
Screw the sealing chamber back onto the body sub-assembly until it is completely seated.
- Mix and Dispense Liquid Sealant
Position the cable and fitting vertically. Mix the SC4-KIT-1 liquid sealing compound according to its package instructions. Dispense the compound into the end of the sealing chamber until the level stabilizes and fills to the top (for STX150-550).
- Clean Excess Compound
CAUTION: Immediately remove any excess compound material from the exterior of the sealing chamber using a damp cloth. Do not use abrasive cleaners such as powder cleaners, sandpaper, steel wool, or a wire brush, as these may damage the flame path.
- Mount Hub and Secure Assembly
Mount the hub in the desired location. After the sealing compound has solidified (approximately 1 hour), place the encapsulated assembly into the hub and secure it by tightening the union until it bottoms out (metal-to-metal contact).
