UPC: 783786753543
Documents & Media
Contact for Pricing
Overview

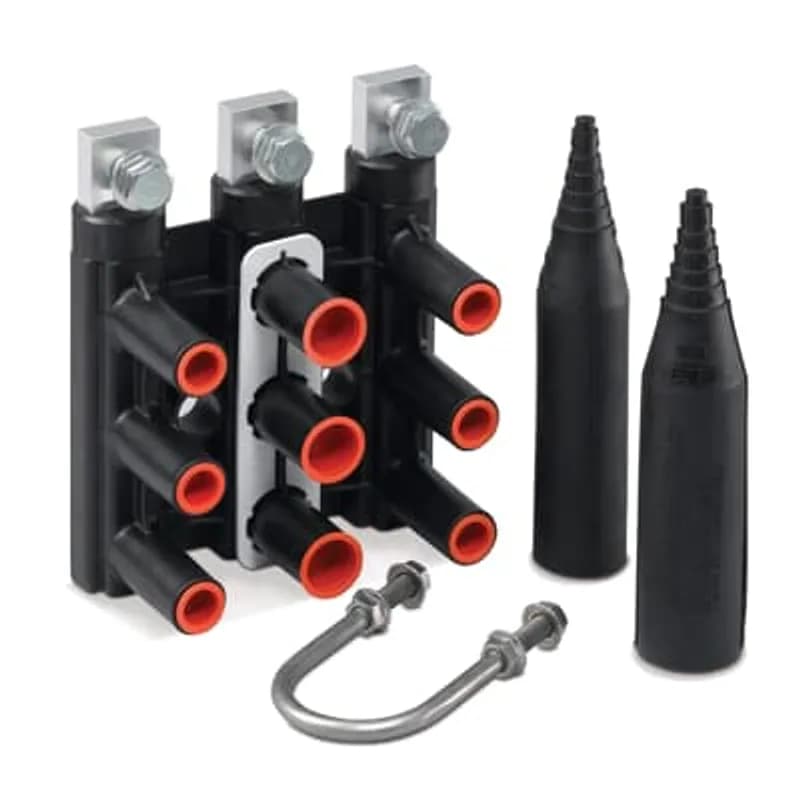

- Three-service base kit for comprehensive connections.
- Includes contact block and one U-bolt assembly.
- Features two Flood-Seal insulating rockets for superior environmental protection.
- Comes with three 1/2-13 bolts for secure assembly.
- Designed for safe and reliable service entrance installations.
Specifications
Application | Service Entrance Disconnects |
Connection | Compression |
Finish | Black |
Insulation | Yes |
Material | Santoprene Rockets |
Special Features | Crew Safety - The correction is made well below the high-voltage bushings, making it safer for crews to work during a storm outage. Downed-Line Safety - separates at the pole not the weatherhead. The line always comes down de-energized. Quick restoration of power. Simply replace the mechanical breakaway link and reinsert the contacts |
Standard | ANSI C119.4 |
Type | Storm-Safe Service Entrance Disconnect Pin Kits |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.7800 L |
Package Weight (Metric) | 1.7150 kg |
SS1-2-RNS4-500K-MS
Storm-Safe Breakaway Mid Span Service Entrance Kit, (3) SSM 2 Bi-Metal with Copper Pin, (2) SSS 2 Tin Plated Aluminum, (1) SSS 4 Tin Plated Aluminum. Breakaway Force 500 Pounds. Insulating Rockets: (2) CSN 2277 EPDM Rubber, (1) CS 2277 EPDM Rubber. Santoprene Caps (2) FSS 350 CAP without Liner. (1) Flex Bail Assembly SSFB 500. Silicone Grease and Instruction Sheet.
SSP 1/0 FN 500K
Storm-Safe Pin Kits, triplex block - 1/0,1/0,1/0 ACSR, neutral assembly - full neutral, breakaway force - 500 Pound Break ForceSSP 4 RN 750K
Storm-Safe Pin Kits, triplex block - 4,4,6, neutral assembly - reduced neutral, breakaway force - 750 Pound Break ForceSSP 4 FN 750K
Storm-Safe Pin Kits, triplex block - 4,4,4, neutral assembly - full neutral, breakaway force - 750 Pound Break ForceSSP 2 FN 750K
Storm-Safe Pin Kits, triplex block - 2,2,2, neutral assembly - full neutral, breakaway force - 750 Pound Break ForceSSP 4 FN 500K
Storm-Safe Pin Kits, triplex block - 4,4,4, neutral assembly - full neutral, breakaway force - 500 Pound Break Force
Z4045USLCW/EZ5912-7
Aluminum Universal Quick Disconnect Transformer Connectors - Z-USL Series, cable range 6-500, length 6-13/16 inch, height 2-7/8 inch, stud type 5/8 & 1, outlets 8, with Oxide Inhibitor with EZ 5912-7 Clear PVC Insulating BootFrequently Asked Questions
What is the primary benefit of the Storm-Safe system?
Lines come down de-energized, avoiding safety hazards and preventing damage to customer premises. Service restoration is quick by replacing the breakaway link and plugging it in.
What components are included in the SS3 K base kit?
The SS3 K three-service base kit includes one contact block, one U-bolt, two Flood-Seal insulating rockets, and three bolts.
Where are Storm-Safe disconnects assembled and shipped from?
Blackburn Storm-Safe service entrance disconnects are assembled and shipped from Ormond Beach, Florida.
What breakaway force options are available for SSL link kits?
SSL link kits are available with breakaway forces of either 500 lbs or 750 lbs.
What does an SSP pin kit include?
An SSP pin kit consists of two pin terminals, one neutral pin terminal, one SSL link kit (breakaway link and bail), and two Flood-Seal insulating rockets.
What additional kits are required for the SS3 K?
The SS3 K three-service base kit requires three SSP pin kits for complete installation.
What is the SS3 K product?
The SS3 K is a three-service base kit for multi-service breakaway service entrance applications.
What is the purpose of the O-ring and Flood-Seal rockets?
The internal O-ring prevents moisture into the contact, while the external Flood-Seal insulating rockets seal the entire system from the elements.
What specifications does the Storm-Safe system meet?
The Storm-Safe service entrance breakaway disconnect system meets ANSI C119.4-2004 specifications.
What conductors are compatible with Storm-Safe disconnects?
The Storm-Safe system is dual rated for use with both aluminum and copper conductors.
How to Install the Service Entrance Disconnect System (SSP Series)
This guide provides step-by-step instructions for installing the Service Entrance Disconnect System Multiple Service Kit (SSP Series). It covers initial power disconnection, mounting, wiring, and reconnection. Always follow standard safety practices, wear appropriate insulated gloves, and adhere to all electrical codes.
Estimated time: 1h 30m
Tools needed:
Approved safety cutting device, Appropriate crimping tool with listed dies (e.g., 5/8 die), Wire strippers, Torque wrench (calibrated for 480 in-lb), Insulated gloves rated to appropriate voltage
Supplies needed:
U-Bolt (included with kit), Breakaway link, CS 2011 Flood-Seal® Insulating rockets, Silicone grease, Compression lugs, CS 2277 Flood-Seal® insulating rockets, Pin Connectors, Replacement service cables (if needed)
- Disconnect Power and Secure Service Drop
Disconnect the power cables from the transformer or feed. Secure the service drop to prevent accidental re-energization. Ensure all circuits are de-energized before proceeding.
- Install Breakaway Link
Open the neutral wedge clamp. Install the breakaway link between the wedge clamp and the pole hardware. Tighten the service drop as required to ensure a secure connection.
- Mount the Contact Block
Install the contact block to the eyebolt using the included U-Bolt. Tighten the nuts from the pole side of the contact block to firmly secure it in place.
- Prepare Service Cables
Cut the service cables from the transformer or feed. If the existing cables are not large enough for multiple loads, replace them with the proper size. Ensure the feed cables have sufficient slack when held alongside the pads to allow the contact block to swing freely.
- Prepare Hot Legs and Crimp Lugs
Using an approved safety cutting device, cut two CS 2011 Flood-Seal® Insulating rockets at the appropriate ring. Install these rockets onto the two hot legs. Apply silicone grease to the cables to ease the installation of the rockets. Crimp appropriately sized compression lugs onto the three cables using an appropriate crimping tool and listed dies.
- Terminate Neutral and Hot Legs
Terminate the neutral lug onto the center pad of the contact block first, ensuring the barrel is correctly positioned over the pad. Torque this connection to 480 in-lb. Next, install one of the hot (energized) legs as per the neutral leg, sliding the Flood-Seal® insulating rocket over the connection. Repeat this process for the other hot leg. Remember to wear insulated gloves rated to the appropriate voltage when working on energized circuits.
- Position Load-Side Triplex Service Cable
Position the load-side triplex service cable alongside the Storm-Safe® contact block. Ensure that the neutral conductor is 6 to 12 inches longer than the phase conductors. This length difference is critical to ensure the neutral pulls out last in the event of a storm.
- Prepare Load-Side Insulating Rockets
Using an approved safety cutting device, cut two CS 2277 Flood-Seal® insulating rockets at the appropriate ring. Install these rockets onto the two load-side hot conductors.
- Prepare Load-Side Pin Connectors
Position the load-side cables alongside the pin connectors and mark them at 1/8 inch beyond the knurl mark. Mark and strip the cable. If a reduced neutral is present, determine which is the neutral socket. Crimp the Pin Connectors onto the conductors using a 5/8 or equivalent die as indicated on the crimp body. Fill the crimp body between the knurl marks with crimps spaced 1/8 inch apart (typically five crimps with a 5/8 die).
- Insert Neutral Pin
Insert the Neutral Pin into the contact block. The neutral is located in the center row and is identified with a white marker. Note that the neutral body is oversized and cannot be inserted into a hot leg tower.
- Insert Hot Leg Pins and Insulating Rockets
Insert one of the hot leg pins into one of the outer contact block towers. Slide the Flood-Seal® insulating rockets over the towers. Do not use silicone grease for these rockets. Repeat this process for the other hot leg service. Remember that a rocket is not required for the Neutral leg.
- Reconnect Transformer or Feed
Once all connections are secure and verified, reconnect the transformer or feed to restore power to the system. Ensure the connection is made when the contact block is energized but not under load.
