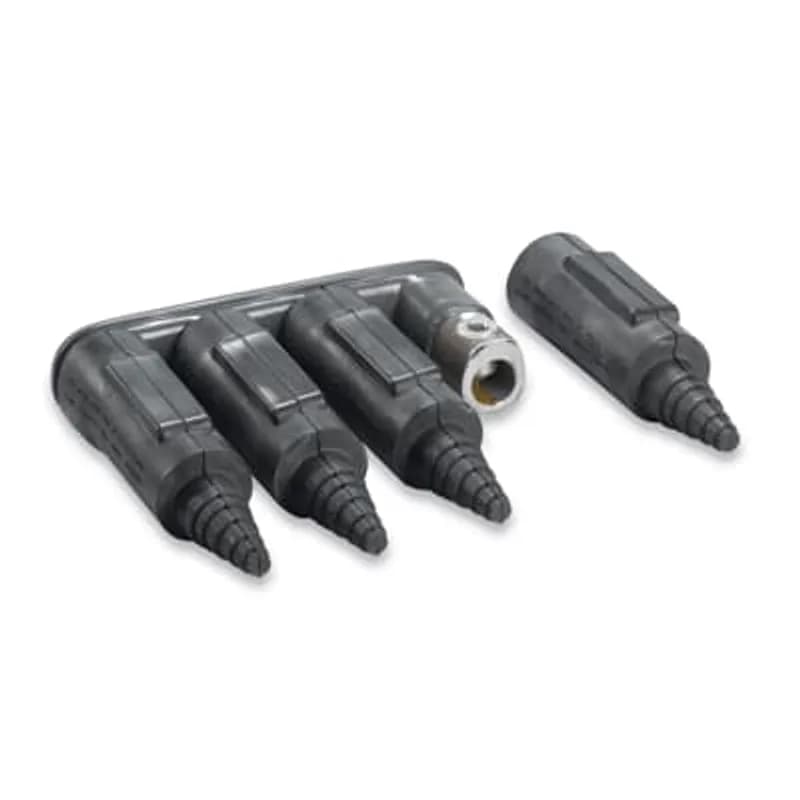

ABB Installation Products SHC 500-8 Aluminum Flood-Seal Mechanical Connectors-Mechanical 500 kcmil connectors, dual rated…
UPC: 783786752027
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Dual-rated for 2-500 kcmil copper and aluminum conductors
- 8 outlets for branch circuit connections
- 17-3/8" length with PVC insulation for dielectric protection
- Compatible with power distribution panels, motor control centers, and industrial machinery
Specifications
Application | Flood Seal Mechanical 500 kcmil Connector |
Color | Black |
Conductor Range | #2 to 500 kcmil |
Connection | Mechanical |
Insulation | yes |
Material | Aluminum Connector |
Number of Conductors | 8 |
Size | length 17-3/8 inch |
Special Features | Aluminum-alloy connector construction for High Strength and High Conductivity, Dual-rated for use with Copper or Aluminum Cables. All Connectors are 100 percent Hi-Pot tested at 4000 volts for 60 seconds |
Standard | ANSI C119.1 and C119.4 |
Type | Flood Seal Mechanical Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 6.5600 L |
Package Weight (Metric) | 2.9760 kg |
UH 500-2 R
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 500 kcmil series - wire range 2-500 kcmil, length 3-7/8 inch, height 4-3/4 inch, outlets 2 with 2-Holes each. Black PVC Coating.
SHC 8
Aluminum Flood-Seal Mechanical Connectors with Streetlight option, dual rated, PVC Insulated, cable range feeder outlet S/L 6-350, outlets 8, length 14-1/2 in
ZVW 5033-1 SL
Aluminum Universal Quick Disconnect Transformer Connectors - ZVW-1 SL Series, cable range 12-350, length 5-3/4 in, stud type 1, outlets 8
ZBT 1013-48
Aluminum Transformer Spade Connectors - ZBT Series, Single Row Mounting Holes, cable range 12-350, length 32/32 in, mounting holes 1, outlets 2ZBT 2023-48
Aluminum Transformer Spade Connectors - ZBT Series, Single Row Mounting Holes, cable range 12-350, length 2 in, mounting holes 1, outlets 4
ZBT 3033
Zeebar Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum-Copper, Bolt 1/2 inch. Six Conductor. 4-7/8 inch X 2-7/32 inch X 3 inch
ABS 4750
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 1/0-750, length 7-3/8 inch, Uses boot no. SB 2120, stud size 1, outlets 4ABS 5500
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-500, length 6-13/16 inch, Uses boot no. SB 2120, stud size 1, outlets 5Frequently Asked Questions
How many outlets does the SHC 500-8 have?
The SHC 500-8 has 8 outlets for branch circuit connections.
What is the length of the SHC 500-8?
The SHC 500-8 has a length of 17-3/8 inches.
What cable sizes does the SHC 500-8 support?
The SHC 500-8 supports a cable range feeder outlet S/L from 2 to 500 kcmil.
What type of insulation does the SHC 500-8 use?
The SHC 500-8 uses PVC insulation for dielectric and environmental protection.
Is the SHC 500-8 dual-rated?
Yes, the SHC 500-8 is dual-rated for both aluminum and copper conductors.
Is the SHC 500-8 flood-seal?
Yes, the SHC 500-8 features a flood-seal design for moisture and corrosion resistance.
How to Install Sweetheart SHC 500 Connectors
This guide provides step-by-step instructions for the proper installation of Sweetheart SHC 500 Connectors. It covers cable preparation, conductor insertion, and final tightening procedures. Always ensure installation is performed by trained personnel in accordance with all applicable electrical codes and safety rules.
Estimated time: 30m
Tools needed:
Wire brush, Cutting tool, Screwdriver, Torque wrench
Supplies needed:
Sweetheart SHC 500 Connectors, Electrical cable, Silicone grease
- Prepare the Rocket Sleeve
Remove the insulating sleeve from the outlet. Select the correct cut-off ring for the cable size you are using. Cut off the rocket sleeve at the tip of the arrow, ensuring the correct cable size is visible on the opened rocket.
- Strip the Cable Insulation
Strip approximately 2-1/4 inches of insulation from the cable end to expose the conductor.
- Bevel the Insulation (Optional)
For a cleaner fit, bevel the cut edge of the cable insulation. This step is preferred but not strictly necessary.
- Clean the Conductor
Thoroughly wire brush the bare conductor to break up and remove oxides from its surface.
- Lubricate and Position Rocket
Wipe the cable clean. Apply silicone grease to the prepared cable. Then, slide the cut rocket over the prepared cable.
- Insert Conductor
Insert the cleaned conductor into the outlet, ensuring that a maximum of 1/8 inch of bare conductor is showing.
- Seat the Rocket Sleeve
Slide the rocket sleeve over the outlet and onto the PVC shoulder until the rocket firmly butts against the connector bar.
- Secure with Set Screws
Tighten the set screws down onto the conductors to the recommended torque specifications based on wire size: #6 to #4 at 120 in.-lbs. (10 ft.-lbs.), #2 to 350 MCM at 240 in.-lbs. (20 ft.-lbs.), and 400 to 500 MCM at 360 in.-lbs. (30 ft.-lbs.).
