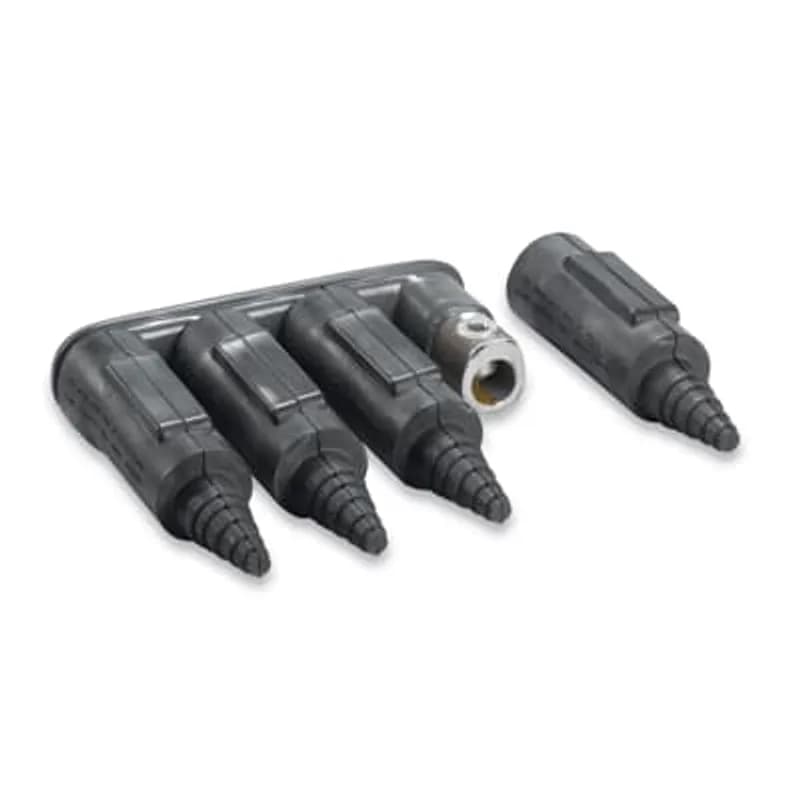

ABB Installation Products SHC 500-4 Aluminum Flood-Seal Mechanical Connectors-Mechanical 500 kcmil connectors, dual rated…
UPC: 783786751990
Documents & Media
Contact for Pricing
Minimum Qty: 36
Multiplier: 36
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Dual-rated aluminum mechanical connector for 500 kcmil conductors
- Four outlets for versatile feeder outlet configurations
- Flood-Seal technology protects against environmental ingress
- Overall length: 8-3/8 inches for standard enclosure fit
- PVC insulated outlets for enhanced electrical safety
Specifications
Application | Flood Seal Mechanical 500 kcmil Connector |
Color | Black |
Conductor Range | #2 to 500 kcmil |
Connection | Mechanical |
Insulation | yes |
Material | Aluminum Connector |
Number of Conductors | 4 |
Size | length 8-3/8 inch |
Special Features | Aluminum-alloy connector construction for High Strength and High Conductivity, Dual-rated for use with Copper or Aluminum Cables. All Connectors are 100 percent Hi-Pot tested at 4000 volts for 60 seconds |
Standard | ANSI C119.1 and C119.4 |
Type | Flood Seal Mechanical Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.1000 L |
Package Weight (Metric) | 1.4060 kg |

UH 500-2 R
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 500 kcmil series - wire range 2-500 kcmil, length 3-7/8 inch, height 4-3/4 inch, outlets 2 with 2-Holes each. Black PVC Coating.
ABN 640
Aluminum Transformer Spade Connectors - ABN Series, cable range 6-250, length 7-7/8 inch, uses boot no. SB 11, outlets 6
UH 1000-33 R
SweetHeart Multiport Bus connector, #2-1000 kcmil, Aluminum Connector with Black PVC Coating, 6 Conductors/Towers (3 per side) with 2-Holes each, Includes (12) Screws, (6) Insulating Rockets and Silicone Grease Packets. 7-7/64 inch wide x 10-1/2 inch tall.
FTU 1-3 N
Aluminum Flood Seal 125 Series Screw-on Transformer Connectors, length 6-5/8 inch, stud size 1 inch, height 5-5/8 inch, outlets 3. Bolt Holes per outlet is 2.
FSN 5-125
Aluminum Flood-Seal 125 Series Connectors - one-way configuration, two-bolt design with 1.75 inch Center to Center spacing, width 9.125 inch, Length 4.625 inch, Outlets 5, Santoprene/EPDM Rubber Coating, includes Screws.
ABK 4600 DS
Aluminum Lay-In Transformer Spade Connectors - ABK Series, cable range 2-600, length 6 in, height 6, mount holes 4, outlets 4
ABK 661000
Aluminum Lay-In Transformer Spade Connectors - ABK 1000 series, back to back, conductor range 1/0-1000, outlets 12
ABN 4350
Aluminum Transformer Spade Connectors - ABN Series, cable range 12-350, length 6-3/4 inch, uses boot no. SB 11, outlets 4How to Install Sweetheart SHC 500 Connectors
This guide provides step-by-step instructions for the proper installation of Sweetheart SHC 500 Connectors, including cable preparation, conductor insertion, and torque specifications. WARNING: Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules.
Estimated time: 20m
Tools needed:
Wire strippers, Wire brush, Torque wrench, Cutting tool
Supplies needed:
Sweetheart SHC 500 Connectors, Electrical cable, Silicone grease
- Prepare the Connector Rocket Sleeve
Remove the insulating sleeve from the connector outlet. Select the appropriate cut-off ring for your cable size. Cut off the rocket sleeve at the arrow tip, ensuring the correct cable size is visible on the opened rocket.
- Prepare the Cable Conductor
Strip approximately 2-1/4 inches of insulation from the cable end, exposing the conductor. Bevel the cut edge of the insulation if preferred. Thoroughly wire brush the bare conductor to remove oxides from its surface.
- Apply Grease and Position Rocket
Wipe the prepared cable clean. Apply silicone grease to the bare conductor. Slide the cut rocket sleeve over the prepared cable.
- Insert Conductor into Outlet
Insert the prepared conductor into the connector outlet. Ensure that a maximum of 1/8 inch of bare conductor is showing.
- Secure Rocket Sleeve
Slide the rocket sleeve over the outlet and onto the PVC shoulder. Continue sliding until the rocket firmly butts against the connector bar.
- Tighten Set Screws to Torque
Tighten the set screws onto the conductors using a torque wrench. Apply the recommended torque based on wire size: #6 to #4 (120 in.-lbs. or 10 ft.-lbs.), #2 to 350 MCM (240 in.-lbs. or 20 ft.-lbs.), and 400 to 500 MCM (360 in.-lbs. or 30 ft.-lbs.).
