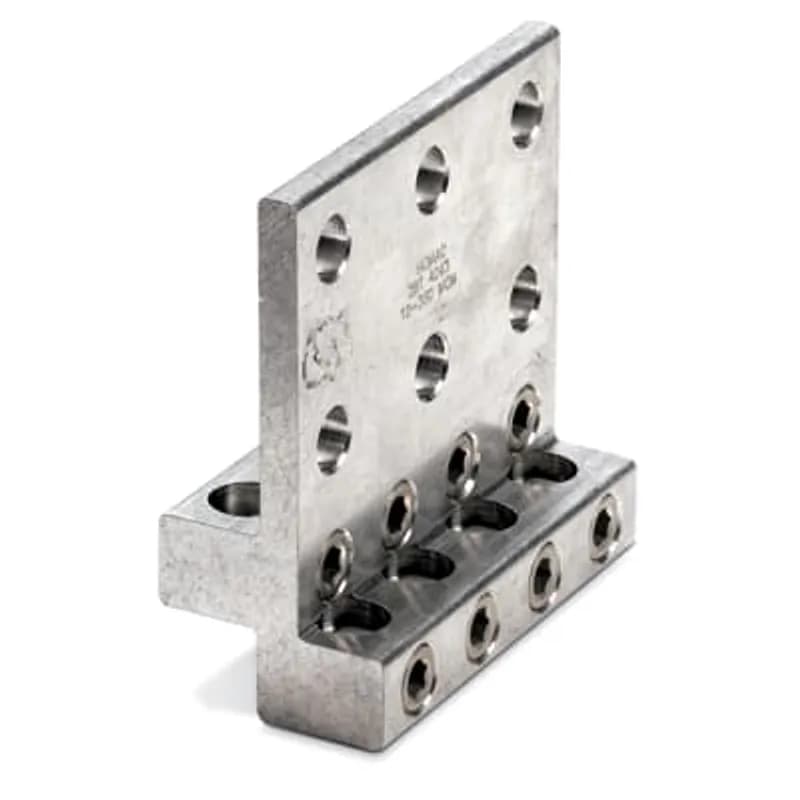

ABB - Installation Products ZBT 3033 - Zeebar Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum-Copper, Bolt 1/2 inch. Six Conductor. 4-7/8 inch X 2-7/32 inch X 3 inch

ABB Installation Products ZBT 3033 Zeebar Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum-Copper, Bolt 1/2 inch.…

UPC: 783786760473


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ZBT 3033 Zeebar Aluminum Transformer Connector is engineered for reliable electrical connections between aluminum and copper conductors. This six-conductor connector is designed to accommodate wire sizes ranging from #12 AWG to 350 kcmil, providing a versatile solution for transformer applications. It features a robust 1/2 inch bolt for secure fastening, ensuring a stable electrical path. The physical dimensions of the ZBT 3033 are 4-7/8 inches in length, 2-7/32 inches in width, and 3 inches in height. This connector is part of ABB's Installation Products catalog, known for its dependable electrical components. Its construction facilitates efficient and safe termination in electrical distribution systems where aluminum and copper conductors must be joined. The UNSPSC code for this product is 39121443, categorizing it under electrical connectors. The Zeebar design offers a practical and effective method for joining dissimilar conductor materials in transformer installations, contributing to the integrity of the electrical circuit.
  • Accommodates #12 - 350 kcmil conductors
  • Suitable for Aluminum-Copper connections
  • Features a 1/2 inch bolt for secure fastening
  • Six-conductor configuration
  • Dimensions: 4-7/8" L x 2-7/32" W x 3" H

Specifications

Application
Transformer Connector
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Insulation
False
Material
Aluminum
Number of Conductors
6
Size
350 inch
Special Features
Compact Zeebar design halves cantilever stress and doubles cable capacity. Dual Rated to accept Copper or Aluminum conductors. High strength Alluminum alloy maximizes electrical and mechanical performance. Ball-Bottom screws ensure maximun conductor contact pressure and break up interstrand oxides
Standard
ANSI C119.4
Type
Transformer Spade Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.8000 L
Package Weight (Metric)
0.3630 kg
