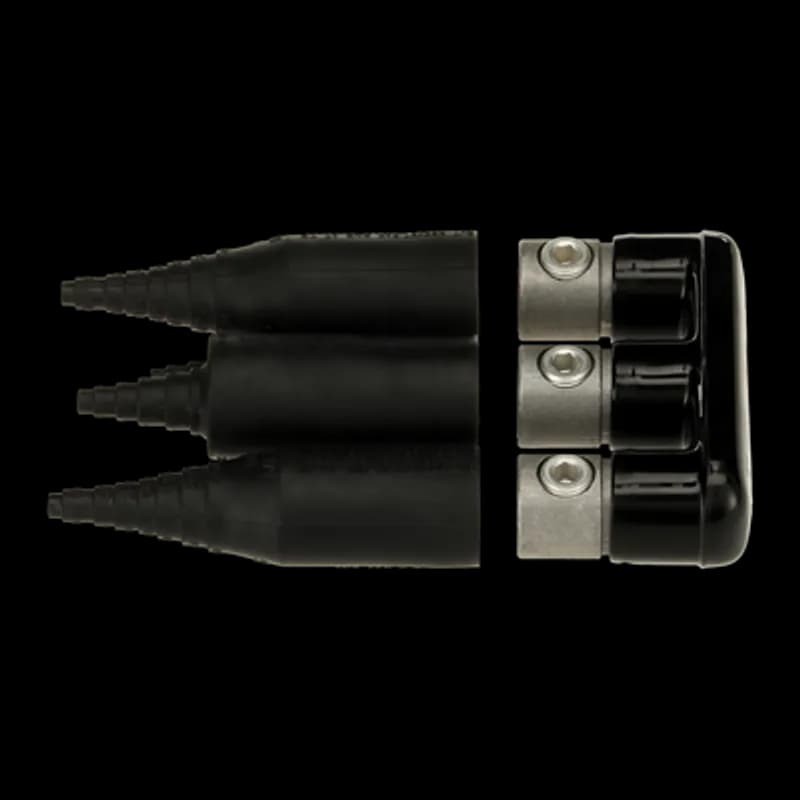

ABB - Installation Products SHC 3 MRS - Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC Insulated - 1/8 inch thick. Cable Range Feeder Outlet S/L #6 to 350 kcmil, 3 Outlets, Length 5 inch. Includes Two Insulating Sleeves and One StreetLight Cover - MRS350SL, Three Screws 11/16-16 x 53/64 inch and Packet of Silicone Grease.
More images

ABB Installation Products SHC 3 MRS Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC…

UPC: 075114405645


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB SHC 3 MRS is a flood-seal, mechanical connector designed for secure, insulated cable connections in outdoor and industrial applications. This aluminum connector supports cable ranges from #6 to 350 kcmil with three outlets, providing a robust solution for feeder and streetlight circuits. The 5-inch length ensures adequate spacing for proper installation and heat dissipation. The connector includes two insulating sleeves and one streetlight cover, along with three 11/16-16 x 53/64 inch screws and a packet of silicone grease for enhanced performance and corrosion resistance. Dual-rated for feeder and streetlight applications, this connector is ideal for utility, municipal, and industrial installations where reliability and weather resistance are critical. The 1/8-inch thick aluminum housing provides durability while maintaining electrical integrity. Compatible with standard mechanical connector practices, the SHC 3 MRS simplifies installation with included hardware and accessories. This product is part of ABB's Installation Products line, ensuring compatibility with industry-standard systems.
  • Flood-seal mechanical connector for secure, insulated cable connections
  • Supports cable range from #6 to 350 kcmil with three outlets
  • 5-inch length for proper installation and heat dissipation
  • Includes two insulating sleeves, one streetlight cover, three screws, and silicone grease
  • Dual-rated for feeder and streetlight applications

Specifications

Application
Flood-Seal Mechanical Connector
Color
Black
Conductor Range
#6 to 350 kcmil
Connection
Mechanical
Insulation
PVC
Material
Aluminum
Number Of Conductors
3
Size
5 in
Special Features
Supplied with Insulating Rockets and prefilled with Oxide Inhibitor
Standard
ANSI C119.1 and C119.4
Type
Flood Seal Mechanical Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.3500 L
Package Weight (Metric)
0.6120 kg
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5

UH 5 R

Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5
Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC Insulated - 1/8 inch thick. Cable Range Feeder Outlet S/L #6 to 350 kcmil, 4 Outlets, Length 6-3/4 inch. Includes Three Insulating Sleeves and One StreetLight Cover - MRS350SL, Four Screws 11/16-16 x 53/64 inch and Packet of Silicone Grease.

SHC 4 MRS

Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC Insulated - 1/8 inch thick. Cable Range Feeder Outlet S/L #6 to 350 kcmil, 4 Outlets, Length 6-3/4 inch. Includes Three Insulating Sleeves and One StreetLight Cover - MRS350SL, Four Screws 11/16-16 x 53/64 inch and Packet of Silicone Grease.
Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC Insulated. Cable Range Feeder Outlet S/L #6 to 350 kcmil, 6 Outlets, Length 10-3/4 inch. Includes Five Insulating Sleeves and One StreetLight Cover - MRS350SL, Six Screws 11/16-16 x 53/64 inch and Packet of Silicone Grease.

SHC 6 MRS

Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC Insulated. Cable Range Feeder Outlet S/L #6 to 350 kcmil, 6 Outlets, Length 10-3/4 inch. Includes Five Insulating Sleeves and One StreetLight Cover - MRS350SL, Six Screws 11/16-16 x 53/64 inch and Packet of Silicone Grease.
Aluminum Keebar, Screw-on, Transformer Connector, Stud 1 Inch. 5-1/2 inch long x 2-53/64 inch tall. Stainless Steel Hardware includes (8) 1/2 inch Belleville Washers, (8) 1/2 inch Flat Washers, (8) 1/2-13 Nuts, (4) Studs. Cap and Grease. Pad is 5-1/2 inch long x 1-1/4 inch x 1/2 inch thick and has four holes tapped 1/2-13 UNC-2B on 1-3/8 inch centers.

SKB 1-4

Aluminum Keebar, Screw-on, Transformer Connector, Stud 1 Inch. 5-1/2 inch long x 2-53/64 inch tall. Stainless Steel Hardware includes (8) 1/2 inch Belleville Washers, (8) 1/2 inch Flat Washers, (8) 1/2-13 Nuts, (4) Studs. Cap and Grease. Pad is 5-1/2 inch long x 1-1/4 inch x 1/2 inch thick and has four holes tapped 1/2-13 UNC-2B on 1-3/8 inch centers.
Aluminum, ZeeBar, Outlets 4 Over 2, 5-1/8 Long x 2-7/8 Wide x 2-27/32 High. Wire Range #6 to 500 kcmil. 1 Inch Stud. Includes Hardware (Tin Plated Aluminum Screws - One 9/16-18 x 3/4 inch, Two 11/16-16 x 15/32 inch, Six 3/4-16 x 15/16 inch), Compound and Cap.

Z 4025-1 SL

Aluminum, ZeeBar, Outlets 4 Over 2, 5-1/8 Long x 2-7/8 Wide x 2-27/32 High. Wire Range #6 to 500 kcmil. 1 Inch Stud. Includes Hardware (Tin Plated Aluminum Screws - One 9/16-18 x 3/4 inch, Two 11/16-16 x 15/32 inch, Six 3/4-16 x 15/16 inch), Compound and Cap.
Zeebar Aluminum Bare Transformer Connector, Connector Wire Range #6 to 500 kcmil, Rated for Aluminum and Copper, 5/8 inch Stud, Eight Conductors with StreetLight Option. 5-9/16 inch long x 2-3/16 inch wide x 2-27/32 inch tall. Includes Eight Tin Plated Alumium Set Screws 3/4-16 UNF-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 11/16-16 UN-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 9/16-18 UNF-2A with 5/16 inch Hex. Streetlight Wire Range #14 to #2.

Z 3055-58 SL

Zeebar Aluminum Bare Transformer Connector, Connector Wire Range #6 to 500 kcmil, Rated for Aluminum and Copper, 5/8 inch Stud, Eight Conductors with StreetLight Option. 5-9/16 inch long x 2-3/16 inch wide x 2-27/32 inch tall. Includes Eight Tin Plated Alumium Set Screws 3/4-16 UNF-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 11/16-16 UN-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 9/16-18 UNF-2A with 5/16 inch Hex. Streetlight Wire Range #14 to #2.
Tin-Plated Aluminum Transformer Spade Adapter, L-Shaped, 8 inch x 7 inch. Two rows of (2) 9/16 inch Diameter holes on 4 inch end, and Two rows of (4) 9/16 inch Diameter holes on 7 inch side. All holes on 1-3/4 inch Centers.

TSC 4-8-3/4 TN

Tin-Plated Aluminum Transformer Spade Adapter, L-Shaped, 8 inch x 7 inch. Two rows of (2) 9/16 inch Diameter holes on 4 inch end, and Two rows of (4) 9/16 inch Diameter holes on 7 inch side. All holes on 1-3/4 inch Centers.
Keebar Aluminum Transformer Connector with Streetlight option, Stair Step design with four Outlets per step, Wire Range 1/0 - 750 kcmil, Stud Size 5/8 inch and 1 inch - pre-filled with Oxide Inhibitor and Capped. Length 7-5/16 inch, Height 3-3/32 inch , Depth 2-9/16 inch. Hardware includes (8) 7/8-14 x 1-1/32 inch Tin Plated Screws and (1) 9/16-18 x 3/4 inch Tin Plated Screws for StreetLight option.

ZS 4047 USLC

Keebar Aluminum Transformer Connector with Streetlight option, Stair Step design with four Outlets per step, Wire Range 1/0 - 750 kcmil, Stud Size 5/8 inch and 1 inch - pre-filled with Oxide Inhibitor and Capped. Length 7-5/16 inch, Height 3-3/32 inch , Depth 2-9/16 inch. Hardware includes (8) 7/8-14 x 1-1/32 inch Tin Plated Screws and (1) 9/16-18 x 3/4 inch Tin Plated Screws for StreetLight option.

How to Install Flood Seal® Mechanical Connector SHC 3 MRS

This guide details the installation process for the Flood Seal® Mechanical Connector SHC 3 MRS, covering cable preparation, conductor insertion, and proper tightening procedures to ensure a secure and reliable connection.

Estimated time: 30m

Tools needed:

Torque wrench (recommended), 5/16 inch allen wrench, 3/8 inch drive ratchet with allen adapter, Wire brush

Supplies needed:

Flood Seal® Mechanical Connector (MRS350SL or CS4197), Silicone grease, Compound, Feed cable, Service cable

  1. Disconnect Power and Prepare Connector

    WARNING: Risk of shock, disconnect power before installation. Identify the cable size being used and select the appropriate Flood Seal® Mechanical Connector (MRS350SL for feed cable, CS4197 for service cable). Cut the rocket/cap ring at the tip of the arrow to expose the correct wire range.

  2. Prepare Cable Insulation

    Strip approximately 2 1/4 inches of insulation from the cable conductor. Penciling the edge of the insulation is recommended but not required.

  3. Clean Cable and Apply Grease

    Wipe the stripped cable clean. Apply silicone grease to the cable and slide the cut rocket over the prepared cable.

  4. Brush Conductor and Apply Compound

    Thoroughly wire brush the bare conductor to remove surface oxides. Add compound and brush it into the conductor strands.

  5. Insert Conductor into Outlet

    Insert the prepared conductor into the connector outlet, ensuring a maximum of 1/8 inch of bare conductor is showing.

  6. Tighten Set Screws to Torque

    Using a torque wrench (recommended) or a 5/16 inch allen wrench/3/8 inch drive ratchet with an allen adapter, tighten the set screws on the conductor to the specified torque. For #12 to #2 wire, torque to 120 in-lbs (10 ft-lbs). For 1/0 to 350 Kcm wire, torque to 360 in-lbs (30 ft-lbs).

  7. Secure Rocket Sleeve

    Slide the rocket sleeve over the outlet and onto the PVC shoulder until it firmly butts against the connector bar.
