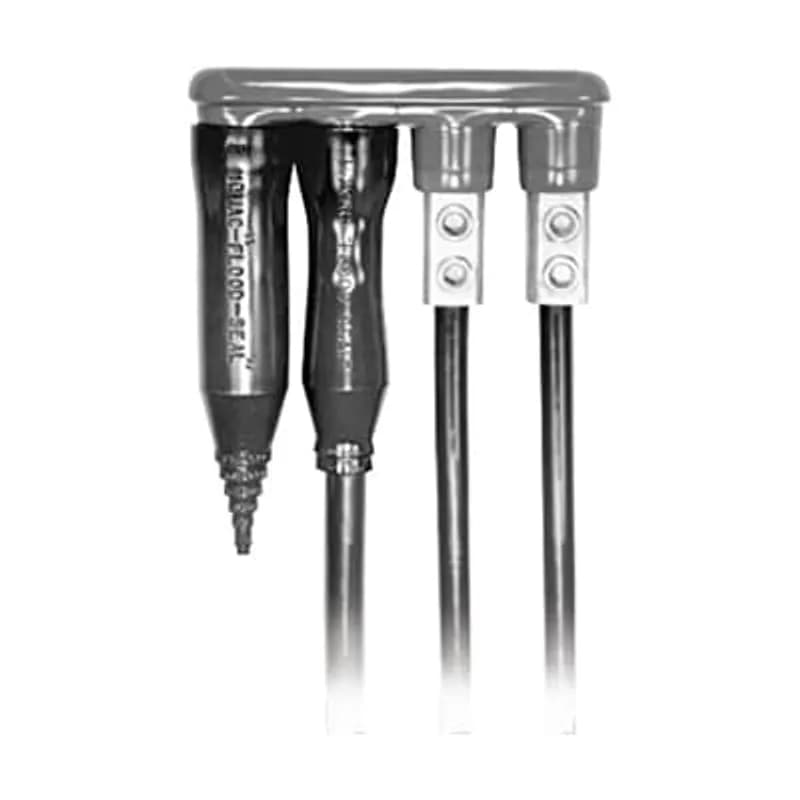

ABB - Installation Products UH 5 R - Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5

ABB Installation Products UH 5 R Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way…

UPC: 783786754908


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB UH 5 R is a robust mechanical connector designed for reliable electrical connections. Manufactured by ABB Installation Products, this model (SKU: UH 5 R) features a Flood-Seal design, ensuring protection against environmental ingress. It is constructed from durable aluminum, making it suitable for various industrial applications. This connector is specifically engineered for 350 kcmil series applications and offers one-way outlets. The cable range accommodated by the UH 5 R is from 6 to 350 kcmil, providing significant flexibility for different wire sizes. Its overall length measures 8-7/8 inches, and it is equipped with five outlets, allowing for multiple connections from a single point. The twin-screw mechanism ensures a secure and stable connection, crucial for maintaining electrical integrity and preventing power loss. Key specifications include: * **Manufacturer:** ABB - Installation Products * **SKU:** UH 5 R * **Material:** Aluminum * **Design:** Flood-Seal, Twin-Screw Mechanical Connector * **Application:** 350 kcmil series, one-way outlets * **Cable Range:** 6 - 350 kcmil * **Length:** 8-7/8 inches * **Outlets:** 5
  • Durable Aluminum Construction
  • Flood-Seal Design for Environmental Protection
  • Twin-Screw Mechanical Connection
  • Accommodates Cable Range 6-350 kcmil
  • 5 One-Way Outlets for 350 kcmil Series

Specifications

Application
Direct Burial or Above Ground Pedestal Installation
Color
Black
Conductor Range
#6 to 350 kcmil
Connection
Mechanical
Connection Type
Mechanical Connector
Insulation
True
Material
Aluminum
Number Of Conductors
5
Poles
5
Series
UH 5 R
Size
8-7/8 inch
Size
350 kcmil
Special Features
All Connectors are 100% Hi-Pot tested at 4000V for 60 seconds. Ensures that connectors are 100% watertight and molded correctly.For direct burial or above-ground pedestal installation. Flood-Seal Insulating rockets have been field tested in more than 10 million applications
Standard
ANSI C119.1 and C119.4
Type
Flood-Seal Multi-Port Connectors
Voltage Rating
600 V
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
3.2500 L
Package Weight (Metric)
1.4740 kg
