ABB - Installation Products SHC 6 MRS - Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC Insulated. Cable Range Feeder Outlet S/L #6 to 350 kcmil, 6 Outlets, Length 10-3/4 inch. Includes Five Insulating Sleeves and One StreetLight Cover - MRS350SL, Six Screws 11/16-16 x 53/64 inch and Packet of Silicone Grease.

ABB Installation Products SHC 6 MRS Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC…

UPC: 075114405669


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

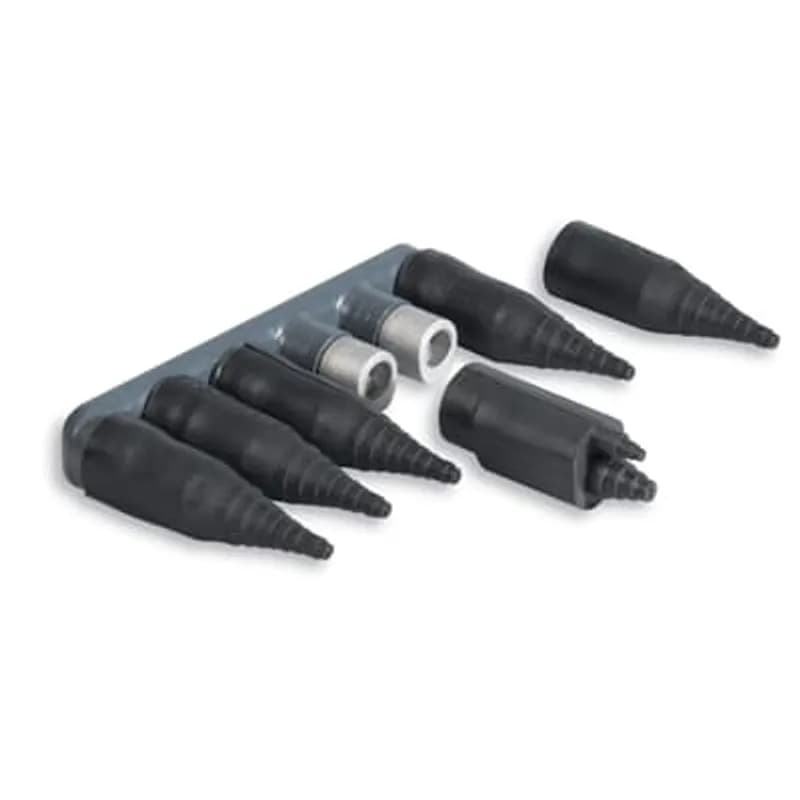

The ABB SHC 6 MRS is a 6-outlet Flood-Seal® mechanical connector engineered for secure, insulated cable connections in streetlight and feeder applications. The 10-3/4 inch length accommodates standard installation spacing while maintaining structural integrity. This dual-rated connector features PVC insulation rated for 600V, ensuring electrical safety and environmental resistance in outdoor and underground installations where moisture and temperature fluctuations are common. The Flood-Seal® design incorporates five insulating sleeves and one streetlight cover (MRS350SL) for proper insulation and environmental protection. Six 11/16-16 x 53/64 inch screws provide secure clamping, while a packet of silicone grease included in the package enhances long-term performance by preventing oxidation and corrosion at connection points. Ideal for URD direct burial, below-grade boxes, above-grade pedestals, and streetlight taps, the SHC 6 MRS is tested to 4000V for 60 seconds to ensure safety and performance. Operating temperature range spans from -40°F to 194°F (-40°C to 90°C), making it suitable for harsh environmental conditions. The compact 4.60" x 2.90" (117 mm x 74 mm) dimensions provide space-efficient installation without compromising functionality.
  • Flood-Seal® design with PVC insulation rated 600V
  • Includes 5 insulating sleeves, 1 streetlight cover (MRS350SL), and silicone grease packet
  • Tested to 4000V for 60 seconds; operating range -40°F to 194°F (-40°C to 90°C)
  • Compact 4.60" x 2.90" dimensions for space-efficient installation

Specifications

Application
Flood-Seal Mechanical Connector
Color
Black
Conductor Range
#6 to 350 kcmil
Connection
Mechanical
Connection Type
Mechanical Connector
Insulation
PVC
Material
Aluminum
Number of Conductors
6
Poles
6 Outlets
Series
SHC 6 MRS
Size
10-/2 in
Size
Cable Range Feeder Outlet S/L #6 to 350 kcmil
Special Features
Supplied with Insulating Rockets and prefilled with Oxide Inhibitor
Standard
ANSI C119.1 and C119.4
Type
Flood Seal Mechanical Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.7500 L
Package Weight (Metric)
1.2470 kg
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5

UH 5 R

Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5
Aluminum Keebar, Screw-on, Transformer Connector, Stud 1 Inch. 5-1/2 inch long x 2-53/64 inch tall. Stainless Steel Hardware includes (8) 1/2 inch Belleville Washers, (8) 1/2 inch Flat Washers, (8) 1/2-13 Nuts, (4) Studs. Cap and Grease. Pad is 5-1/2 inch long x 1-1/4 inch x 1/2 inch thick and has four holes tapped 1/2-13 UNC-2B on 1-3/8 inch centers.

SKB 1-4

Aluminum Keebar, Screw-on, Transformer Connector, Stud 1 Inch. 5-1/2 inch long x 2-53/64 inch tall. Stainless Steel Hardware includes (8) 1/2 inch Belleville Washers, (8) 1/2 inch Flat Washers, (8) 1/2-13 Nuts, (4) Studs. Cap and Grease. Pad is 5-1/2 inch long x 1-1/4 inch x 1/2 inch thick and has four holes tapped 1/2-13 UNC-2B on 1-3/8 inch centers.
Aluminum, ZeeBar, Outlets 4 Over 2, 5-1/8 Long x 2-7/8 Wide x 2-27/32 High. Wire Range #6 to 500 kcmil. 1 Inch Stud. Includes Hardware (Tin Plated Aluminum Screws - One 9/16-18 x 3/4 inch, Two 11/16-16 x 15/32 inch, Six 3/4-16 x 15/16 inch), Compound and Cap.

Z 4025-1 SL

Aluminum, ZeeBar, Outlets 4 Over 2, 5-1/8 Long x 2-7/8 Wide x 2-27/32 High. Wire Range #6 to 500 kcmil. 1 Inch Stud. Includes Hardware (Tin Plated Aluminum Screws - One 9/16-18 x 3/4 inch, Two 11/16-16 x 15/32 inch, Six 3/4-16 x 15/16 inch), Compound and Cap.
Zeebar Aluminum Bare Transformer Connector, Connector Wire Range #6 to 500 kcmil, Rated for Aluminum and Copper, 5/8 inch Stud, Eight Conductors with StreetLight Option. 5-9/16 inch long x 2-3/16 inch wide x 2-27/32 inch tall. Includes Eight Tin Plated Alumium Set Screws 3/4-16 UNF-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 11/16-16 UN-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 9/16-18 UNF-2A with 5/16 inch Hex. Streetlight Wire Range #14 to #2.

Z 3055-58 SL

Zeebar Aluminum Bare Transformer Connector, Connector Wire Range #6 to 500 kcmil, Rated for Aluminum and Copper, 5/8 inch Stud, Eight Conductors with StreetLight Option. 5-9/16 inch long x 2-3/16 inch wide x 2-27/32 inch tall. Includes Eight Tin Plated Alumium Set Screws 3/4-16 UNF-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 11/16-16 UN-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 9/16-18 UNF-2A with 5/16 inch Hex. Streetlight Wire Range #14 to #2.
Tin-Plated Aluminum Transformer Spade Adapter, L-Shaped, 8 inch x 7 inch. Two rows of (2) 9/16 inch Diameter holes on 4 inch end, and Two rows of (4) 9/16 inch Diameter holes on 7 inch side. All holes on 1-3/4 inch Centers.

TSC 4-8-3/4 TN

Tin-Plated Aluminum Transformer Spade Adapter, L-Shaped, 8 inch x 7 inch. Two rows of (2) 9/16 inch Diameter holes on 4 inch end, and Two rows of (4) 9/16 inch Diameter holes on 7 inch side. All holes on 1-3/4 inch Centers.
Keebar Aluminum Transformer Connector with Streetlight option, Stair Step design with four Outlets per step, Wire Range 1/0 - 750 kcmil, Stud Size 5/8 inch and 1 inch - pre-filled with Oxide Inhibitor and Capped. Length 7-5/16 inch, Height 3-3/32 inch , Depth 2-9/16 inch. Hardware includes (8) 7/8-14 x 1-1/32 inch Tin Plated Screws and (1) 9/16-18 x 3/4 inch Tin Plated Screws for StreetLight option.

ZS 4047 USLC

Keebar Aluminum Transformer Connector with Streetlight option, Stair Step design with four Outlets per step, Wire Range 1/0 - 750 kcmil, Stud Size 5/8 inch and 1 inch - pre-filled with Oxide Inhibitor and Capped. Length 7-5/16 inch, Height 3-3/32 inch , Depth 2-9/16 inch. Hardware includes (8) 7/8-14 x 1-1/32 inch Tin Plated Screws and (1) 9/16-18 x 3/4 inch Tin Plated Screws for StreetLight option.
Aluminum Transformer Spade Connector. Cable Range 1/0 to 1000 kcmil. Length 13-7/16 inch. Height 8-3/8 inch. Depth 3-5/8 inch. (16) Wire Positions - 8 per side with two Set-Screws per Outlet. (16) 9/16 inch Diameter Mounting Holes - Two Rows of 8 on 1-3/4 inch Centers. Hardware includes (32) 7/8-14 x 1-5/16 inch Tin Plated Aluminum Set Screws.

ZBT 8081

Aluminum Transformer Spade Connector. Cable Range 1/0 to 1000 kcmil. Length 13-7/16 inch. Height 8-3/8 inch. Depth 3-5/8 inch. (16) Wire Positions - 8 per side with two Set-Screws per Outlet. (16) 9/16 inch Diameter Mounting Holes - Two Rows of 8 on 1-3/4 inch Centers. Hardware includes (32) 7/8-14 x 1-5/16 inch Tin Plated Aluminum Set Screws.
Aluminum, Electrical Connector, Less Than 1000 Volts, ZBK Series Aluminum Lay-In Transformer Spade Connector. Wire Size 500 to 1000 kcmil Aluminum-Copper, 10 Conductor/Positions with SB Boot. Bolt 1/2 inch, EZ Keeper, ZEEBAR. Length 8-11/16 inch, Height 8-3/8 inch, Depth 3-5/8 inch. 10 Wire Positions - 5 per side - Tapped 1-3/16 inch which use 10 Keepers each with Two Holes - Tapped at 7/8-14 UNF-2B on 1-1/8 inch Centers. 10 Mounting Holes - 2 rows of 5 - 9/16 inch diameter. TS - uses Torque Screws. Black PVC Boot. Includes 20 Screws - Tapped 7/8-14 x 1-39/64 inch.

ZBK5051TSSB2163-2 V4

Aluminum, Electrical Connector, Less Than 1000 Volts, ZBK Series Aluminum Lay-In Transformer Spade Connector. Wire Size 500 to 1000 kcmil Aluminum-Copper, 10 Conductor/Positions with SB Boot. Bolt 1/2 inch, EZ Keeper, ZEEBAR. Length 8-11/16 inch, Height 8-3/8 inch, Depth 3-5/8 inch. 10 Wire Positions - 5 per side - Tapped 1-3/16 inch which use 10 Keepers each with Two Holes - Tapped at 7/8-14 UNF-2B on 1-1/8 inch Centers. 10 Mounting Holes - 2 rows of 5 - 9/16 inch diameter. TS - uses Torque Screws. Black PVC Boot. Includes 20 Screws - Tapped 7/8-14 x 1-39/64 inch.

How to Install Flood Seal Mechanical Connectors (SHC 3-8 MRS)

This guide provides step-by-step instructions for installing Flood Seal Mechanical Connectors (SHC 3 MRS - SHC 8 MRS) for both feed and service cables. Ensure power is disconnected before starting.

Estimated time: 30m

Tools needed:

Wire strippers, Wire brush, Torque wrench, 5/16 inch allen wrench, 3/8 inch drive ratchet with allen adapter

Supplies needed:

Flood Seal Mechanical Connector (MRS350SL or CS4197), Silicone grease, Conductor compound, Cleaning cloth

  1. Disconnect Power and Identify Cables

    WARNING: Disconnect all power to the circuit before beginning installation to prevent risk of electric shock. CAUTION: Product should be installed by a qualified electrician in accordance with national and local electrical codes. Identify the correct Flood Seal Mechanical Connector for your cable: use MRS350SL for feed cables and CS4197 for service cables.

  2. Prepare the Cable Conductor

    Strip approximately 2 1/4 inches of insulation from the cable, exposing the conductor. Penciling the insulation edge is recommended, but not required. Thoroughly wipe the cable clean.

  3. Apply Grease and Slide Rocket

    Apply silicone grease to the prepared cable. Slide the pre-cut rocket sleeve over the cable, positioning it away from the bare conductor for now.

  4. Clean and Treat Conductor

    Using a wire brush, thoroughly clean the bare conductor to remove surface oxides. Apply compound to the conductor and brush it into the strands.

  5. Insert Conductor into Outlet

    Carefully insert the prepared conductor into the connector's outlet. Ensure that a maximum of 1/8 inch of bare conductor is visible outside the outlet.

  6. Tighten Set Screws to Torque

    Tighten the set screws on the conductor to the specified torque: 120 in-lbs (10 ft-lbs) for #12 to #2 wire, and 360 in-lbs (30 ft-lbs) for 1/0 to 350 Kcm wire. Use a torque wrench for accuracy, or a 5/16 inch allen wrench or 3/8 inch drive ratchet with an allen adapter if a torque wrench is unavailable. Do not use a “T” handle wrench or 1/2 inch drive.

  7. Secure the Rocket Sleeve

    Slide the rocket sleeve over the connector outlet and onto the PVC shoulder. Continue sliding until the rocket firmly butts against the connector bar, ensuring a secure seal.
