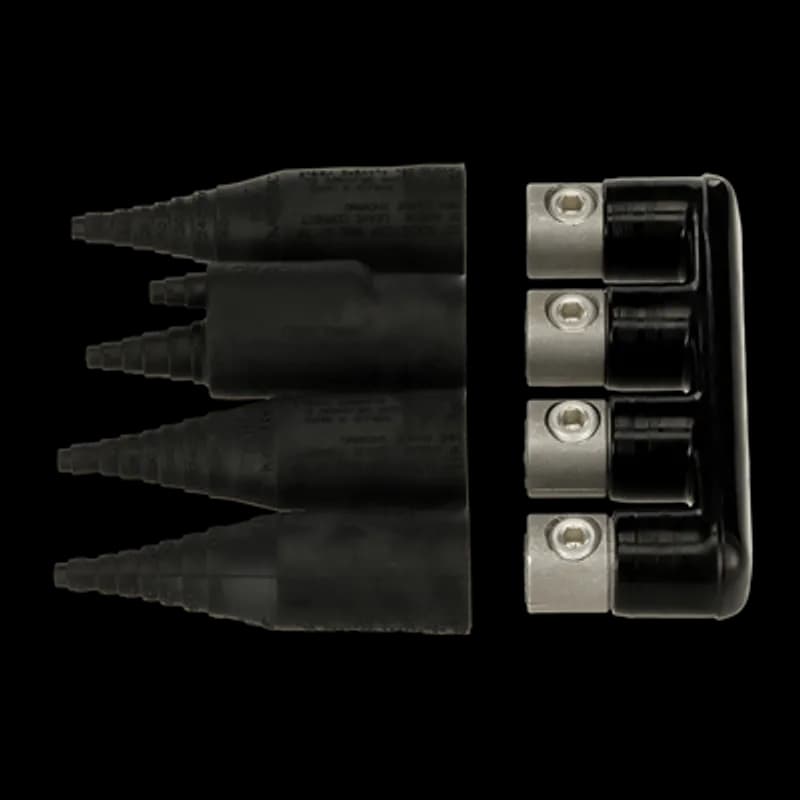

ABB - Installation Products SHC 4 MRS - Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC Insulated - 1/8 inch thick. Cable Range Feeder Outlet S/L #6 to 350 kcmil, 4 Outlets, Length 6-3/4 inch. Includes Three Insulating Sleeves and One StreetLight Cover - MRS350SL, Four Screws 11/16-16 x 53/64 inch and Packet of Silicone Grease.
More images

ABB Installation Products SHC 4 MRS Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC…

UPC: 075114405652


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SHC 4 MRS Flood-Seal Mechanical Connector is a high-strength, dual-rated aluminum connector designed for reliable electrical connections in industrial, utility, and streetlight applications. Manufactured by ABB - Installation Products, this connector features a durable 6061-T6 aluminum alloy bar with tin-plated screws and high-performance TPE compound insulation rated for 600V. The Flood-Seal design incorporates EPDM rubber rockets for watertight, corrosion-resistant connections, ideal for URD direct burial, below-grade boxes, above-grade pedestals, and streetlight taps. The PVC insulation is 1/8 inch thick, and the connector measures 4.60" x 2.90" (117 mm x 74 mm). The SHC 4 MRS comes pre-assembled with three insulating sleeves and one streetlight cover (MRS350SL), plus four 11/16-16 x 53/64 inch screws and a packet of silicone grease for installation. Torque specifications are 120 in./lbs. (10 ft.-lbs.) for #6 to #4 and 240 in./lbs. (20 ft.-lbs.) for #2 to 350 MCM. Operating temperature range is -40°F to 194°F (-40°C to 90°C), ensuring performance in extreme environments. The connector is 100% hi-pot tested at 4000V for 60 seconds for safety and reliability.
  • Dual-rated for feeder and streetlight applications
  • Flood-Seal EPDM rubber rockets for watertight, corrosion-resistant connections
  • Includes three insulating sleeves, streetlight cover (MRS350SL), screws, and silicone grease
  • Operating temperature: -40°F to 194°F (-40°C to 90°C)

Specifications

Application
Flood-Seal Mechanical Connector
Color
Black
Conductor Range
#6 to 350 kcmil
Connection
Mechanical
Insulation
PVC
Material
Aluminum
Number of Conductors
4
Size
6-3/4 in
Special Features
Supplied with Insulating Rockets and prefilled with Oxide Inhibitor
Standard
ANSI C119.1 and C119.4
Type
Flood Seal Mechanical Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.8000 L
Package Weight (Metric)
0.8170 kg
Aluminum Flood-Seal Mechanical Connectors with Streetlight option, dual rated, PVC insulated, cable range feeder outlet S/L 6-350, outlets 4, length 7 in

SHC 4

Aluminum Flood-Seal Mechanical Connectors with Streetlight option, dual rated, PVC insulated, cable range feeder outlet S/L 6-350, outlets 4, length 7 in
Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC Insulated. Cable Range Feeder Outlet S/L #6 to 350 kcmil, 6 Outlets, Length 10-3/4 inch. Includes Five Insulating Sleeves and One StreetLight Cover - MRS350SL, Six Screws 11/16-16 x 53/64 inch and Packet of Silicone Grease.

SHC 6 MRS

Aluminum Flood-Seal, Mechanical Connector with Streetlight Option, Dual Rated, PVC Insulated. Cable Range Feeder Outlet S/L #6 to 350 kcmil, 6 Outlets, Length 10-3/4 inch. Includes Five Insulating Sleeves and One StreetLight Cover - MRS350SL, Six Screws 11/16-16 x 53/64 inch and Packet of Silicone Grease.
Aluminum Keebar, Screw-on, Transformer Connector, Stud 1 Inch. 5-1/2 inch long x 2-53/64 inch tall. Stainless Steel Hardware includes (8) 1/2 inch Belleville Washers, (8) 1/2 inch Flat Washers, (8) 1/2-13 Nuts, (4) Studs. Cap and Grease. Pad is 5-1/2 inch long x 1-1/4 inch x 1/2 inch thick and has four holes tapped 1/2-13 UNC-2B on 1-3/8 inch centers.

SKB 1-4

Aluminum Keebar, Screw-on, Transformer Connector, Stud 1 Inch. 5-1/2 inch long x 2-53/64 inch tall. Stainless Steel Hardware includes (8) 1/2 inch Belleville Washers, (8) 1/2 inch Flat Washers, (8) 1/2-13 Nuts, (4) Studs. Cap and Grease. Pad is 5-1/2 inch long x 1-1/4 inch x 1/2 inch thick and has four holes tapped 1/2-13 UNC-2B on 1-3/8 inch centers.
Aluminum, ZeeBar, Outlets 4 Over 2, 5-1/8 Long x 2-7/8 Wide x 2-27/32 High. Wire Range #6 to 500 kcmil. 1 Inch Stud. Includes Hardware (Tin Plated Aluminum Screws - One 9/16-18 x 3/4 inch, Two 11/16-16 x 15/32 inch, Six 3/4-16 x 15/16 inch), Compound and Cap.

Z 4025-1 SL

Aluminum, ZeeBar, Outlets 4 Over 2, 5-1/8 Long x 2-7/8 Wide x 2-27/32 High. Wire Range #6 to 500 kcmil. 1 Inch Stud. Includes Hardware (Tin Plated Aluminum Screws - One 9/16-18 x 3/4 inch, Two 11/16-16 x 15/32 inch, Six 3/4-16 x 15/16 inch), Compound and Cap.
Zeebar Aluminum Bare Transformer Connector, Connector Wire Range #6 to 500 kcmil, Rated for Aluminum and Copper, 5/8 inch Stud, Eight Conductors with StreetLight Option. 5-9/16 inch long x 2-3/16 inch wide x 2-27/32 inch tall. Includes Eight Tin Plated Alumium Set Screws 3/4-16 UNF-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 11/16-16 UN-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 9/16-18 UNF-2A with 5/16 inch Hex. Streetlight Wire Range #14 to #2.

Z 3055-58 SL

Zeebar Aluminum Bare Transformer Connector, Connector Wire Range #6 to 500 kcmil, Rated for Aluminum and Copper, 5/8 inch Stud, Eight Conductors with StreetLight Option. 5-9/16 inch long x 2-3/16 inch wide x 2-27/32 inch tall. Includes Eight Tin Plated Alumium Set Screws 3/4-16 UNF-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 11/16-16 UN-2A with 5/16 inch Hex, One Tin Plated Aluminum Set Screw 9/16-18 UNF-2A with 5/16 inch Hex. Streetlight Wire Range #14 to #2.
Tin-Plated Aluminum Transformer Spade Adapter, L-Shaped, 8 inch x 7 inch. Two rows of (2) 9/16 inch Diameter holes on 4 inch end, and Two rows of (4) 9/16 inch Diameter holes on 7 inch side. All holes on 1-3/4 inch Centers.

TSC 4-8-3/4 TN

Tin-Plated Aluminum Transformer Spade Adapter, L-Shaped, 8 inch x 7 inch. Two rows of (2) 9/16 inch Diameter holes on 4 inch end, and Two rows of (4) 9/16 inch Diameter holes on 7 inch side. All holes on 1-3/4 inch Centers.
Keebar Aluminum Transformer Connector with Streetlight option, Stair Step design with four Outlets per step, Wire Range 1/0 - 750 kcmil, Stud Size 5/8 inch and 1 inch - pre-filled with Oxide Inhibitor and Capped. Length 7-5/16 inch, Height 3-3/32 inch , Depth 2-9/16 inch. Hardware includes (8) 7/8-14 x 1-1/32 inch Tin Plated Screws and (1) 9/16-18 x 3/4 inch Tin Plated Screws for StreetLight option.

ZS 4047 USLC

Keebar Aluminum Transformer Connector with Streetlight option, Stair Step design with four Outlets per step, Wire Range 1/0 - 750 kcmil, Stud Size 5/8 inch and 1 inch - pre-filled with Oxide Inhibitor and Capped. Length 7-5/16 inch, Height 3-3/32 inch , Depth 2-9/16 inch. Hardware includes (8) 7/8-14 x 1-1/32 inch Tin Plated Screws and (1) 9/16-18 x 3/4 inch Tin Plated Screws for StreetLight option.
Aluminum Transformer Spade Connector. Cable Range 1/0 to 1000 kcmil. Length 13-7/16 inch. Height 8-3/8 inch. Depth 3-5/8 inch. (16) Wire Positions - 8 per side with two Set-Screws per Outlet. (16) 9/16 inch Diameter Mounting Holes - Two Rows of 8 on 1-3/4 inch Centers. Hardware includes (32) 7/8-14 x 1-5/16 inch Tin Plated Aluminum Set Screws.

ZBT 8081

Aluminum Transformer Spade Connector. Cable Range 1/0 to 1000 kcmil. Length 13-7/16 inch. Height 8-3/8 inch. Depth 3-5/8 inch. (16) Wire Positions - 8 per side with two Set-Screws per Outlet. (16) 9/16 inch Diameter Mounting Holes - Two Rows of 8 on 1-3/4 inch Centers. Hardware includes (32) 7/8-14 x 1-5/16 inch Tin Plated Aluminum Set Screws.

Frequently Asked Questions

What is the voltage rating of the SHC 4 MRS?

The SHC 4 MRS is rated for 600 volts, suitable for most industrial and utility applications.

What applications is the SHC 4 MRS suitable for?

The connector is designed for URD direct burial, below-grade boxes, above-grade pedestals, and streetlight taps.

Can the SHC 4 MRS be used for streetlight applications?

Yes, the SHC 4 MRS includes a streetlight cover (MRS350SL) and supports cable ranges from #1/0 to 350 kcmil for streetlight taps.

How to Install Flood Seal® Mechanical Connector (SHC 3 MRS - SHC 8 MRS)

This guide provides step-by-step instructions for installing the Flood Seal® Mechanical Connector, including cable preparation, conductor insertion, and tightening procedures. Ensure proper electrical safety and adherence to national and local electrical codes.

Estimated time: 30m

Tools needed:

Torque wrench, 5/16 inch Allen wrench, 3/8 inch drive ratchet with Allen adapter, Wire brush, Wire strippers

Supplies needed:

Flood Seal® Mechanical Connector (MRS350SL or CS4197), Silicone grease, Conductor compound, Electrical cable

  1. Prepare for Installation and Cut Rocket Ring

    WARNING: Disconnect all power before beginning installation to prevent risk of electric shock. CAUTION: This product should be installed by a qualified electrician in accordance with national and local electrical codes. Begin by cutting the rocket/cap ring at the tip of the arrow to expose the correct wire range for your specific cable size.

  2. Identify Cable and Strip Insulation

    Identify the cable size you are using. For the feed cable, use the MRS350SL connector; for the service cable, use the CS4197. Strip approximately 2 1/4 inches of insulation from the cable conductor. Penciling the edge of the insulation is recommended, but not required.

  3. Clean Cable and Apply Silicone Grease

    Wipe the stripped cable clean. Apply silicone grease to the cable, then slide the pre-cut rocket over the prepared cable end.

  4. Brush Conductor and Apply Compound

    Thoroughly wire brush the bare conductor to remove surface oxides. Apply compound to the conductor and brush it into the strands.

  5. Insert Conductor into Outlet

    Insert the prepared conductor into the connector's outlet. Ensure that a maximum of 1/8 inch of bare conductor is visible outside the outlet.

  6. Tighten Set Screws to Torque

    Tighten the set screws on the conductor to the specified torque. For wire sizes #12 to #2, torque to 120 in-lbs (10 ft-lbs). For wire sizes 1/0 to 350 Kcm, torque to 360 in-lbs (30 ft-lbs). Use a torque wrench if available; otherwise, use a 5/16" allen wrench or a 3/8" drive ratchet with an allen adapter. Do not use a 'T' handle wrench or 1/2" drive.

  7. Position Rocket Sleeve

    Slide the rocket sleeve over the outlet and onto the PVC shoulder. Continue sliding until the rocket butts firmly against the connector bar.
