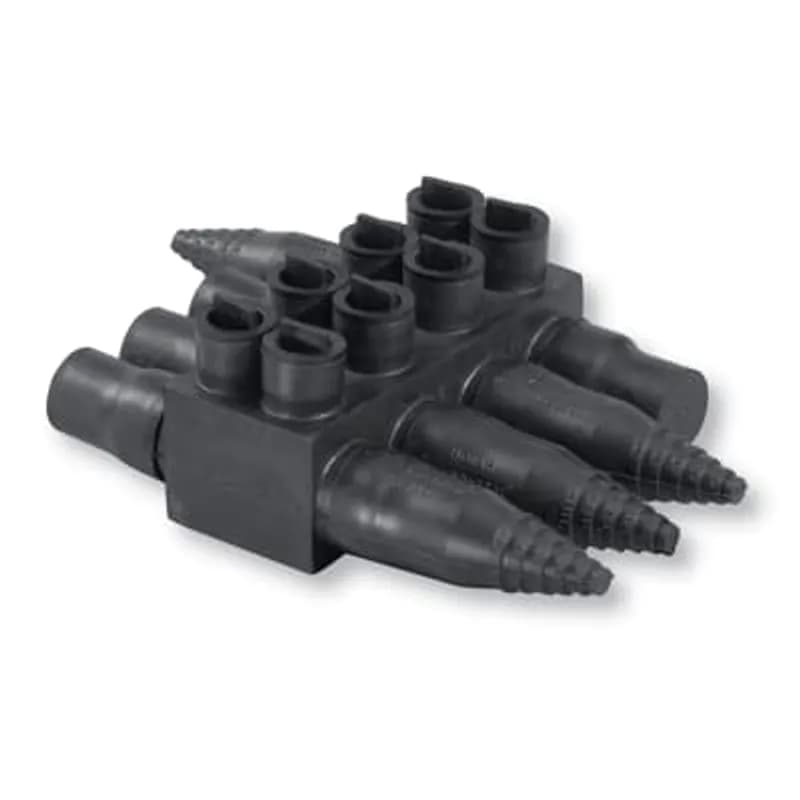

ABB - Installation Products RXM 66 - Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry from either side, length 21-3/4 inch, outlets 12

ABB Installation Products RXM 66 Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry from either side…

UPC: 783786746934

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RXM 66, part of the RMX Series, is an Aluminum Flood-Seal Multi-Port Connector designed for efficient cable management. This connector features a substantial length of 21-3/4 inches, providing ample space for multiple cable terminations. With 12 integrated outlets, it facilitates the connection of numerous cables from a central point. A key design element is its ability to accept cable entry from either side, offering flexibility in installation positioning and routing. The Flood-Seal construction ensures protection against environmental ingress, making it suitable for applications where durability and reliable connections are paramount. This connector is ideal for industrial environments requiring organized and protected multi-cable junctions. SKU: RXM 66. Manufacturer: ABB - Installation Products. UNSPSC Code: 39121443.
  • Aluminum Flood-Seal construction for environmental protection
  • RMX Series Multi-Port Connector
  • 21-3/4 inch length
  • 12 integrated outlets
  • Cable entry configurable from either side

Specifications

Application
Install in Direct-Burial, Handhole, Pedestal and Overhead Applications
Color
Black
Conductor Range
#2 SOL to 1000 kcmil
Connection
Mechanical
Insulation
yes
Material
Aluminum Connector, EPDM Rocket
Number Of Conductors
12
Size
12-3/4 inch
Special Features
Flood Seal EPDM Insulating Rockets Field Tested in more tha 10 million Applications. 6061-T6 Aluminum Connector construction provides High Strength and High Conductivity. Dual Rated to accept a wide range of Copper or Aluminum Conductors, from #2 Solid to 1000 kcmil. Ball-bottom Screws support the widest conductor range and aid in breaking up Aluminum Oxide. EPSM Rubber Cap is easy to find, prevents accidental removal and can be easily removed with pliers. All Connectors are 100 percent Hi-Pot Tested at 4000 Volts for 60 seconds
Type
Flood Seal Multi Port Connector RXM Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
13.3800 L
Package Weight (Metric)
6.0690 kg
