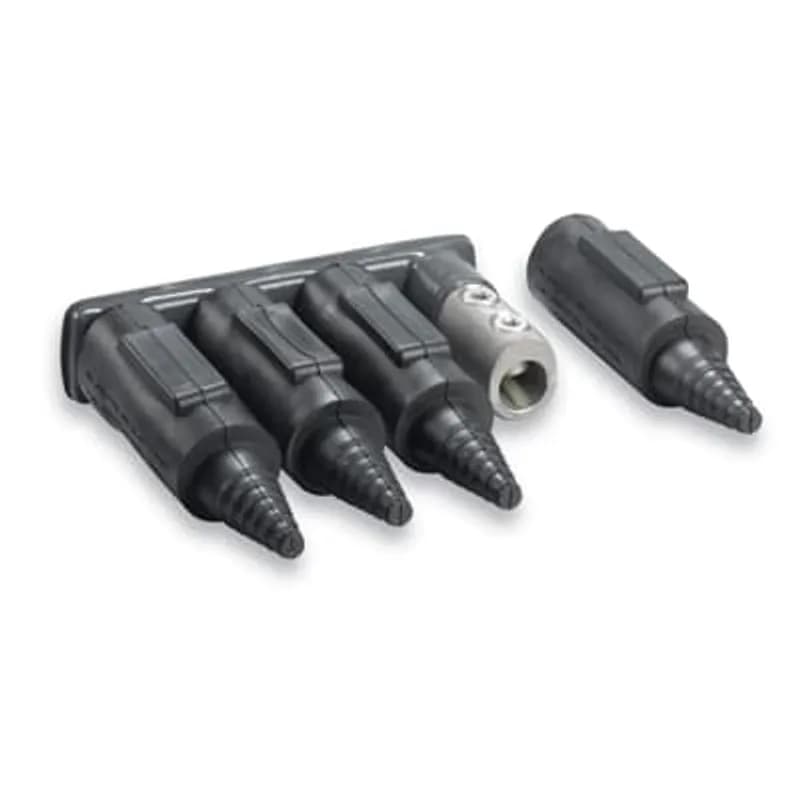

ABB - Installation Products UH1000-2R - Aluminum Flood-Seal Twin-Screw Mechanical Connectors - UH 1000 series with Twin-Screw one-way configuration, conductor range 2-1000, length 4-13/16 inch, outlets 2

ABB Installation Products UH1000-2R Aluminum Flood-Seal Twin-Screw Mechanical Connectors - UH 1000 series with Twin-Screw…

UPC: 783786818921

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 35

Multiplier: 35

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB UH1000-2R is a robust mechanical connector designed for reliable electrical connections in demanding applications. Part of the UH 1000 series, this connector features a Flood-Seal design and a twin-screw, one-way configuration, ensuring secure and efficient termination. Constructed from durable aluminum, it is built to withstand environmental factors and provide long-lasting performance. This connector accommodates a wide conductor range from 2 AWG to 1000 kcmil, offering versatility for various electrical system requirements. With two outlets, it facilitates straightforward branching or joining of conductors. The twin-screw mechanism provides a strong mechanical grip, essential for maintaining consistent electrical contact and minimizing resistance. The overall length of the connector is 4-13/16 inches, making it suitable for installations where space is a consideration. Key specifications include: - Manufacturer: ABB - Installation Products - SKU: UH1000-2R - Series: UH 1000 - Material: Aluminum - Conductor Range: 2 - 1000 kcmil - Number of Outlets: 2 - Configuration: Twin-Screw Mechanical, one-way - Length: 4-13/16 inches The UH1000-2R is ideal for utility, industrial, and commercial power distribution systems where dependable connections are paramount. Its aluminum construction offers excellent conductivity and corrosion resistance. The twin-screw design ensures that each conductor is firmly secured, preventing loosening due to vibration or thermal cycling. This connector is a practical choice for electricians and engineers seeking a reliable solution for medium to high-voltage applications.
  • ABB UH1000-2R Aluminum Flood-Seal Connector
  • Twin-Screw Mechanical, one-way configuration
  • Conductor Range: 2 AWG to 1000 kcmil
  • 2 Outlets for versatile connections
  • Durable Aluminum construction for reliability

Specifications

Application
Flood Seal Mechanical 1000 kcmil Connector
Color
Black
Conductor Range
#2 to 1000 kcmil
Connection
Mechanical
Insulation
yes
Material
Aluminum Connector, EPDM Rubber Insulating Sleeves
Number Of Conductors
2
Size
4-13/16 inch
Special Features
Flood Seal Insulating Rockets field tested in more thatn 10 million applications, and serve as waterproof space outlet caps until used as waterproof cable insulators. All Connectors are 100 percent Hi-Pot tested at 4000 volts for 60 seconds. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. Aluminum-alloy connector construction for High Strength and High Conductivity. Dual-rated to accept a wide range of Copper and Aluminum Conductors
Standard
ANSI C119.1 and C119.4
Type
Flood Seal Twin-Screw Mechanical Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
3.3800 L
Package Weight (Metric)
1.5330 kg
