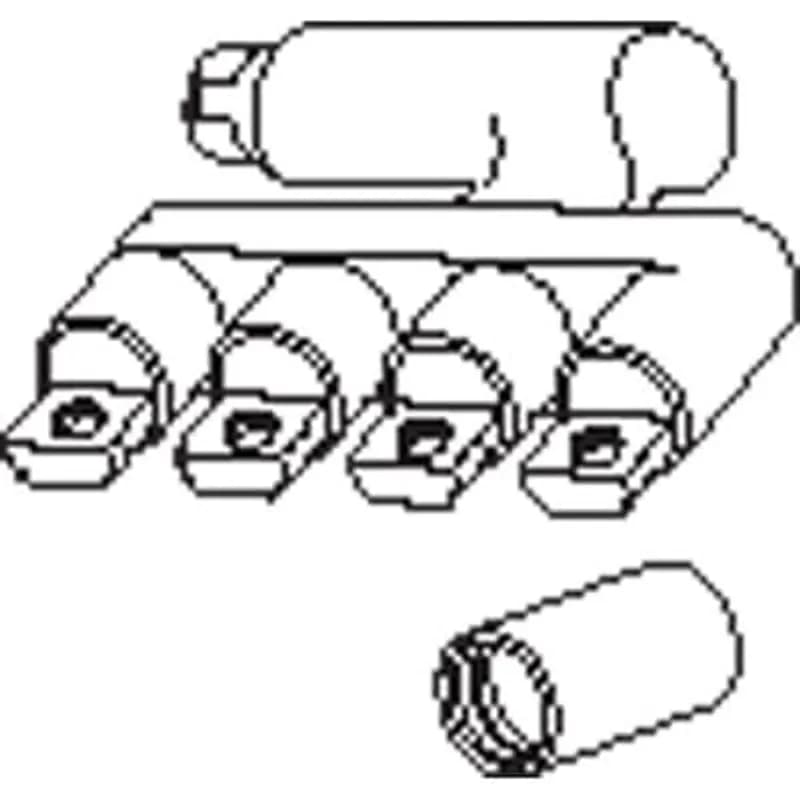

ABB - Installation Products FTU 95-6 - Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors- with disconnectable bushing, adapter length 10 inch, stud size 5/8, outlets 6

ABB Installation Products FTU 95-6 Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors- with disconnectable…

UPC: 783786727377


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products FTU 95-6 is a Screw-on Transformer Connector from the Flood-Seal 95 Series. This connector is constructed from aluminum, offering corrosion resistance and durability for electrical connections. It features a disconnectable bushing, simplifying maintenance and installation procedures. The adapter length is 10 inches, and it is designed with a 5/8 inch stud size for secure mounting. This model provides 6 outlets, making it suitable for multi-point connections in transformer applications. The Flood-Seal design ensures protection against environmental ingress, maintaining the integrity of electrical connections in various conditions. This connector is part of the ABB Installation Products catalog, identified by SKU FTU 95-6. Its UNSPSC code is 39121443. The FTU 95-6 is engineered for reliable power distribution and connection management in electrical infrastructure.
  • Aluminum Flood-Seal 95 Series construction
  • Disconnectable bushing for ease of use
  • 10 inch adapter length
  • 5/8 inch stud size
  • 6 outlets for multiple connections

Specifications

Application
For Use with Aluminum or Copper Lugs up to 500 kcmil
Conductor Range
#8 to 350 kcmil
Connection
Mechanical
Insulation
PVC
Material
Aluminum Connector, PVC Insulated
Size
10 inch
Special Features
PVC Insulated Aluminum Body keeps our moisture while maintaining high Conductivity. Internal/External Threaded Bushing Adapter included with FTU 95 Series enables removal of connector without disassembling individual cables. Dual Rated for use with Aluminum or Copper Lugs from 8 to 350 kcmil
Standard
ANSI C119.4
Type
Stud-Mount Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.3900 L
Package Weight (Metric)
1.0840 kg
