Contact for Pricing
Minimum Qty: 30
Multiplier: 30
*Contact for lower quantities*
Overview

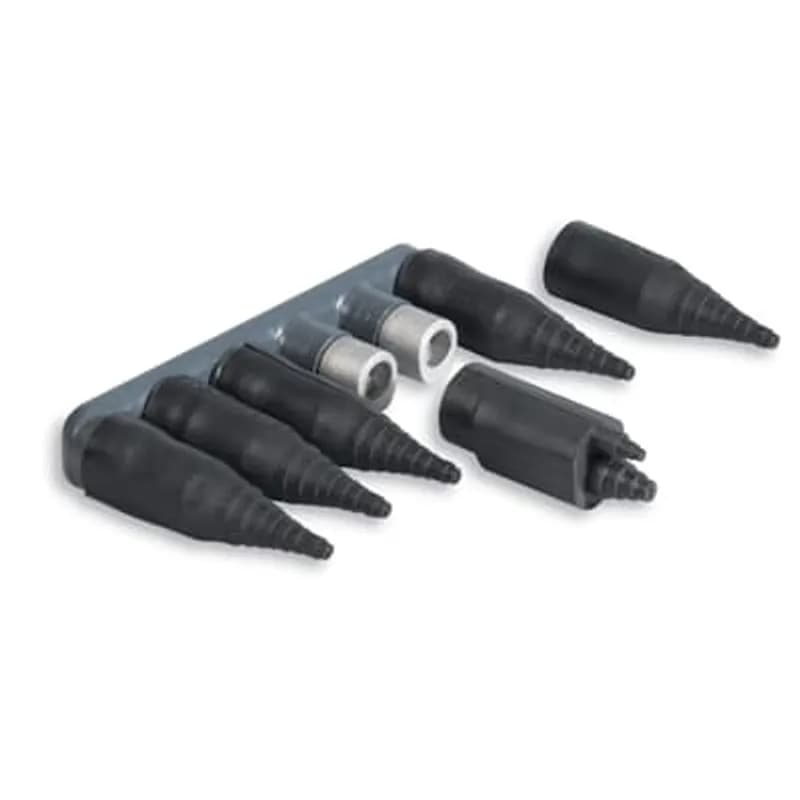

- Dual-rated aluminum mechanical connector
- FloodSeal EPDM rubber gasket for moisture protection
- Seven outlets for feeder and streetlight applications
- Cable range: #6-350 kcmil
- Black PVC insulated, 12.625 inch length, grooved wire ports
Specifications
Application | Saving Outlet Space |
Color | Black |
Conductor Range | #6 to 350 kcmil |
Connection | Mechanical |
Connection Type | Mechanical, Grooved Wire Ports |
Insulation | PVC Coating |
Material | Aluminum |
Material | Aluminum, PVC, EPDM Rubber |
Number of Conductors | 7 |
Poles | 7 |
Series | SweetHeart FloodSeal |
Size | 12.625 inch |
Size | Cable range feeder outlet / StreetLight #6-350 kcmil, length 12.625 inch |
Special Features | Oxide Inhibitor. Comes with Tin Plated Screws and Flood Seal EPDM Rubber Rockets. Grooved Wire Ports |
Type | Insulated Multiport Bus Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.2800 L |
Package Weight (Metric) | 1.4880 kg |
UH 4 RCS
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 7 inch, outlets 4, has CS 2011 Single Tower Rocket instead of standard SHC Rocket.
BLKPSB4-2S-12
Multi Tap Connector, Single Sided, Black Insulation, 2 Port, #4-#14 AWG STR, #10-#14 AWG SOL
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
SLV 240-24
SLV Series Clear PVC Encapsulated Insulated Street and Highway Lighting Mechanical Connectors, Conductor range Main 2 4/0-6 tap (2) 4-14
FYA 2
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 2, aluminum run copper tap fused, installing dies 52,BG,243,5/8
RABS 16
Aluminum Insulated Mechanical InLine Splice, #6 to #1. Length 6.05 inch x 1.43 inch high. Santoprene Insulation.RABS 4010
Aluminum Insulated Mechanical InLine Splice, 1/0 to 4/0, Length 7.6 inch x 2.12 inch high. Santoprene Insulation.How to Install Sweetheart FLOOD-SEAL Mechanical Connector CS 4197 ROCKET
This guide provides step-by-step instructions for installing the Sweetheart FLOOD-SEAL Mechanical Connector CS 4197 ROCKET on service cables. Ensure installation is performed by trained personnel following all applicable local, state, and national electrical codes, installation standards, and safety rules.
Estimated time: 30m
Tools needed:
Utility knife, Wire strippers, Wire brush, Torque wrench (recommended), 5/16" allen wrench, 3/8" drive ratchet with allen adapter
Supplies needed:
Sweetheart FLOOD-SEAL Mechanical Connector CS 4197 ROCKET, Anti-oxidant compound, Silicone grease (included with connector)
- Prepare the Connector for Cable Size
Identify the service cable size. Cut the rocket/cap ring at the tip of the arrow to expose the correct wire range. Similarly, cut the insulating sleeve tip at the arrow to show the correct cable size.
- Prepare the Cable Conductor
Strip approximately 2 1/4 inches of insulation from the cable to bare the conductor. Penciling the edge of the insulation is recommended to ease installation but not required.
- Clean and Treat the Conductor
Thoroughly wire brush the bare conductor to remove surface oxides. Apply anti-oxidant compound to the conductor and brush it into the strands.
- Insert Conductor into Connector
Insert the prepared conductor into the outlet barrel of the connector, ensuring a maximum of 1/8 inch of bare conductor is visible.
- Apply Grease and Position Rocket
Wipe the cable clean. Apply the included silicone grease to the prepared cable. Slide the cut rocket over the greased cable.
- Seat the Rocket Sleeve
Slide the rocket sleeve over the outlet and onto the PVC shoulder until it firmly butts against the connector bar.
- Tighten Setscrews
Tighten the setscrews down on the conductor to the specified torque. For #12 to #2 wire, apply 120 in-lbs (10 ft-lbs). For 1/0 to 350 Kcmil wire, apply 360 in-lbs (30 ft-lbs). The use of a torque wrench is recommended. If not available, use a 5/16” allen wrench or a 3/8” drive ratchet with an allen adapter.
