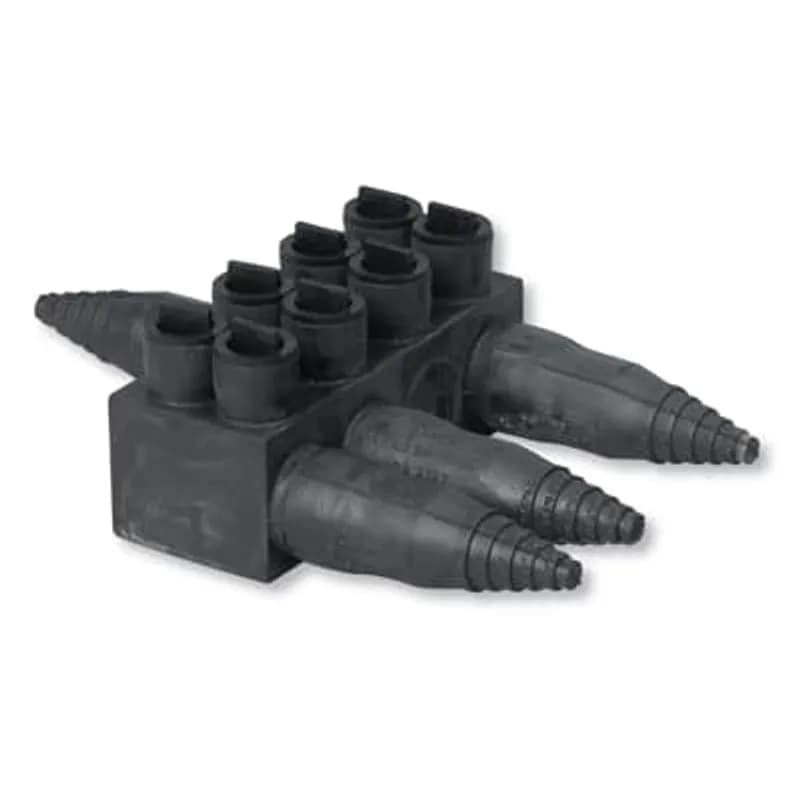

ABB - Installation Products RXM 42 - Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Insulated - EPDM Rubber Coated, Wire Range #2 - 1000 kcmil AL-CU. Custom Order, length 10-7/8 inch, outlets 6. Includes (12) Screws, (12) Black Plugs, (6) Caps with Liners. 4 Outlets on one side and 2 Outlets on other side in a 1-1-2-1-1 arrangement.

ABB Installation Products RXM 42 Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Insulated - EPDM Rubber Coated…

UPC: 783786746897

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 3

Multiplier: 3

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RXM 42 is a custom-order Aluminum Flood-Seal Multi-Port Connector from the RMX Series, designed for insulated applications. This connector is coated with EPDM rubber for enhanced durability and environmental resistance. It accommodates a wide wire range from #2 AWG to 1000 kcmil, suitable for both Aluminum (AL) and Copper (CU) conductors. The RXM 42 features a total length of 10-7/8 inches and is equipped with six ports for multiple connections. The outlet configuration is specific, with four outlets positioned on one side and two on the other, arranged in a 1-1-2-1-1 pattern. This design facilitates organized and efficient wiring in various industrial settings. Each unit includes essential accessories for installation: twelve screws, twelve black plugs to seal unused ports, and six caps with liners to ensure a secure and protected connection. The UNSPSC code for this product is 39121443. This connector is ideal for applications requiring reliable, sealed connections for large gauge conductors in demanding environments. Its robust construction and comprehensive accessory kit make it a practical choice for electrical infrastructure projects.
  • Aluminum Flood-Seal Multi-Port Connector (RMX Series)
  • Insulated with EPDM Rubber Coating
  • Wire Range: #2 - 1000 kcmil AL-CU
  • Length: 10-7/8 inch, 6 Outlets (4+2 configuration)
  • Includes (12) Screws, (12) Black Plugs, (6) Caps with Liners

Specifications

Application
Install in Direct-Burial, Handhole, Pedestal and Overhead Applications
Color
Black
Conductor Range
#2 SOL to 1000 kcmil
Connection
Mechanical
Insulation
yes
Material
Aluminum Connector, EPDM Rocket
Material
Aluminum with EPDM Rubber Coating
Number of Conductors
6
Series
RMX Series
Size
10-7/8 inch
Special Features
Flood Seal EPDM Insulating Rockets Field Tested in more tha 10 million Applications. 6061-T6 Aluminum Connector construction provides High Strength and High Conductivity. Dual Rated to accept a wide range of Copper or Aluminum Conductors, from #2 Solid to 1000 kcmil. Ball-bottom Screws support the widest conductor range and aid in breaking up Aluminum Oxide. EPSM Rubber Cap is easy to find, prevents accidental removal and can be easily removed with pliers. All Connectors are 100 percent Hi-Pot Tested at 4000 Volts for 60 seconds
Type
Flood Seal Multi Port Connector RXM Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
6.1800 L
Package Weight (Metric)
2.8030 kg
Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry one side only, length 7-1/4 inch, outlets 4

RXM 4

Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry one side only, length 7-1/4 inch, outlets 4
NEMA Transformer Spade Adapters - Aluminum - TSC 4 series, (14) .562 inch Diameter Bolt Holes, L-Shaped - 8 inch x 8.75 inch, thickness 3/4 inch. 4-Hole Pad Side is 4 inches Wide with 1.75 inch centers, 10-Hole Pad Side is 3.875 inch x 8.75 inch with 1.75 inch centers.

TSC 4-10

NEMA Transformer Spade Adapters - Aluminum - TSC 4 series, (14) .562 inch Diameter Bolt Holes, L-Shaped - 8 inch x 8.75 inch, thickness 3/4 inch. 4-Hole Pad Side is 4 inches Wide with 1.75 inch centers, 10-Hole Pad Side is 3.875 inch x 8.75 inch with 1.75 inch centers.
Tin Plated Copper Compression Splice, 1/0 Stranded. Pink Ink. Length 2.0 inches x 5/8 inch Diameter, Oil Stop.

SGC 1/0

Tin Plated Copper Compression Splice, 1/0 Stranded. Pink Ink. Length 2.0 inches x 5/8 inch Diameter, Oil Stop.
NEMA Transformer Spade Adapters - TSC series, Aluminum, 12 Bolt Holes, - .562 inch Diameter - two Rows of 6 on 1.75 inch centers, spade thickness 3/4 inch x 10.5 inch long x 4 inch wide.

TSC 12

NEMA Transformer Spade Adapters - TSC series, Aluminum, 12 Bolt Holes, - .562 inch Diameter - two Rows of 6 on 1.75 inch centers, spade thickness 3/4 inch x 10.5 inch long x 4 inch wide.
Aluminum Flood-Seal Mechanical Connectors-Mechanical 500 kcmil connectors, dual rated, PVC Insulated, cable range feeder outlet S/L 2-500, outlets 2, length 3-7/8 in

SHC 500-2

Aluminum Flood-Seal Mechanical Connectors-Mechanical 500 kcmil connectors, dual rated, PVC Insulated, cable range feeder outlet S/L 2-500, outlets 2, length 3-7/8 in
Aluminum Flood-Seal Mechanical Connectors-Mechanical 500 kcmil connectors, dual rated, PVC Insulated, cable range feeder outlet S/L 2-500, outlets 6, length 12-7/8 in

SHC 500-6

Aluminum Flood-Seal Mechanical Connectors-Mechanical 500 kcmil connectors, dual rated, PVC Insulated, cable range feeder outlet S/L 2-500, outlets 6, length 12-7/8 in
NEMA Transformer Spade Adapters - Aluminum - TSC 4 series, (10) .562 inch Diameter Bolt Holes, L-Shaped - 6.5 inch x 5.25 inch, thickness 3/8 inch. 4-Hole Pad Side is 3 inches Wide with 1.75 inch centers, 6-Hole Pad Side is 3.125 inch x 5.25 inch with 1.75 inch centers.

TSC 4-6

NEMA Transformer Spade Adapters - Aluminum - TSC 4 series, (10) .562 inch Diameter Bolt Holes, L-Shaped - 6.5 inch x 5.25 inch, thickness 3/8 inch. 4-Hole Pad Side is 3 inches Wide with 1.75 inch centers, 6-Hole Pad Side is 3.125 inch x 5.25 inch with 1.75 inch centers.
NEMA Transformer Spade Adapters - Aluminum - TSC 4 series, (12) .562 inch Diameter Bolt Holes, L-Shaped - 7 inch x 6.5 inch, thickness 3/8 inch. 4-Hole Pad Side is 3 inches Wide with 1.75 inch centers,8-Hole Pad Side is 3.125 inch x 7 inch with 1.75 inch centers.

TSC 4-8

NEMA Transformer Spade Adapters - Aluminum - TSC 4 series, (12) .562 inch Diameter Bolt Holes, L-Shaped - 7 inch x 6.5 inch, thickness 3/8 inch. 4-Hole Pad Side is 3 inches Wide with 1.75 inch centers,8-Hole Pad Side is 3.125 inch x 7 inch with 1.75 inch centers.

Frequently Asked Questions

What wire sizes does the RXM 42 connector support?

The ABB RXM 42 connector supports a wire range from #2 AWG to 1000 kcmil for both Aluminum (AL) and Copper (CU) conductors.

What is the construction of the RXM 42 connector?

The RXM 42 is an Aluminum Flood-Seal connector from the RMX Series, featuring an EPDM rubber coating for insulation and durability.

How many outlets does the RXM 42 connector have?

The RXM 42 connector has a total of six outlets, with four outlets on one side and two outlets on the other in a 1-1-2-1-1 arrangement.

What accessories are included with the RXM 42 connector?

Each RXM 42 connector includes twelve screws, twelve black plugs, and six caps with liners for installation and sealing.

What is the length of the RXM 42 connector?

The ABB RXM 42 connector has a specified length of 10-7/8 inches.
