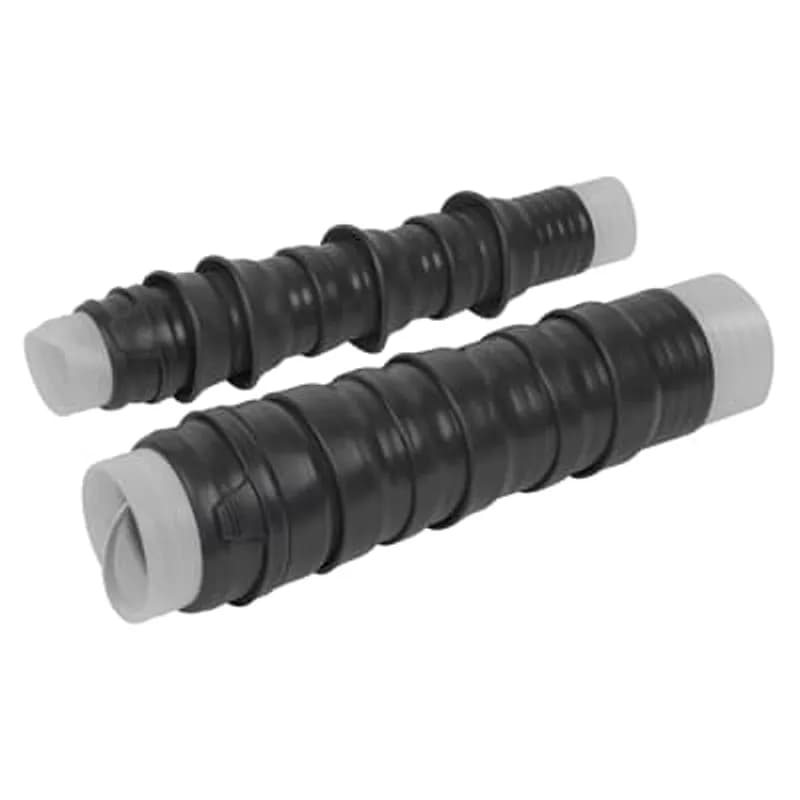

ABB - Installation Products R2T28J4-N0380 - Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 750 /Compact or Solid 900

ABB Installation Products R2T28J4-N0380 Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter 1.30…

UPC: 783786555451


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Ranger2 Termination (SKU: R2T28J4-N0380) is engineered for 25/28KV outdoor applications, specifically designed for Concentric Neutral and Jacketed Concentric Neutral cables. This termination system accommodates cable insulation diameters ranging from 1.30 to 2.10 inches, ensuring a secure and reliable connection for a variety of cable constructions. Included with the Ranger2 Termination is a robust Aluminum 2-Hole Spade connector. This connector is compatible with cable sizes from #2 AWG up to 1250 kcmil, supporting both stranded and compressed conductors in the 750 kcmil range, as well as solid conductors up to 900 kcmil. The precise fit and material selection are critical for maintaining electrical integrity and preventing premature failure in demanding outdoor environments. This product, part of ABB's Installation Products catalog, is built to facilitate dependable power distribution in outdoor substations, utility infrastructure, and industrial facilities where reliable cable termination is paramount. Its design focuses on providing a secure mechanical and electrical interface for medium-voltage power cables. UNSPSC Code: 26121648.
  • Designed for 25/28KV outdoor applications
  • Accommodates cable insulation diameters from 1.30 to 2.10 inches
  • Suitable for Concentric Neutral and Jacketed Concentric Neutral cables
  • Includes Aluminum 2-Hole Spade connector
  • Connector supports #2-1250 kcmil stranded/compressed (750 kcmil) and solid (900 kcmil) conductors

Specifications

Application
Cable Termination, Outdoor Application, 28kV
Cable Type
Concentric Neutral Wire
Color
Gray
Conductor Size
750 to 900 kcmil
Connection Type
2-Hole Spade connector
Current Rating
1250 kcmil
Earthing
Products Includes Their Own Grounding System
Material
Aluminum
Mounting
Product Need to have Cable Holder (not included)
Number Of Terminals
(1) Single Phase
Series
Ranger2
Size
1.30 - 2.10 inches
Special Features
Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction
Standard
IEEE 48
Type
Cable Termination - Outdoor - Ranger2
Voltage Rating
28 kV
Voltage Rating
25/28 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Indoor Ranger2 Cable Termination. 15kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral. Insulation Range - .64 inch - 1.12 inch. Aluminum 2-Hole Spade #2-1250 kcmil, Conductor 750 Stranded/Compressed or 900 Compact/Solid

R2IT15J1-N0380

Indoor Ranger2 Cable Termination. 15kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral. Insulation Range - .64 inch - 1.12 inch. Aluminum 2-Hole Spade #2-1250 kcmil, Conductor 750 Stranded/Compressed or 900 Compact/Solid
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Universal Aluminum Barrel For Aluminum or Copper Conductor with copper wire lead #2-4/0, Stranded or Compressed 2/0 /Compact or Solid 3/0

R2T28J2-T0250

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Universal Aluminum Barrel For Aluminum or Copper Conductor with copper wire lead #2-4/0, Stranded or Compressed 2/0 /Compact or Solid 3/0
Ranger2 Termination for 15KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable. Aluminum 2 Hole Spade #2-1250kcmil, Stranded or Compressed 4/0 /Compact or Solid 250.

R2T15J2-N0270

Ranger2 Termination for 15KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable. Aluminum 2 Hole Spade #2-1250kcmil, Stranded or Compressed 4/0 /Compact or Solid 250.
Ranger2 Termination for 15KV outdoor application, cable insulation diameter .84-1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Aluminum 2 Hole Spade #2-1250kcmil, Stranded or Compressed 350 /Compact or Solid 400. Plated Mild Steel Mounting Bracket 1.10 inch - 1.50 inch (28-38mm)

R2T15J2-N0300-B2

Ranger2 Termination for 15KV outdoor application, cable insulation diameter .84-1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Aluminum 2 Hole Spade #2-1250kcmil, Stranded or Compressed 350 /Compact or Solid 400. Plated Mild Steel Mounting Bracket 1.10 inch - 1.50 inch (28-38mm)
Ranger2 Termination for 15KV outdoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum Barrel For AL Conductor only w/copper wire lead #2 to 4/0. 1/0 Stranded or 2/0 Solid

R2T15J1-T1240

Ranger2 Termination for 15KV outdoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum Barrel For AL Conductor only w/copper wire lead #2 to 4/0. 1/0 Stranded or 2/0 Solid
Ranger2 Termination for 15KV outdoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum Barrel For Aluminum Conductor only with copper wire lead #2-4/0, Stranded or Compressed #2 /Compact or Solid #1.

R2T15J1-T1220

Ranger2 Termination for 15KV outdoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum Barrel For Aluminum Conductor only with copper wire lead #2-4/0, Stranded or Compressed #2 /Compact or Solid #1.
Ranger2 Termination for 15KV outdoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Universal Aluminum Barrel For Aluminum or Copper Conductor with copper wire lead #2-4/0, Stranded or Compressed #1 /Compact or Solid 1/0. Stainless Steel Mounting Bracket .80 inch - 1.25 inch (20-32mm)

R2T15J1-T0230-B1

Ranger2 Termination for 15KV outdoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Universal Aluminum Barrel For Aluminum or Copper Conductor with copper wire lead #2-4/0, Stranded or Compressed #1 /Compact or Solid 1/0. Stainless Steel Mounting Bracket .80 inch - 1.25 inch (20-32mm)
Ranger2 Termination for 15KV outdoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Universal Aluminum Barrel For Aluminum or Copper Conductor with copper wire lead #2-4/0, Stranded or Compressed 2/0 /Compact or Solid 3/0. Plated Mild Steel Mounting Bracket 1.10 inch - 1.50 inch (28-38mm)

R2T15J1-T0250-B2

Ranger2 Termination for 15KV outdoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Universal Aluminum Barrel For Aluminum or Copper Conductor with copper wire lead #2-4/0, Stranded or Compressed 2/0 /Compact or Solid 3/0. Plated Mild Steel Mounting Bracket 1.10 inch - 1.50 inch (28-38mm)

Frequently Asked Questions

What is the IEEE classification for the R2T28 outdoor termination?

The R2T28 outdoor termination has an IEEE Classification of Class 1A.

Where can I find installation instructions for the R2T28?

Installation instructions are available under IS-1134 for R2T28J, IS-1135 for R2T28M, and IS-1136 for R2T28L.

What is the creepage distance of the R2T28 termination?

The creepage distance for the R2T28 termination is 22.8 inches (579 mm).

What is the minimum strike distance for the R2T28?

The minimum strike distance for the R2T28 termination is 14.5 inches (368 mm).

How many sheds does the 25/28kV outdoor model have?

The 25/28kV outdoor model of the R2T28 termination features six sheds.

What power system frequencies does the R2T28 support?

The R2T28 termination supports power system frequencies ranging from 48 to 62 Hz.

What cable insulation diameters does the R2T28 termination cover?

The R2T28 termination covers cable insulation diameters from 0.84 inches (21.3 mm) to 2.10 inches (53 mm). This accommodates #2 AWG through 1250 kcmil cables.

What is the voltage rating for the R2T28 outdoor termination?

The R2T28 outdoor termination has a voltage rating of 25/28 kV. Its maximum design voltage to ground is 16 kV.

What is the operating temperature range for the R2T28 termination?

The R2T28 termination operates within an ambient temperature range of -22 to +149 °F (-30 to +65 °C).

What is the maximum altitude for R2T28 termination installation?

The R2T28 termination can be installed at a maximum altitude of 3300 feet (1005 m).

How to Install 15kV & 28kV Ranger 2 Cable Terminations

This guide provides detailed instructions for the installation of 15kV and 28kV Ranger 2 Cable Terminations on concentric and jacketed concentric neutral cables for indoor/outdoor applications. It covers cable preparation, lug installation, cleaning, and the final termination assembly.

Estimated time: 2h

Tools needed:

Wire strippers, Crimping tool, Vinyl tape, Binding wire (optional), Approved solvent, Aluminum oxide abrasive (grit 120 or finer, optional), Measuring tape or ruler, Cutting tool

Supplies needed:

Silicone Rubber Termination, Lubricant, Grey Silicone Rubber Tape, Sealing Mastic, Gloves, Connector (optional), Cable Support Bracket (optional), Silicone grease

  1. Verify Compatibility and De-energize

    Verify cable size against the Termination Selection Chart. DANGER: All apparatus must be de-energized during installation. Inspect parts for damage, rating, and compatibility. Read instructions completely and have all required tools ready. Installation must be performed by competent personnel trained in high voltage electrical equipment safety practices.

  2. Prepare Cable and Apply Mastic

    Train cable into position and cut to length, allowing sufficient neutral wire for grounding. Prepare cable by removing jacket, neutral wires, and semi-con insulation shield according to dimensions in Table 1, accounting for lug depth and conductor growth. Wrap one band of sealing mastic (50% stretch) 1/4" (6mm) from jacket end, cutting flush. Bend neutral wires back over mastic, securing them 4-6" (100-150mm) from cut edge with vinyl tape or binding wire. Apply a second mastic band (50% stretch) over neutral wires, cutting flush. Wrap two half-lapped layers of vinyl tape around the mastic seal, maintaining the 1/4" (6mm) dimension.

  3. Install and Crimp Lug/Connector

    If using a lug that won't fit through the termination core, clean insulation and slide termination onto cable *before* installing the lug (do not remove core yet). Position the connector/lug and crimp according to its directions, leaving the last 1/4" to 3/8" uncrimped. Remove excess oxide inhibitor and sharp crimp flashings after crimping.

  4. Clean Cable Insulation

    Wipe the cable insulation with an approved solvent, ensuring it does not touch the semi-con insulation shield. If abrasive cleaning is necessary, use only aluminum oxide abrasive (grit 120 or finer) on the insulation only. Do not use abrasive on the semi-con shield and be careful not to reduce the cable insulation diameter below kit allowance.

  5. Install Termination Insulator

    Create a track-resistant moisture seal by wrapping a band of gray silicone rubber tape around the base of the terminal lug. Adjust tape layers if barrel diameter differs from cable primary insulation. Apply a liberal coating of silicone grease to the edge of the semi-con insulation shield to fill the step at the cut-off. For lower terminations with a fold-down skirt, pull the loose end of the removable core through the top until flush with the bottom. Slide the termination body onto the cable, aligning it with the forward edge of the mastic seal. Carefully remove the core by unwinding counter-clockwise, ensuring the termination body remains butted against the mastic seal. Do not push or pull the assembly during core removal.

  6. Complete Sealing and Ground Neutral

    Apply a thin film of silicone lubricant to the skirt and mastic seal area (do not lubricate skirt tabs). Carefully fold down the skirt over the mastic seal. Complete the lug area moisture seal using the remaining gray silicone rubber tape, overlapping the termination insulator by approximately 1" and extending over a non-crimped region of the lug/connector barrel with a half-lap configuration. Twist the concentric neutral wires together and connect them securely to the system ground. Confirm that the High-K step does not exceed 1.5 inches.
