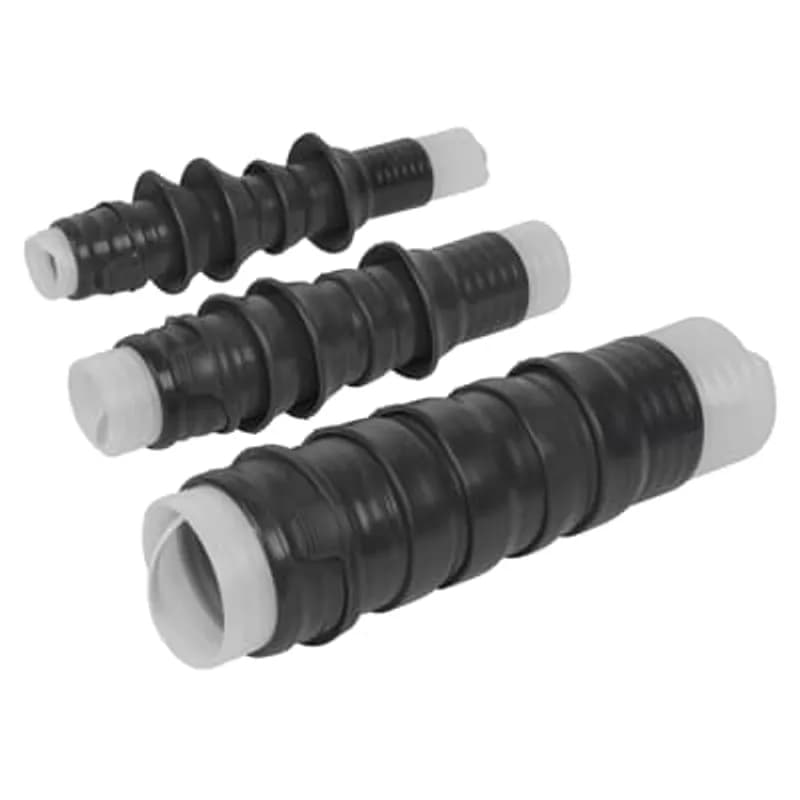

ABB - Installation Products R2T15J1-T0250 - Outdoor, 15kV, Cable type Concentric Neutral/Jacketed Concentric Neutral, Insulation Range .64 inch to 1.12 inch, Connector Type Universal Aluminum Barrel for Aluminum or Copper Conductor with Copper Wire lead #2-4/0, Conductor Code 2/0 Stranded or Compressed 3/0 for Compact or Solid

ABB Installation Products R2T15J1-T0250 Outdoor, 15kV, Cable type Concentric Neutral/Jacketed Concentric Neutral, Insulation…

UPC: 783786849246


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB R2T15J1-T0250 is a 15kV outdoor cable termination designed for jacketed concentric neutral cables in medium-voltage power distribution systems. This termination leverages shrink-fit technology and Elastimold’s pull-down jacket seal feature to deliver a high-reliability solution with minimal model variants. Engineered for harsh outdoor environments, the R2T15J1-T0250 features a non-tracking silicone housing with superior weathering characteristics and memory retention. The housing includes four sheds for enhanced creepage and strike distances, ensuring long-term performance in exposed installations. Field-removable center core simplifies installation, while pull-down tabs facilitate easy deployment of the built-in jacket seal. The termination is compatible with popular XLP and EPR cable types and shield constructions, making it suitable for utility, industrial, and commercial applications. The R2T15J1-T0250 supports aluminum or copper conductors with copper wire leads sized for #2-4/0 AWG, providing robust electrical continuity and mechanical strength. Optional connectors with copper stems, one-hole, and two-hole spade connectors are available for added versatility. The termination is designed to install in restricted spaces and permits applications where free-hanging configurations are required. With a maximum design voltage to ground of 9.5 kV and a lightning impulse withstand rating of 110 kV crest, this termination meets the demands of medium-voltage systems operating at 15 kV. Ideal for new construction and retrofit projects, the R2T15J1-T0250 is part of ABB’s Ranger2 termination line, a trusted solution for medium-voltage cable accessories. Its compact design and field-proven performance make it a cost-effective choice for power distribution networks requiring reliable, long-lasting terminations in outdoor settings.
  • 15kV outdoor termination for jacketed concentric neutral cables
  • Shrink-fit housing with pull-down jacket seal for easy installation
  • Accommodates insulation diameters from 0.64 inch to 1.12 inch
  • Four sheds for enhanced creepage and strike distances
  • Field-removable center core simplifies installation

Specifications

Application
Cable Termination, Outdoor Application, 15kV
Cable Type
Concentric Neutral Wire
Color
Gray
Conductor Size
2/0 STR AWG , 2/0 COMPR AWG , 3/0 SOL AWG , 3/0 COMPT AWG
Connection Type
Universal Aluminum Barrel
Earthing
Products Includes Their Own Grounding System
Material
Aluminum, Copper
Mounting
Product Need to have Cable Holder (not included)
Number Of Terminals
(1) Single Phase
Series
R2T15J1
Size
0.64-1.12 inch (Insulation Diameter)
Special Features
Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction
Standard
IEEE 48
Type
Cable Termination - Outdoor - Ranger2
Voltage Rating
15 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Outdoor, Ranger2 Termination, 15kV, Concentric Neutral/Jacketed Concentric Neutral Cable Type, Insulation Range - .64-1.12 inch (16-28mm). Connector Type Universal Aluminum Barrel for AL or CU Conductor with Copper Wire Lead #2-4/0. Conductor - 2/0 Stranded/Compressed or 3/0 Compact/Solid. Cable Mounting Bracket Material - Stainless Steel, Size .80-1.25 inch (20-32mm).

R2T15J1-T0250-B1

Outdoor, Ranger2 Termination, 15kV, Concentric Neutral/Jacketed Concentric Neutral Cable Type, Insulation Range - .64-1.12 inch (16-28mm). Connector Type Universal Aluminum Barrel for AL or CU Conductor with Copper Wire Lead #2-4/0. Conductor - 2/0 Stranded/Compressed or 3/0 Compact/Solid. Cable Mounting Bracket Material - Stainless Steel, Size .80-1.25 inch (20-32mm).
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Universal Aluminum Barrel For Aluminum or Copper Conductor with copper wire lead #2-4/0, Stranded or Compressed 4/0 /Compact or Solid 250

R2T28J2-T0270

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Universal Aluminum Barrel For Aluminum or Copper Conductor with copper wire lead #2-4/0, Stranded or Compressed 4/0 /Compact or Solid 250
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Tape Shield, Wire Shield, and Unshielded Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 500 /Compact or Solid 600, Stainless Steel Mounting Bracket 1.45 inch - 1.95 inch

R2T28M2-N0330-B3

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Tape Shield, Wire Shield, and Unshielded Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 500 /Compact or Solid 600, Stainless Steel Mounting Bracket 1.45 inch - 1.95 inch
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 500 /Compact or Solid 600, Stainless Steel Mounting Bracket 1.45 inch - 1.95 inch

R2T28J2-N0330-B3

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 500 /Compact or Solid 600, Stainless Steel Mounting Bracket 1.45 inch - 1.95 inch
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 1/0 /Compact or Solid 2/0

R2T28J2-N0240

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 1/0 /Compact or Solid 2/0
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Tape Shield, Wire Shield, and Unshielded Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 400 /Compact or Solid 500, Stainless Steel Mounting Bracket 1.45 inch - 1.95 inch

R2T28M2-N0310-B3

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Tape Shield, Wire Shield, and Unshielded Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 400 /Compact or Solid 500, Stainless Steel Mounting Bracket 1.45 inch - 1.95 inch
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 4/0 /Compact or Solid 250

R2T28J2-N0270

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 4/0 /Compact or Solid 250
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 750 /Compact or Solid 900

R2T28J4-N0380

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 750 /Compact or Solid 900

Frequently Asked Questions

What insulation diameter range does this connector fit?

The R2T15J1-T0250 accommodates insulation diameters from 0.64 inch to 1.12 inch.

Is the R2T15J1-T0250 suitable for outdoor installations?

Yes, the connector is designed for outdoor use and resists environmental stressors like moisture and UV exposure.

What voltage rating does the R2T15J1-T0250 support?

The connector is rated for 15kV applications, suitable for medium-voltage power distribution systems.

Can this connector be used with both aluminum and copper conductors?

Yes, the universal aluminum barrel is designed for use with either aluminum or copper conductors.

What conductor sizes are compatible with this connector?

The connector supports #2-4/0 AWG conductors, including 2/0 stranded or compressed 3/0 configurations.

How to Install 15kV & 28kV Ranger 2 Cable Termination

This guide provides detailed instructions for installing the Ranger 2 silicone rubber cable termination on 15kV and 28kV concentric and jacketed concentric neutral cables for indoor/outdoor applications, including cable preparation, lug installation, and final sealing.

Estimated time: 1h 30m

Tools needed:

Wire strippers, Crimping tool, Approved solvent, Aluminum oxide abrasive (grit 120 or finer, optional), Vinyl tape, Binding wire (optional)

Supplies needed:

Silicone Rubber Termination (kit), Silicone Lubricant (kit), Grey Silicone Rubber Tape (kit), Sealing Mastic (kit), Gloves (kit), Elastimold copper or aluminum lug/connector, Silicone grease

  1. De-energize Apparatus and Prepare Cable

    DANGER: De-energize all apparatus before beginning installation or removal of any parts to prevent serious or fatal injury. Verify the cable size fits within the kit's specified range using the Termination Selection Chart. Train the cable into position, cut to the required length, and allow sufficient neutral wire length for grounding. Prepare the cable using the dimensions shown in the instructions, accounting for terminal lug depth and additional exposed conductor distance for aluminum lugs.

  2. Apply Mastic and Secure Neutral Wires

    Carefully wrap one band of sealing mastic around the cable jacket 1/4 inch (6mm) from the jacket end, using a 50% stretch. Position it precisely as a marker and cut flush without overlapping. Bend the neutral wires back over the mastic, press them in, and secure them to the cable jacket 4-6 inches (100-150mm) from the cut edge using vinyl tape or binding wire. Apply a second mastic band over the neutral wires and the first mastic, then wrap two half-lapped layers of vinyl tape around the mastic seal, carefully maintaining the 1/4 inch (6mm) dimension from the jacket end.

  3. Install Lug/Connector and Clean Insulation

    If your lug does not fit through the termination core, clean the insulation and slide the termination onto the cable before installing the lug (do not remove the core yet). Position the connector or lug and crimp it according to its specific directions, avoiding crimping the last 1/4 to 3/8 inch of the connector. Remove any excess oxide inhibitor and sharp crimp flashings after crimping. Wipe the cable insulation with an approved solvent, ensuring the solvent does not touch the semi-con insulation shield. If an abrasive is necessary, use only aluminum oxide abrasive (grit 120 or finer) on the insulation only, avoiding the semi-con shield and being careful not to reduce the cable insulation diameter.

  4. Install Termination Body

    Wrap a band of gray silicone rubber tape (from the kit) around the base of the terminal lug to create a track-resistant moisture seal between the termination insulator and the lug/connector. If the barrel diameter is smaller than the cable primary insulation, build up the tape band to equal the insulation diameter. Apply a liberal coating of silicone grease to the edge of the semi-con insulation shield to fill the step at the semi-con cut-off. For lower terminations with a fold-down skirt, pull the loose end of the removable core through the top of the termination until the core is flush with the bottom. Slide the termination body onto the cable, aligning it with the forward edge of the mastic seal. Carefully remove the core by unwinding it counter-clockwise, starting with the loose end, ensuring the termination body is butted up to the leading edge of the mastic seal without pushing or pulling.

  5. Complete Sealing and Grounding

    Apply a thin film of silicone lubricant to the skirt and mastic seal area (do not lubricate skirt tabs). Carefully fold down the skirt over the mastic seal. Using the remaining gray silicone rubber tape, complete the lug area moisture seal by overlapping the termination insulator by approximately 1 inch and extending the tape wrapping over a non-crimped region of the lug/connector barrel with a half-lap configuration. Twist the concentric neutral wires together and connect them to the system ground. Finally, confirm that the High-K step does not exceed 1.5 inches.
