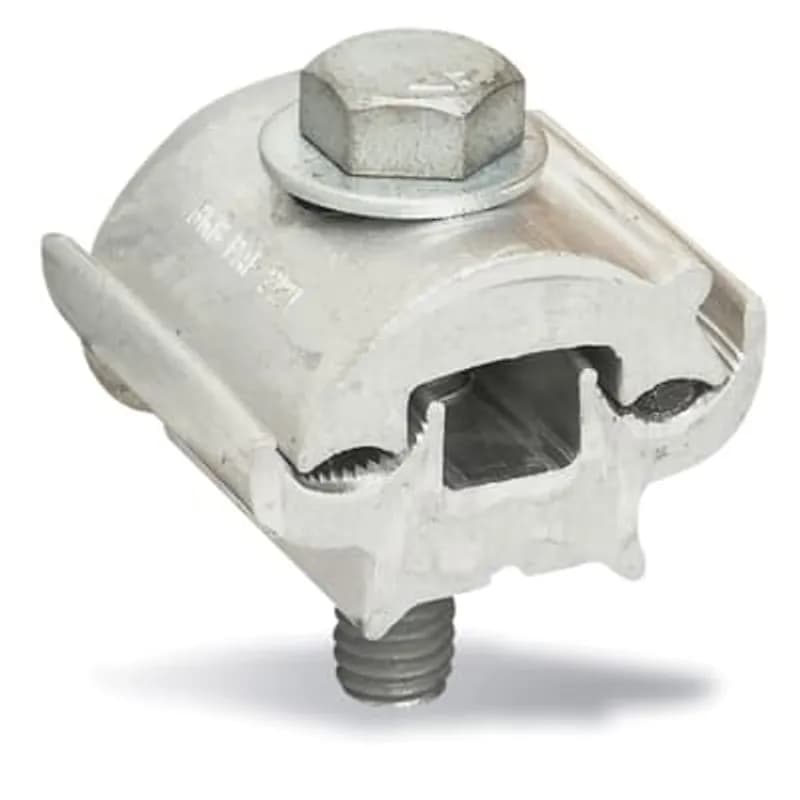

ABB - Installation Products PAE3921-79-2SCE - Parallel Groove Clamp, Aluminum Hardware, Pre-filler with Contax Inhibitor, Conductor Range Main 397.5 ACSR - 3/0 STR 2/0 - 6 AR, TAP 2/0 STR - 6 Solid 6 AR

ABB Installation Products PAE3921-79-2SCE Parallel Groove Clamp, Aluminum Hardware, Pre-filler with Contax Inhibitor, Conductor…

UPC: 783786328055


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PAE3921-79-2SCE Parallel Groove Clamp is a robust connection solution designed for aluminum conductors in electrical distribution systems. Manufactured by ABB - Installation Products, this clamp utilizes a pre-filled design with Contax inhibitor to ensure reliable and long-lasting electrical contact, preventing oxidation and corrosion at the connection point. The primary function of this clamp is to securely join two conductors in parallel, facilitating efficient current transfer and system integrity. Its construction from high-grade aluminum ensures compatibility with aluminum conductors and resistance to environmental factors. The PAE3921-79-2SCE is engineered to accommodate a wide range of conductor sizes for both the main and tap connections. The main conductor range extends from 397.5 ACSR to 3/0 STR and 2/0 STR, down to 6 AR. For the tap connection, the clamp supports conductors from 2/0 STR to 6 Solid, down to 6 AR. This versatility makes it suitable for various overhead line applications, substations, and industrial power distribution networks where secure and dependable connections are paramount. The parallel groove design provides a substantial contact area, minimizing resistance and heat buildup under load. The inclusion of Contax inhibitor is a critical feature for aluminum conductor connections, as it actively maintains the conductivity of the joint over time, reducing the need for frequent maintenance and ensuring operational safety. The SKU for this specific model is PAE3921-79-2SCE. This clamp is a key component for ensuring the reliability and longevity of electrical infrastructure, directly contributing to uninterrupted power supply. Its specification aligns with UNSPSC code 39121449.
  • ABB - Installation Products Parallel Groove Clamp
  • Aluminum construction for conductor compatibility and durability
  • Pre-filled with Contax Inhibitor for enhanced electrical contact and corrosion prevention
  • Main Conductor Range: 397.5 ACSR - 3/0 STR 2/0 - 6 AR
  • Tap Conductor Range: 2/0 STR - 6 Solid 6 AR

Specifications

Application
Securing Conductors
Conductor Range
Main: 397.5 ACSR to 3/0 STR , 2/0 to #6 Armored Rod. Tap: 2/0 STR to #6 SOL , #6 Armored Rod
Connection
Bolted
Environmental Conditions
All Seasons / Conditions
Insulation
None
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Height 2-9/16 X Length 1-5/8 X Width 2-1/4 inch, Bolt 1/2 inch
Special Features
Galvanized Steel Hardware Provides High Strength for Heavy-Duty Applications. Install with Live Line Tools you Already Have. Dual-Rated for Aluminum-to-Copper Connections
Type
Parallel-Groove Clamp
Package Dimensions (L x W x H)
8.25 IN x 7.13 IN x 6.25 IN
Package Dimensions (L x W x H)
20.955 cm x 18.1102 cm x 15.875 cm
Package Weight (Imperial)
0.3300 L
Package Weight (Metric)
0.1500 kg
Parallel Groove Clamp, Aluminum Hardware. Pre-filled with contax inhibitor. Conductor Range 397.5 ACSR - 3/0 STR 2/0 - 6 AR, TAP 2/0 STR - 6 SOL 6 AR.

PAE3921-79-2

Parallel Groove Clamp, Aluminum Hardware. Pre-filled with contax inhibitor. Conductor Range 397.5 ACSR - 3/0 STR 2/0 - 6 AR, TAP 2/0 STR - 6 SOL 6 AR.
