ABB - Installation Products MSA05016 - Steel Liquidtight Adapter, 1/2 Inch NPT Thread to Thread Size 7/8 Inch-20 UNEF-2B

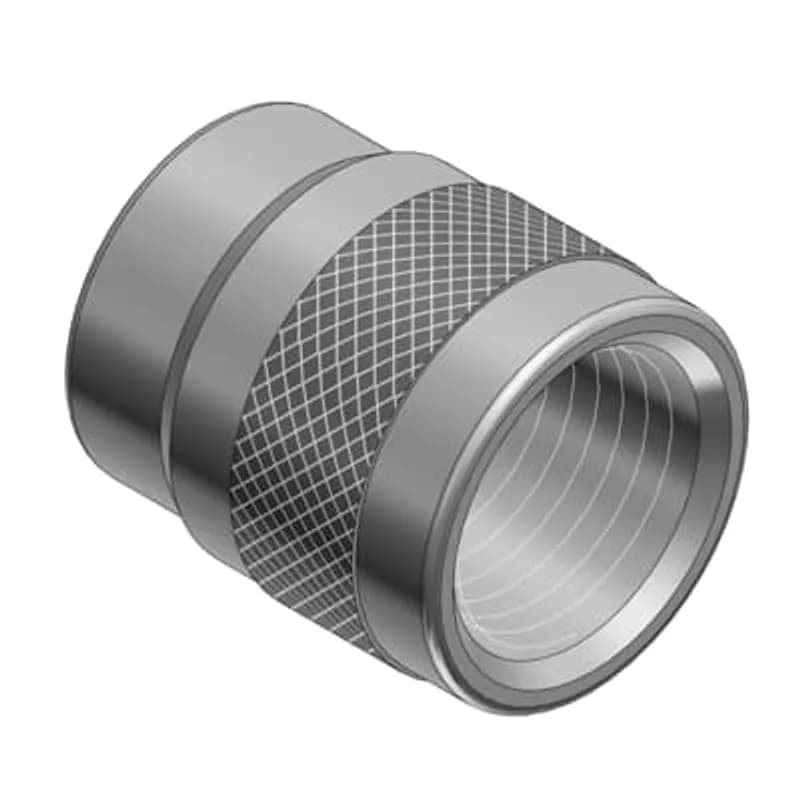

ABB Installation Products MSA05016 Steel Liquidtight Adapter, 1/2 Inch NPT Thread to Thread Size 7/8 Inch-20 UNEF-2B

UPC: 786210793542


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB MSA05016 Steel Liquidtight Adapter provides a secure, corrosion-resistant transition between 1/2" NPT threaded rigid or flexible metallic conduit and 7/8"-20 UNEF-2B threaded equipment entries. Designed for liquidtight flexible metallic conduit (LFMC) systems per NEC Article 350, this adapter ensures a watertight seal in demanding industrial environments. Key specifications include a 1.000" overall length (dimension A) and 1.175" mounting depth (dimension B). The adapter features a 1/2" NPT male thread for conduit connection and a 7/8"-20 UNEF-2B female thread for equipment entry. Constructed from durable steel, it resists corrosion and withstands mechanical stress in high-vibration applications, outperforming plastic alternatives in durability. Suitable for commercial, industrial, and hazardous locations (Class I Div. 2; Class II Div. 1 & 2; Class III Div. 1 & 2), the MSA05016 is ideal for machine tool wiring, control panels, outdoor equipment, and industrial machinery requiring reliable conduit-to-equipment transitions. Its threaded design simplifies installation and maintenance while maintaining system integrity.
  • 1/2" NPT male thread to 7/8"-20 UNEF-2B female thread
  • Steel construction for corrosion resistance and durability
  • 1.000" overall length (dimension A) and 1.175" mounting depth (dimension B)
  • Suitable for LFMC systems per NEC Article 350
  • Compatible with hazardous locations: Class I Div. 2; Class II Div. 1 & 2; Class III Div. 1 & 2

Specifications

Application
Suitable for Use In Hazardous Location Where General Purpose Equipment is Specifically Permitted by the NEC, Class I Div 2, Class II Div 1 & 2, Class III Div 1 & 2, NEC 501-4(B), 502-4(A)(B), 503-3(A)(B)
Connection Type
Threaded
Material
Steel
Material
Aluminum
Series
MSA
Size
1/2 Inch
Size
1/2" NPT to 7/8"-20 UNEF-2B
Standard
UL Listed, CSA
Type
Adapters
Package Dimensions (L x W x H)
3.3 IN x 2.8 IN x 2.3 IN
Package Dimensions (L x W x H)
8.382 cm x 7.112 cm x 5.842 cm
Package Weight (Imperial)
0.0400 L
Package Weight (Metric)
0.0180 kg
1/2 Inch 90 Degree Aluminum Liquidtight Connector, Non-insulated

5252AL

1/2 Inch 90 Degree Aluminum Liquidtight Connector, Non-insulated
Steel Liquidtight Adapter, 1/2 Inch NPT Thread to Thread Size 3/4 Inch-20 UNEF-2B

MSA05014

Steel Liquidtight Adapter, 1/2 Inch NPT Thread to Thread Size 3/4 Inch-20 UNEF-2B
Steel Liquidtight Adapter, 1/2 Inch NPT Thread to Thread Size 1 Inch-20 UNEF-2B

MSA05018

Steel Liquidtight Adapter, 1/2 Inch NPT Thread to Thread Size 1 Inch-20 UNEF-2B
Steel Liquidtight Adapter, 3/4 Inch NPT Thread to Thread Size 1 Inch-20 UNEF-2B

MSA07520

Steel Liquidtight Adapter, 3/4 Inch NPT Thread to Thread Size 1 Inch-20 UNEF-2B
Steel Liquidtight Adapter, 1 Inch NPT Thread to Thread Size 1-3/16 Inch-18 UNEF-2B

MSA10020

Steel Liquidtight Adapter, 1 Inch NPT Thread to Thread Size 1-3/16 Inch-18 UNEF-2B
3/8 Inch Steel Liquidtight Adapter, Thread Size 3/4 Inch-20 UNEF-2B, Rigid Conduit to Metric

LTA03814

3/8 Inch Steel Liquidtight Adapter, Thread Size 3/4 Inch-20 UNEF-2B, Rigid Conduit to Metric
1/2 Inch Steel Liquidtight Adapter, Thread Size 7/8 Inch-20 UNEF-2B, Rigid Conduit to Metric

LTA05016

1/2 Inch Steel Liquidtight Adapter, Thread Size 7/8 Inch-20 UNEF-2B, Rigid Conduit to Metric
1/2 Inch Steel Liquidtight Adapter, Thread Size 1 Inch-20 UNEF-2B, Rigid Conduit to Metric

LTA05018

1/2 Inch Steel Liquidtight Adapter, Thread Size 1 Inch-20 UNEF-2B, Rigid Conduit to Metric

Frequently Asked Questions

What conduit size does the MSA05016 adapter support?

The MSA05016 adapter supports 1/2" NPT threaded rigid or flexible metallic conduit.

What equipment thread size does the MSA05016 adapter accept?

The adapter features a 7/8"-20 UNEF-2B female thread for equipment entry.

What are the dimensions of the MSA05016 adapter?

The adapter has an overall length of 1.000" (dimension A) and a mounting depth of 1.175" (dimension B).

Is the MSA05016 adapter suitable for hazardous locations?

Yes, the adapter is suitable for hazardous locations including Class I Div. 2; Class II Div. 1 & 2; Class III Div. 1 & 2.

What is the material of the MSA05016 adapter?

The adapter is constructed from durable steel for corrosion resistance and durability.
