Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview

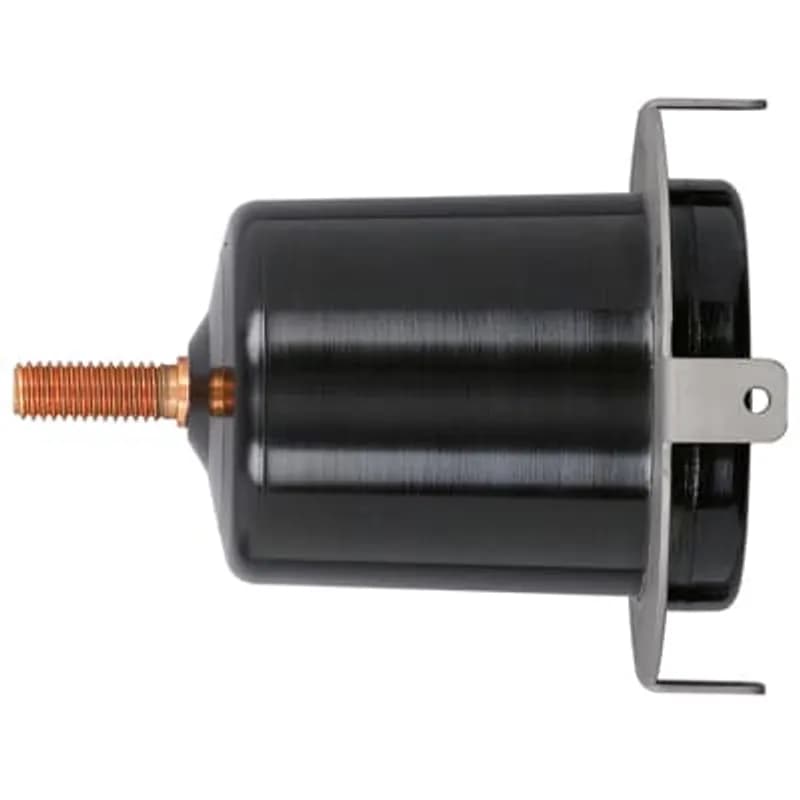

- 35kV, 200A rated for medium-voltage applications
- 2-3/4 inch bushing shank length for secure transformer/switchgear mounting
- Replaceable well stud for reduced maintenance and downtime
- Integrated bail tabs for safe handling during installation/removal
- Conductive rubber shield ensures fully-shielded cable-to-apparatus connection
- Stainless steel flange resists corrosion and supports external clamping or welding
- Epoxy construction with high physical, electrical, and chemical resistance
- Compatible with Elastimold non-loadbreak, loadbreak, and feed-thru bushing inserts
- Meets ANSI/IEEE Standard 386 dimensional criteria for proper fit
- Designed for in-oil and SF6 applications in pad-mounted, vault-type, and submersible transformers, as well as switchgear
Specifications
Application | 35 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Short Shank Well |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.9500 L |
Package Weight (Metric) | 0.4310 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
K1601-PC-T2
15/25kv, Long Shank Well Without Bail Tabs and Non-Replaceable Well Stud (9-1/4 inch Bushing Shank Length), top mount
K1601-PC-T1
15/25kv, Long Shank Well with Bail Tabs and Non-Replaceable Well Stud (9-1/4 inch Bushing Shank Length)
Frequently Asked Questions
What is the L1601PC-S1 bushing well designed for?
The L1601PC-S1 bushing well is designed for in-oil and SF6 applications, accepting various Elastimold bushing inserts. It mounts directly in electrical apparatus on 200-Amp systems up to 35kV.
What is the BIL impulse withstand rating?
The BIL impulse withstand rating is 150kV (1.2 x 50 microsecond wave).
Is a removable stud well design available?
Yes, the bushing well is also available in a removable stud well design, indicated by adding the suffix "-R" to the style number.
What shank lengths are available for the bushing well?
The bushing wells are available in shank lengths varying from 2.75 inches to 9.25 inches.
Does the bushing well meet industry standards?
Yes, the bushing well meets ANSI/IEEE Standard 386, Latest Revision, and its interface meets ANSI/IEEE 386 dimensional criteria.
How is the bushing well mounted to apparatus?
The bushing well has a stainless steel flange that allows for welding or external clamping to the electrical apparatus.
What is the momentary current rating?
The momentary current rating is 25kA Symmetrical for 10 Cycles.
What is the continuous current rating?
The continuous current rating for the bushing well is 600 Amps.
What is the maximum operating voltage for this bushing well?
The maximum phase-to-ground operating voltage for the 35kV voltage class is 21.1kV. The maximum phase-to-phase voltage is 36.6kV.
What are the typical applications for the L1601PC-S1?
Typical applications include pad-mounted, vault-type, and submersible transformers, as well as switchgear.
How to Weld ELASTIMOLD Apparatus Bushings and Bushing Wells
This guide provides recommended procedures and safety guidelines for welding ELASTIMOLD apparatus bushings and bushing wells, focusing on minimizing heat to maintain epoxy integrity during the process.
Estimated time: 1h
Tools needed:
TIG Welding Equipment, MIG Welding Equipment, Thermocouple Detectors, Cleaning Supplies
Supplies needed:
No. 308 bare stainless steel wire, Copper heat sinks, Thermally conductive paste, HV insulated caps or connectors
- Prepare Apparatus and Components
Ensure all apparatus is de-energized before beginning installation or removal of parts. Inspect all components for damage, proper rating, and compatibility with mating parts. Remove any protective shipping covers and replace them with appropriate HV insulated caps or connectors. DANGER: All apparatus must be de-energized during installation or removal of part(s). Failure to follow these instructions will result in damage to the product and serious or fatal injury.
- Clean Surfaces and Set Up Heat Sinks
Thoroughly clean all surfaces of the tank, bushing, and bushing well to remove any contamination like paint or grease. Install copper heat sinks, applying thermally conductive paste at the contact face with the flange and cover. Ensure proper venting for the heat sinks. Do not thread heat sinks to the bushing or bushing well stud. WARNING: Excessive heating of the epoxy can affect the integrity of the bushing. Do not thread heat sink to bushing or bushing well stud as expansion due to heat may affect the integrity of these parts.
- Perform Welding Operation
Use either inert-gas, tungsten-arc (TIG) or short-arc (MIG) welding processes with No. 308 bare stainless steel wire. Keep heat to a minimum during welding; the visible heat line should not exceed 1/8 inch from the weld or 3/16 inch from the O.D. of the flange. Minimize air currents in the welding area to avoid disturbing the gas atmosphere. WARNING: Keep heat to a minimum to prevent damage to the epoxy.
- Monitor Temperature and Cool
Monitor temperatures at critical points, ensuring they do not exceed 225°F. If using non-water cooled heat sinks, remove them promptly after welding and air cool the bushing to prevent heat flow back into the bushing. Minimize forces applied to the heated stud and flange during and after welding. Do not apply torque to the epoxy when making any bus bar connection. WARNING: Non-water cooled heat sinks must not be left on too long as heat will flow back into the bushing.
