UPC: 783786666171
Contact for Pricing

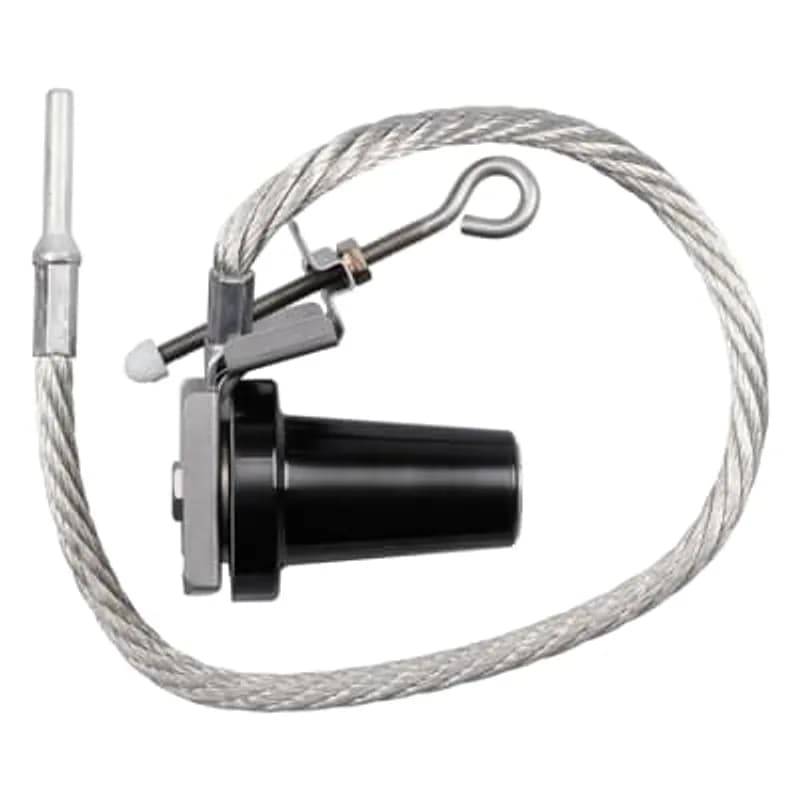

Overview
- 15/25kV operating voltage rating
- 600 Series Deadbreak Grounding Plug
- Integrated ground lead: 1/0 AWG x 27.48 inches
- Manufactured by ABB Installation Products
- Designed for safe grounding applications
Specifications
Application | Grounding Plug is designed to ground a cable terminated with a 600 ampere elbow |
Material | Stainless Steel Mounting Bracket |
Series | 600 Series |
Size | Ground Lead 1/0 AWG x 27.48 inches, 2.29 foot, 697mm. Plug has 3 inch Diameter and is 3.88 inches long (98.5mm) |
Size | 1/0 AWG x 27.48 inches |
Special Features | Fully Rated 15/25kV, 600 Amps Deadbreak Grounding Plug. Allows visible external separation and grounding. Stainless Steel Bracket. Hot Stick Operable. 2.29 Foot (27.48 inch or 697mm) 1/0 AWG Grounding Cable |
Standard | ANSI/IEEE Standard 386 |
Type | Grounding Plug |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.5000 L |
Package Weight (Metric) | 1.5880 kg |
Frequently Asked Questions
What is the voltage rating of the ABB 650GP grounding plug?
The ABB 650GP grounding plug has an operating voltage rating of 15/25kV.
What is the size and length of the ground lead on the 650GP?
The ground lead on the 650GP is 1/0 AWG and measures 27.48 inches in length.
Who manufactures the 650GP deadbreak grounding plug?
The 650GP deadbreak grounding plug is manufactured by ABB - Installation Products.
What series does the ABB 650GP grounding plug belong to?
The ABB 650GP grounding plug belongs to the 600 Series.
How to Install the 650GP and 750GP Deadbreak Grounding Plug
This guide provides instructions for installing the 650GP and 750GP Deadbreak Grounding Plug, designed to ground a cable terminated with a 600 ampere elbow. It covers connecting to system ground, attaching to a parking stand, and connecting the de-energized elbow.
Estimated time: 30m
Tools needed:
Hotstick
Supplies needed:
Grounding Plug, Mounting hardware, Lubricant
- Connect to System Ground and Lubricate
DANGER: All apparatus must be de-energized during installation. Connect the flexible lead of the grounding plug to system ground, ensuring enough slack to operate with a hotstick. Clean the interface of the grounding plug and lubricate this surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute. Always replace the protective cap when the grounding plug is not in use.
- Attach Hotstick and Mount in Parking Stand
Attach a hotstick to the eye of the grounding plug carriage assembly. Slide the carriage assembly into the parking stand.
- Connect De-energized Elbow to Grounding Plug
DANGER: Follow the applicable instructions for the (K)655LR /755LR to determine that the elbow connector is de-energized before removing it from the apparatus bushing. Remove the elbow connector from the apparatus bushing and place it onto the grounding plug. DO NOT REMOVE THE ELBOW CONNECTOR IF IT IS ENERGIZED.
