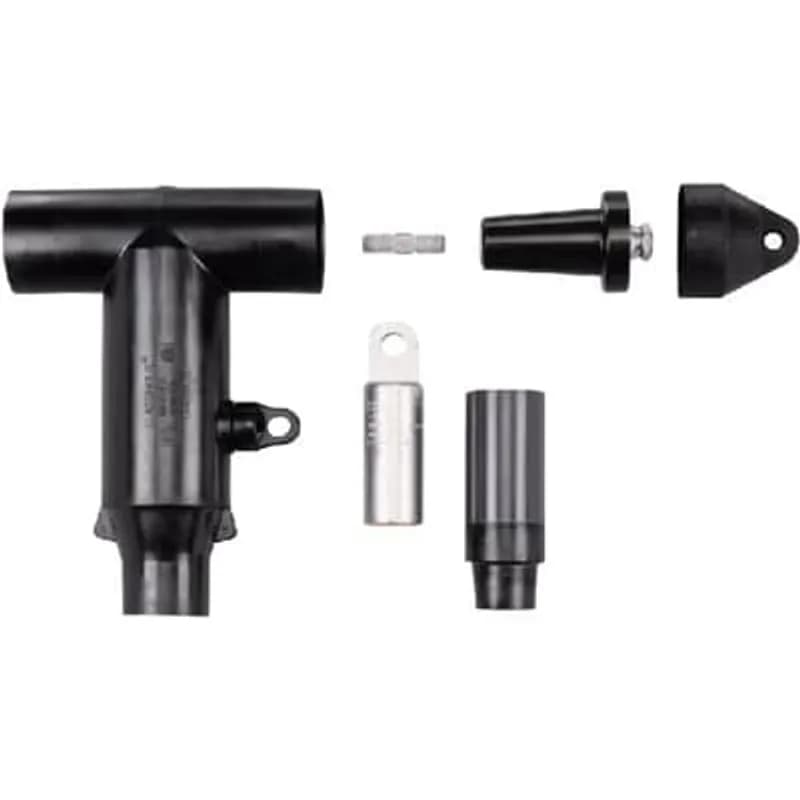

ABB - Installation Products K676LR-N2380 - 900 Amp, Elbow Connector, with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, 15/25KV, Cable Insulation Diameter 1.515 inch to 1.780 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 700/750 or Compacted/Solid 900.

ABB Installation Products K676LR-N2380 900 Amp, Elbow Connector, with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable…

UPC: 075114378604


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K676LR-N2380 is a 900 Amp, 15/25kV deadbreak elbow connector engineered for fully shielded, dead-front submersible cable connections to high-voltage apparatus. It supports conductor sizes from #2 AWG to 1250 kcmil (aluminum or copper) and cable insulation diameters from 0.640 inches to 1.935 inches, making it suitable for medium-voltage applications up to 28kV phase-to-phase. Key features include a non-corrosive, capacitive test point for safe circuit testing without de-energization, a fully shielded and submersible molded rubber housing with 100% peroxide-cured EPDM materials, and a copper compression lug for secure electrical connections. The connector is designed for easy installation and disconnection using standard hand tools in a de-energized state. Optional accessories enable visible external separation, bypass, isolation, dead-ending, grounding, and testing, as well as adding taps, surge arrestors, and fault current indicators. The K676LR-N2380 package includes the elbow connector housing, copper compression lug, copper stud, insulated plug with cap, lubricant tubes, cable adapter, and installation instructions. It is optimized for high-reliability power distribution in critical infrastructure, including utility substations, industrial facilities, and renewable energy installations where medium-voltage cable connections demand robust, maintenance-free performance. The connector's deadbreak design ensures safe operation in energized or de-energized states, reducing downtime during maintenance or testing.
  • Supports 15/25kV voltage class (up to 28kV phase-to-phase)
  • Cable insulation diameter range: 0.640" to 1.935" (16.26mm to 49.15mm)
  • Includes test point for safe circuit testing without de-energization
  • Includes test point, insulated plug, cap, stud, and cable adapter

Specifications

Amperage Rating
900 A
Application
Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus
Color
Black
Conductor Range
700 to 750 kcmil , 900 kcmil
Connection
Compression
Connection Type
Compression Lug
Current Rating
900 A
Environmental Conditions
All Weather Conditions
Insulation
True
Length
13 in
Length
330.2 mm
Material
Copper
Material
Housing - EPDM-Rubber
Series
K676LR
Size
Cable Insulation Diameter 1.515 inch to 1.780 inch
Special Features
Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and Equipment in a de-energized State. Non-Corrosive Capacitive Test Point
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Elbow Connector with Test Point
Voltage Rating
15/25 kV
Voltage Rating
15.25 kV
Width
10.36 in
Width
263.144 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
600 Amp, 15KV, Stick Op Connector Kit, Fixed Bolt, Insulating Cap, Stick Op Load Break Reducing Tap Plug, Elbow Housing, Cable Adapter and Threaded Lug, Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

655LRTPFB-M5380-DRG

600 Amp, 15KV, Stick Op Connector Kit, Fixed Bolt, Insulating Cap, Stick Op Load Break Reducing Tap Plug, Elbow Housing, Cable Adapter and Threaded Lug, Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
600 Amp, 2 Way L Kit, DeadBreak, 15/25KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. Cold-Shrinkable Jacket Seal Included.

K655L2-M0380-S

600 Amp, 2 Way L Kit, DeadBreak, 15/25KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. Cold-Shrinkable Jacket Seal Included.
600 Amp, Test and Ground Connector Kit, 25KV, Capacitive Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.

K656ETP-K0300-DRG

600 Amp, Test and Ground Connector Kit, 25KV, Capacitive Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.
600 Amp, Test and Ground Connector Kit, 25KV, Capacitive Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

K656ETP-K0270

600 Amp, Test and Ground Connector Kit, 25KV, Capacitive Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
600 Amp, DeadBreak Elbow Connector, 2-Way L Kit, 35KV, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43. Cold-Shrinkable Jacket Seal Included.

755L2-K0250-S

600 Amp, DeadBreak Elbow Connector, 2-Way L Kit, 35KV, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43. Cold-Shrinkable Jacket Seal Included.
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Aluminum Conductor size 2/0 AWG Stranded/Compressed, 3/0 AWG Solid/Compact.

168FLR3B0250

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Aluminum Conductor size 2/0 AWG Stranded/Compressed, 3/0 AWG Solid/Compact.
600 Amp, Dead Break, Elbow Connector, Cam-Op Connector Kit, 15KV, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

655LINKCLRJ0270BDRG

600 Amp, Dead Break, Elbow Connector, Cam-Op Connector Kit, 15KV, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
600 Amp, DeadBreak Elbow Connector, 2-Way L Kit, 35KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185. Cold-Shrinkable Jacket Seal Included.

755L2-M0300-S

600 Amp, DeadBreak Elbow Connector, 2-Way L Kit, 35KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185. Cold-Shrinkable Jacket Seal Included.

How to Install Elastimold Deadbreak Elbow Connectors

This guide provides step-by-step instructions for the safe and proper installation of Elastimold 655/675LR and K655/K675LR Deadbreak Elbow Connectors on high voltage apparatus.

Estimated time: 1h 30m

Tools needed:

Wire strippers, Wire brush (for aluminum conductors), Crimping tool, Hotstick, Suitable voltage sensing device, Suitable grounding connector

Supplies needed:

Elbow connector, Cable adapter, Compression lug, Insulating plug, Lubricant, Stud prepack, No. 14 AWG Copper wire (or equivalent), Protective caps (for elbow and mating part), Silicone lubricant

  1. Prepare Cable and Ensure Safety

    DANGER: De-energize all apparatus before installation. Do not touch or move energized products. Assemble cable with slack. Unwind concentric neutral wires. Cut cable 1-3/4” (45mm) from mating product centerline. Clean cable outer surface 24” (610mm). Remove outer jacket (if applicable) and prepare cable per instructions, ensuring correct insulation and semi-con shield dimensions.

  2. Assemble Cable Adapter and Lug

    Bevel cable insulation end at 45 degrees, 1/4” (6mm) back. Clean and lubricate insulation towards semi-con shield. Install cable adapter, small end first, flush with tape marker. Remove protruding insulation, cutting even with adapter. Ensure exposed conductor is 4-1/4” to 4-9/16” (108mm-116mm). Insert conductor fully into compression lug (wire brush aluminum first). Crimp lug per instructions. Wipe excess inhibitor. Verify lug to adapter distance is 6-3/8” to 7-1/8” (162mm-181mm).

  3. Install Elbow and Connect Mating Parts

    Lubricate cable adapter and elbow entrance. Install elbow onto adapter until it cannot advance, ensuring adapter is flush with tape marker. Remove tape marker. Remove protective caps from elbow and mating part. Hand tighten threaded stud (if needed) into mating part. Clean and lubricate elbow and mating part. Push elbow onto mating part, aligning lug hole with stud. Clean and lubricate opposite mating part. Insert into elbow, engage threads, and torque per instructions. If using insulating plug, clean/lubricate cap and place on elbow until it snaps.

  4. Ground Cable and Perform Voltage Test

    Insert No. 14 AWG Copper wire (or equivalent) through grounding eye, twist loop, and connect to ground. Ground cable shield via device or alternate method. Waterproof cable jacket. CAUTION: For 600-amp L-Kits, tighten components to specified torque. VOLTAGE TEST: Remove test point cap with hotstick (peel at angle). WARNING: Use suitable sensing device for capacitive test point; do not use conventional equipment. Treat as energized until 'no voltage' is confirmed by other means. Clean/lubricate cap with silicone lubricant and replace.
