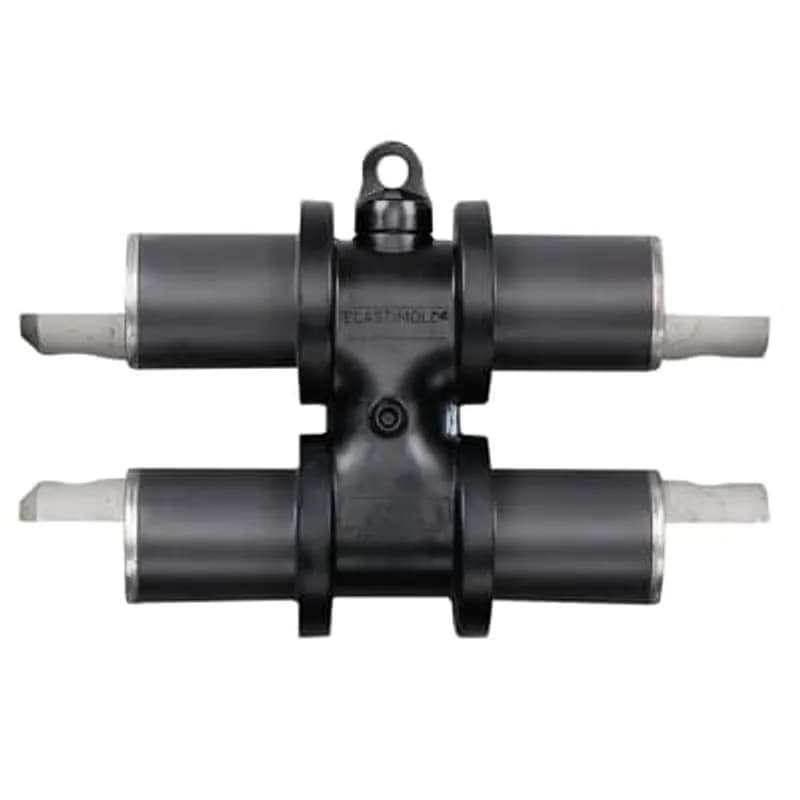

ABB - Installation Products K676CH-BUS - 15/25kV 900 Amp Series Deadbreak 4-Way Insulated Bus Bar Splice with Test Point. Plated Copper Components.

ABB Installation Products K676CH-BUS 15/25kV 900 Amp Series Deadbreak 4-Way Insulated Bus Bar Splice with Test Point. Plated…

UPC: 075114341387


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K676CH-BUS is a 4-way deadbreak bus bar splice designed for medium-voltage applications up to 25 kV and 900 A continuous current. Engineered with plated copper components, this splice ensures reliable electrical conductivity and corrosion resistance in harsh environments. The deadbreak design allows for safe, energized connections without de-energizing the system, making it ideal for maintenance and expansion work on medium-voltage switchgear and distribution systems. Key features include a 4-way configuration for branching multiple circuits, an integrated test point for diagnostic measurements, and durable plated copper construction for long-term performance. The splice is rated for 15/25 kV systems, providing flexibility across a range of utility and industrial applications. Typical uses include power distribution in substations, renewable energy integration, and industrial facility upgrades where reliable, high-current splicing is required. This product is part of ABB’s Installation Products line, known for precision-engineered components that meet stringent electrical and mechanical standards. The K676CH-BUS is a direct replacement for existing deadbreak splices in medium-voltage systems, offering a tested and certified solution for critical infrastructure. Compliance with industry standards ensures compatibility with ABB and third-party switchgear, reducing installation time and minimizing downtime during system modifications.
  • Voltage rating: 15/25 kV for medium-voltage applications
  • Current rating: 900 A continuous current capacity
  • 4-way configuration for branching multiple circuits
  • Integrated test point for diagnostic measurements
  • Plated copper components for corrosion resistance and conductivity

Specifications

Amperage Rating
900 A
Color
Black
Connection
Compression
Enclosure
Yes
Insulation
Yes
Material
EPDM Rubber
Number of Conductors
4
Special Features
Test Point
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
4-Way Splice
Voltage Rating
15 to 25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
22.0400 L
Package Weight (Metric)
9.9970 kg
69 kv, Transmission Cable Joint, Housing Type - Non-Shieldbreak, Housing Style 1, Housing Size Q Bore Diameter at Jacket/Insulation Transition 1.750. Connector Type - Copper, Connector Code 31P - Conductor Diameter Range - .687-.745 inch (17.45-18.92mm), Heatsink Size/Bore - Q - 1.625 inch Diameter. Type Shield - A - Copper Tape, Metallic Screen Continuity Kit - V - #2 Flat Braid 6 foot quantity 1, Armor Kit - N - not required, Outer Jacket Restoration Kit - B - HeatShrink

69TCJN1Q231PQAVNB

69 kv, Transmission Cable Joint, Housing Type - Non-Shieldbreak, Housing Style 1, Housing Size Q Bore Diameter at Jacket/Insulation Transition 1.750. Connector Type - Copper, Connector Code 31P - Conductor Diameter Range - .687-.745 inch (17.45-18.92mm), Heatsink Size/Bore - Q - 1.625 inch Diameter. Type Shield - A - Copper Tape, Metallic Screen Continuity Kit - V - #2 Flat Braid 6 foot quantity 1, Armor Kit - N - not required, Outer Jacket Restoration Kit - B - HeatShrink
15kV, Power Cable Joint, Single Piece Housing. Cable Insulation Diameter .980 to 1.050 inches. Copper Conductor. Conductor Size 320 - 450 - 550kcmil. No Sealing Kit.

15PCJ1J2320

15kV, Power Cable Joint, Single Piece Housing. Cable Insulation Diameter .980 to 1.050 inches. Copper Conductor. Conductor Size 320 - 450 - 550kcmil. No Sealing Kit.
25kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Conductor. Conductor Size AWG Stranded 500 kcmil.

25PCJ2K2330

25kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Conductor. Conductor Size AWG Stranded 500 kcmil.
25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Conductor. Conductor Size AWG Stranded 4/0 or Solid 250 kcmil.

25PCJ1-G1270

25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Conductor. Conductor Size AWG Stranded 4/0 or Solid 250 kcmil.
25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Conductor. Conductor Size kcmil Stranded-Compressed 500, Solid-Compact 600.

25PCJ1K2330

25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Conductor. Conductor Size kcmil Stranded-Compressed 500, Solid-Compact 600.
15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Side 1 - Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Conductor. Conductor Size AWG Stranded/Compressed #2 or Solid/Compact #1. Side 2 - Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Conductor. Conductor Size AWG Stranded/Compressed #3 or Solid/Compact #2. Length 16.38 inch x 2.78 inch Diameter.

15PCJ2-G1220-F1210

15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Side 1 - Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Conductor. Conductor Size AWG Stranded/Compressed #2 or Solid/Compact #1. Side 2 - Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Conductor. Conductor Size AWG Stranded/Compressed #3 or Solid/Compact #2. Length 16.38 inch x 2.78 inch Diameter.
69 kv, Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style 4, Housing Size 4, Connector type Copper/no connector required, Connector Code 47P - Conductor Diameter Range - 1.378-1.425 inch (35.00-36.19mm), Heatsink Size 5 - Outside Diameter 2.750 inch ( 69.85mm), Heatsink Bore - M - 1.468 inch Diameter. Type Shield - A - Copper Tape, Metallic Screen Continuity Kit - N - not required, Armor Kit - N - not required, Outer Jacket Restoration Kit - B - Heat Shrink standard package

69TCJS44247P5MANNB

69 kv, Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style 4, Housing Size 4, Connector type Copper/no connector required, Connector Code 47P - Conductor Diameter Range - 1.378-1.425 inch (35.00-36.19mm), Heatsink Size 5 - Outside Diameter 2.750 inch ( 69.85mm), Heatsink Bore - M - 1.468 inch Diameter. Type Shield - A - Copper Tape, Metallic Screen Continuity Kit - N - not required, Armor Kit - N - not required, Outer Jacket Restoration Kit - B - Heat Shrink standard package
15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. (K) Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Conductor. Conductor Size 330 - AWG Stranded 500. (H) Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Conductor. Conductor Size 270 - 4/0 Stranded/Compressed or 250 kcmil Solid/Compact. Cold-Shrinkable Jacket Seal Included.

15PCJ2K1330-H1270-S

15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. (K) Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Conductor. Conductor Size 330 - AWG Stranded 500. (H) Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Conductor. Conductor Size 270 - 4/0 Stranded/Compressed or 250 kcmil Solid/Compact. Cold-Shrinkable Jacket Seal Included.
