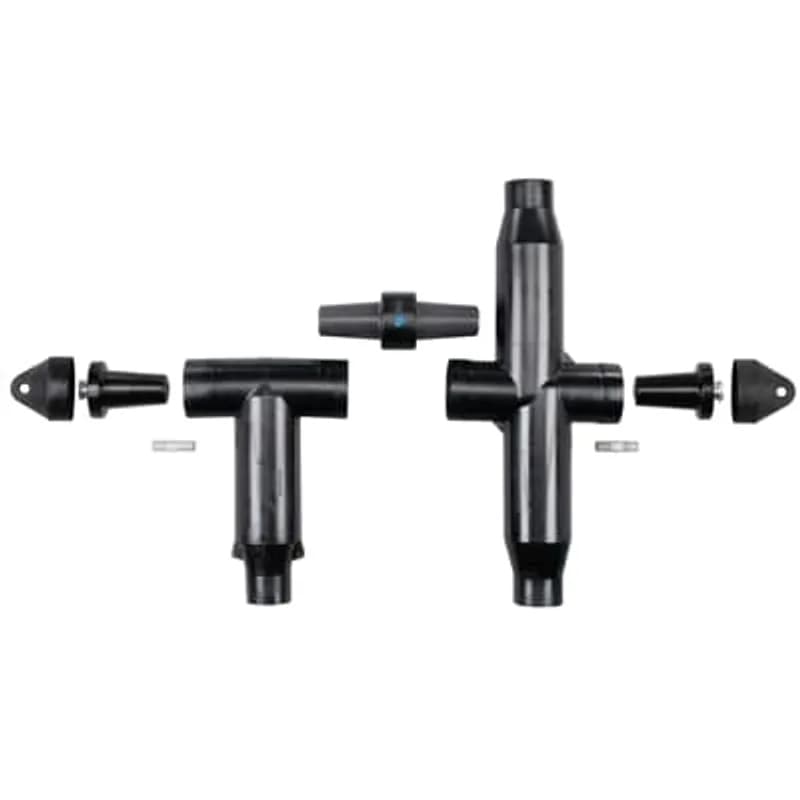

ABB - Installation Products K675VS-L3 - 900 Amp, 15/25kV, Deadbreak, 3-Way VS Kit, Does not include cable adapters or compression lugs, these items must be ordered separately.

ABB Installation Products K675VS-L3 900 Amp, 15/25kV, Deadbreak, 3-Way VS Kit, Does not include cable adapters or…

UPC: 783786561872


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K675VS-L3 is a 3-way deadbreak VS kit designed for high-voltage applications. This kit is rated for 900 Amps and operates at 15/25kV, making it suitable for demanding electrical distribution systems. The deadbreak design ensures a safe and reliable connection, crucial for maintaining power continuity. This specific kit, SKU K675VS-L3, is manufactured by ABB - Installation Products. It is important to note that this kit does not include cable adapters or compression lugs. These essential components must be ordered separately to ensure complete system functionality and proper installation. The UNSPSC code for this product is 26121630. When specifying components for your electrical infrastructure, the K675VS-L3 offers a robust foundation for deadbreak connections within its specified voltage and current ratings. Proper selection and integration of compatible cable adapters and lugs are paramount for safe and efficient operation. This kit is a key component for utility and industrial power distribution networks requiring reliable deadbreak termination solutions.
  • 900 Amp current rating
  • 15/25kV operating voltage
  • 3-way deadbreak configuration
  • ABB - Installation Products manufacturer
  • Cable adapters and compression lugs must be ordered separately

Specifications

Application
15/25 kV, 900 Amps
Connection
Compression
Connection Type
Deadbreak
Current Rating
900 A
Material
Copper
Poles
3-Way
Series
K675VS
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
3-Way Vault Stretcher Kit
Voltage Rating
15/25kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
900 Amp, 35kV, 600 Series Elbow with Test Point Housing only, with Stud.

776BLR

900 Amp, 35kV, 600 Series Elbow with Test Point Housing only, with Stud.
600 Amps, Dry Type, Long Shank Bushing for Air Applications

K600-TBC

600 Amps, Dry Type, Long Shank Bushing for Air Applications
900 Amp, 25kV, Test and Ground Connector Kit, Elbow Tap Plug, with Factory Assembled Stud.

K675ETPSP

900 Amp, 25kV, Test and Ground Connector Kit, Elbow Tap Plug, with Factory Assembled Stud.
900 Amp, 15/25kV, Deadbreak, 3-Point Junction

K675-J3

900 Amp, 15/25kV, Deadbreak, 3-Point Junction
600 Amp, 15/25kV, Insulated Cap with Test Point, with Stud.

K676DR

600 Amp, 15/25kV, Insulated Cap with Test Point, with Stud.
Access Receptacle with 15-25kV 600 Amp Series Stainless Steel Bolt Washers (650BAW)

K655YBASR

Access Receptacle with 15-25kV 600 Amp Series Stainless Steel Bolt Washers (650BAW)
600 Amp, 15/25 KV, Elbow, with Test Point Housing only, Without Stud

K656BLRN

600 Amp, 15/25 KV, Elbow, with Test Point Housing only, Without Stud
15/25kV 600 Series Deadbreak Insulated Plug (with Cap), Loose Stud.

K650BIPS

15/25kV 600 Series Deadbreak Insulated Plug (with Cap), Loose Stud.

Frequently Asked Questions

What is the current rating of the K675VS-L3 kit?

The ABB K675VS-L3 kit has a current rating of 900 Amps.

What is the voltage rating for this deadbreak VS kit?

This deadbreak VS kit is rated for 15/25kV.

Does the K675VS-L3 kit include cable adapters?

No, the K675VS-L3 kit does not include cable adapters. These must be ordered separately.

Are compression lugs included with the K675VS-L3 kit?

No, the K675VS-L3 kit does not include compression lugs. These must be ordered separately.

What type of deadbreak configuration does the K675VS-L3 offer?

The K675VS-L3 offers a 3-way deadbreak configuration.

How to Install the Elastimold 655VS / K655VS Deadbreak Vault Stretcher

This guide provides step-by-step instructions for the safe installation and wiring of the Elastimold 655VS or K655VS Deadbreak Vault Stretcher, designed for high voltage cable connections and splicing 600-ampere systems.

Estimated time: 2h

Tools needed:

Wire brush, Crimping tool, Cutting tool, Measuring tape, 5/8 inch bolt, Torque wrench, Wire strippers

Supplies needed:

Vault Stretcher, Cable Adapters, Compression Lugs, Insulating Plugs, Lubricant, Stud Prepack, Cleaning supplies, Tape marker, No. 14 AWG copper wire, Suitable grounding connectors, Mating parts (e.g., apparatus bushing, connecting plug), Protective caps

  1. De-energize and Inspect Components

    Before starting, ensure all apparatus in the work area are de-energized. Do not touch or move energized products. Inspect all package contents and components for damage, proper rating, and compatibility with mating parts. This product must be installed by competent personnel trained in high voltage electrical equipment safety practices.

  2. Prepare Cables

    For concentric neutral cable, overlap both cables and cut to 14 inches (355mm) from the joint centerline, bending back the neutral wires. Clean the outer surface of the cable for a distance of 24 inches (610mm) or up to the bent-back neutrals. Follow the appropriate cable preparation steps (refer to the document for specific cable types) to remove the outer jacket, semi-con shield, and prepare the cable insulation as shown in the diagrams.

  3. Install Cable Adapter and Prepare Conductor

    Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker. Remove any protruding cable insulation by cutting it even with the end of the cable adapter, ensuring not to nick the adapter or conductor. The exposed conductor length must be between 4-3/8 inches and 4-11/16 inches (111mm-119mm).

  4. Crimp Compression Lugs

    For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it into the compression lug. Measure the 'Check Dimension' (it should be less than 6-1/2 inches). Align the flat portions of the compression connector using a 5/8-inch bolt as a temporary locator. Make the first crimp connection 3-1/2 inches from the open end of the compression fitting at the indicated mark. Rotate each successive crimp 180 degrees to prevent bowing. Carefully wipe excess inhibitor from the connector and cable insulation. Verify the connector end length is 6-1/2 to 7-1/4 inches (165 to 184mm) and remove any sharp flash.

  5. Install Vault Stretcher Body

    Lubricate the inside of the vault stretcher body and the outside of the cable adapter. Using a rotating motion, slip the body onto the cable adapter, ensuring the compression lug aligns and seats with the inside mating portion. Push the lug until it cannot advance further, with the adapter base aligned with the marking tape. For the opposite cable, push the vault stretcher and compression lug sideways until the lug enters the open end. Slowly push both units to final alignment, ensuring the lubricated adapter slides into proper position. Verify the compression lug is fully seated through the viewing hole and both cable adapters are flush with tape markers. Remove tape markers.

  6. Connect Mating Parts

    Use a special 650VSA stud (1/2 inch longer than standard). Do not connect or disconnect mating products while energized, and do not energize while disconnected. Remove protective caps from the vault stretcher and the mating part. Hand tighten the supplied stud into one mating part. Clean and lubricate the vault stretcher and both mating parts. Insert the mating part for the opposite end, engage threads, and hand tighten. Torque mating parts according to their specific instructions.

  7. Install Voltage Detection Cap (If Applicable) and Ground

    If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap and place it on the elbow, pushing down hard until it snaps into place. For concentric neutral cable, insert one end of a wire (at least No. 14 AWG copper) through each grounding eye and twist to make a small loop. Connect these wires to ground using suitable connectors, ensuring not to damage the eyes.
