ABB - Installation Products K656LR-L0380-SG3 - 15/25kV 600 Amp Series Deadbreak Elbow with Test Point and Sealing Kit (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded 700/750 or Compact/Solid 900. Cold-Shrinkable Jacket Seal with Copper Braid and Constant Force Spring Included.

ABB Installation Products K656LR-L0380-SG3 15/25kV 600 Amp Series Deadbreak Elbow with Test Point and Sealing Kit (with Insulated…

UPC: 075114396646


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

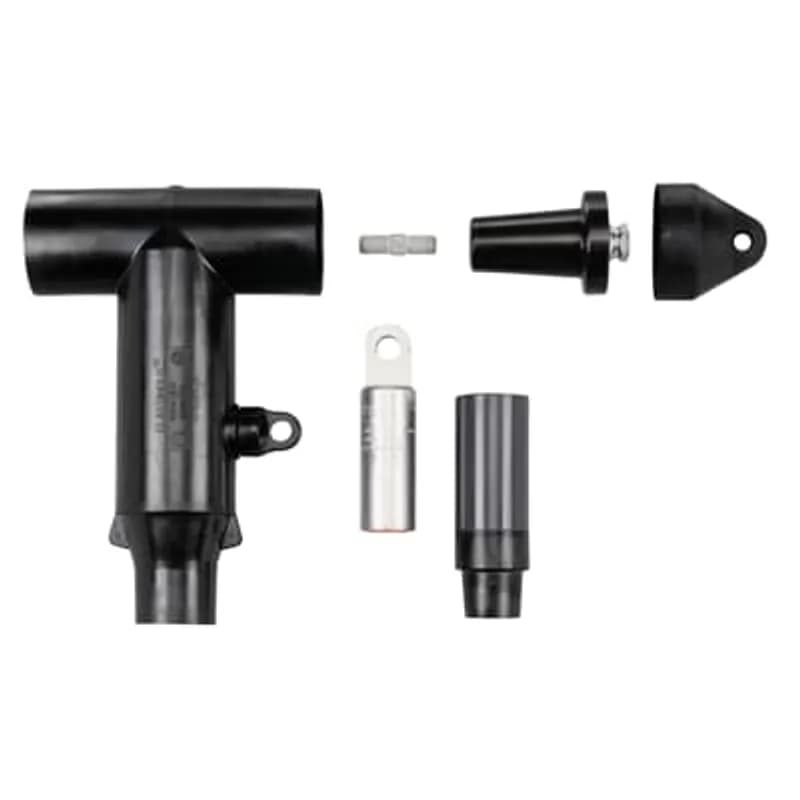

The ABB K656LR-L0380-SG3 is a 15/25kV, 600 Amp Series Deadbreak Elbow designed for reliable power cable termination. This unit features an integrated test point for safe and efficient testing of electrical connections. The elbow is supplied with a comprehensive sealing kit, including an insulated plug, cap, stud, lug, and cable adapter, ensuring a complete and secure installation. The included aluminum compression lug provides a robust connection to the conductor. This deadbreak elbow is engineered to accommodate cable insulation diameters ranging from 1.180 inches to 1.465 inches. It is compatible with compressed/stranded conductors sized at 700/750 kcmil or compact/solid conductors up to 900 kcmil. The cold-shrinkable jacket seal, coupled with a copper braid and constant force spring, ensures a durable and weather-resistant seal, maintaining the integrity of the connection under operational stress. The UNSPSC code for this product is 39121421. Manufacturer: ABB - Installation Products.
  • 15/25kV, 600 Amp Series Deadbreak Elbow
  • Integrated Test Point for safe testing
  • Includes Sealing Kit: Insulated Plug, Cap, Stud, Lug, Cable Adapter
  • Aluminum Compression Lug for conductor connection
  • Accommodates Cable Insulation Diameter: 1.180" - 1.465"
  • Compatible with 700/750 kcmil Compressed/Stranded or 900 kcmil Compact/Solid Conductors
  • Cold-Shrinkable Jacket Seal with Copper Braid and Constant Force Spring

Specifications

Amperage Rating
600 A
Application
15/25kV, 600 Amp Deadbreak Elbow Connection
Color
Black
Conductor Range
700 to 750 kcmil , 900 kcmil
Connection
Compression
Environmental Conditions
Fully Submersible
Insulation
True
Length
13 in
Length
330.2 mm
Material
Housing - EPDM-Rubber
Special Features
Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Elbow Connector with Test Point
Voltage Rating
25 kV
Width
10.36 in
Width
263.144 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
600 Amp, 25kV, Stick-Op Connector Kit. Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

K655LRTP-N0380

600 Amp, 25kV, Stick-Op Connector Kit. Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
15-25kV 600 Series Deadbreak Basic Housing Package Wye Joint with Test Point

K656CY-HP (1)

15-25kV 600 Series Deadbreak Basic Housing Package Wye Joint with Test Point
600 Amp, 15-25kV, 600 Series Deadbreak Straight Receptacle. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 450 kcmil or Compacted Solid 550 kcmil. Includes Cable Adapter, Lug and Retaining Ring.

K655YSR-M0320

600 Amp, 15-25kV, 600 Series Deadbreak Straight Receptacle. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 450 kcmil or Compacted Solid 550 kcmil. Includes Cable Adapter, Lug and Retaining Ring.
600 Amp, 15/25kV, 600 Series Spiking Elbow wih Spiking Contact, Insulating Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.

K655SELRN0410

600 Amp, 15/25kV, 600 Series Spiking Elbow wih Spiking Contact, Insulating Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
600 Amp, 25kV, Deadbreak Stick-Op Replacement Connector Kit. FB - Fixed Bolt.

K655RLRTP-FB

600 Amp, 25kV, Deadbreak Stick-Op Replacement Connector Kit. FB - Fixed Bolt.
600 Amp, 15/25kV, 600 Series Spiking Elbow wih Spiking Contact, Insulating Plug, Cap, Stud, Lug and Cable Adapter.

K655SELR

600 Amp, 15/25kV, 600 Series Spiking Elbow wih Spiking Contact, Insulating Plug, Cap, Stud, Lug and Cable Adapter.
RetroFit Cam-Op Connector Kit, 25kv, 600 Amp, Cable Insulation Diameter 1.180-1.465 inches, Conductor Size 500 Stranded/Compressed, SwitchGear

K655LINKCLR-L0330SWG

RetroFit Cam-Op Connector Kit, 25kv, 600 Amp, Cable Insulation Diameter 1.180-1.465 inches, Conductor Size 500 Stranded/Compressed, SwitchGear
RetroFit Cam-Op Connector Kit, 25kv, 600 Amp, Cable Insulation Diameter 1.090-1.310 inches, Conductor Size 350 Stranded/Compressed, SwitchGear

K655LINKCLR-K0300SWG

RetroFit Cam-Op Connector Kit, 25kv, 600 Amp, Cable Insulation Diameter 1.090-1.310 inches, Conductor Size 350 Stranded/Compressed, SwitchGear

Frequently Asked Questions

What is the continuous current rating for this elbow connector?

The K656LR elbow connector has a continuous current rating of 600 Amps.

What conductor sizes can this elbow connector accommodate?

It can be used with conductor sizes ranging from #2 AWG to 1250 kcmil for both aluminum and copper conductors.

Can this elbow connector be easily connected or disconnected?

Yes, it can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.

What is the acceptable range for cable insulation diameters?

The acceptable insulation diameters for the cable range from 0.640 inches to 1.935 inches.

What is the maximum operating voltage for the 15kV class?

For the 15kV voltage class, the maximum operating voltage is 8.3kV phase-to-ground and 14.4kV phase-to-phase.

What is the momentary current rating for this product?

The product has a momentary current rating of 25kA Sym for 10 Cycles.

What impulse withstand rating does this product meet for the 28kV class?

For the 28kV voltage class, it meets a 140kV BIL impulse withstand rating (1.2 x 50 microsecond wave).

What is the AC one-minute withstand voltage for the 15kV class?

The 15kV voltage class has an AC one-minute withstand rating of 34kV.

What is the AC one-minute withstand voltage for the 28kV class?

The 28kV voltage class has an AC one-minute withstand rating of 45kV.

Is a grounding device recommended when using this elbow connector?

Yes, when used on metallic tape shield or drain wire cable, an ECS cable seal grounding device for safety is highly recommended.

How to Install 655/675LR and K655/K675LR Deadbreak Elbow Connectors

This guide provides step-by-step instructions for installing 655/675LR and K655/K675LR Deadbreak Elbow Connectors. These connectors provide fully shielded, submersible deadfront cable connections for 15kV and 25kV class high voltage systems.

Estimated time: 2h

Tools needed:

Crimping tool, Wire brush (for aluminum conductors), Hotstick, Suitable voltage sensing device (for capacitive test points), Torque wrench

Supplies needed:

655/675LR or K655/K675LR Elbow connector, Cable adapter, Compression lug, Insulating plug (if used), Lubricant (silicone type recommended), Threaded stud (if mating part not equipped), Wire (at least No. 14 AWG Copper for grounding), Suitable grounding connector, Tape marker

  1. De-energize Apparatus and Position Cable

    DANGER: Ensure all apparatus is de-energized before beginning installation. Assemble the cable in its final position with enough slack for elbow removal. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4 inches (45mm) from the centerline of the mating product.

  2. Prepare Cable Outer Surface and Layers

    Clean the outer surface of the cable for a distance of 24 inches (610mm) or up to the bent back concentric neutral wires. Refer to the installation instructions (Step 3) for specific cable preparation, including removing the outer jacket (if applicable) and preparing the semi-con shield and cable insulation to the specified dimensions for your cable type (e.g., jacketed, non-jacketed, Unishield, lead sheath).

  3. Install Cable Adapter

    Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and then lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.

  4. Prepare Conductor Length

    Remove any protruding cable insulation by cutting it even with the end of the cable adapter. Exercise caution to avoid cutting or nicking the cable adapter or the conductor. The exposed conductor length must be between 4-1/4 inches and 4-9/16 inches (108mm-116mm). If not, redo the assembly.

  5. Crimp Compression Lug

    For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor immediately before fully inserting it into the lug. Measure the 'Check Dimension' before crimping; it must be less than 6-3/8 inches. Crimp the compression lug according to the instructions supplied with the lug. Wipe off any excess inhibitor from the lug and cable adapter. After crimping, the distance from the end of the lug to the cable adapter must be between 6-3/8 inches and 7-1/8 inches (162mm-181mm). If not, redo the assembly.

  6. Install Elbow onto Cable Adapter

    Lubricate the cable adapter and the inside of the elbow's cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Verify that the cable adapter remains flush with the tape marker; reposition if necessary. Remove the tape marker.

  7. Prepare Mating Products

    DANGER: Do not connect or disconnect mating products while energized, and do not energize while disconnected. Remove protective caps from both the elbow and the mating part. If the mating part lacks a stud, hand tighten the threaded stud supplied with the elbow into the mating part. Clean and lubricate both the elbow and the mating part with the supplied lubricant, ensuring surfaces remain clean.

  8. Connect Elbow to Mating Part

    Push the elbow onto the mating part, carefully aligning the hole in the compression lug with the stud on the mating part.

  9. Connect Opposite Mating Part (if applicable)

    If connecting to an opposite mating part, clean and lubricate its surface. Insert the mating part into the elbow, engage the threads, and hand tighten. Torque the mating part according to the specific instructions provided with that component.

  10. Install Insulating Plug (if used)

    If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place the cap onto the elbow and push down firmly until it snaps into place.

  11. Ground the Cable Shield

    Insert one end of a wire (at least No. 14 AWG Copper equivalent) through the grounding eye and twist to form a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded; follow instructions for any grounding device used, or employ an alternate grounding method. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress.

  12. Perform Final Torque Check (for L-Kits)

    CAUTION: When constructing 600-amp L-Kits, ensure each component is tightened to the specified torque as per the instructions provided with the L-Kit.

  13. Perform Voltage Test

    To determine if the circuit is energized, use a hotstick to remove the test point cap, peeling it off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment; use a suitable sensing device designed for capacitive test points. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means to prevent serious injury. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
