UPC: 783786636266
Contact for Pricing
Overview
- 600 Ampere current rating for medium voltage applications.
- Designed for 15/25 kV shielded power cable systems.

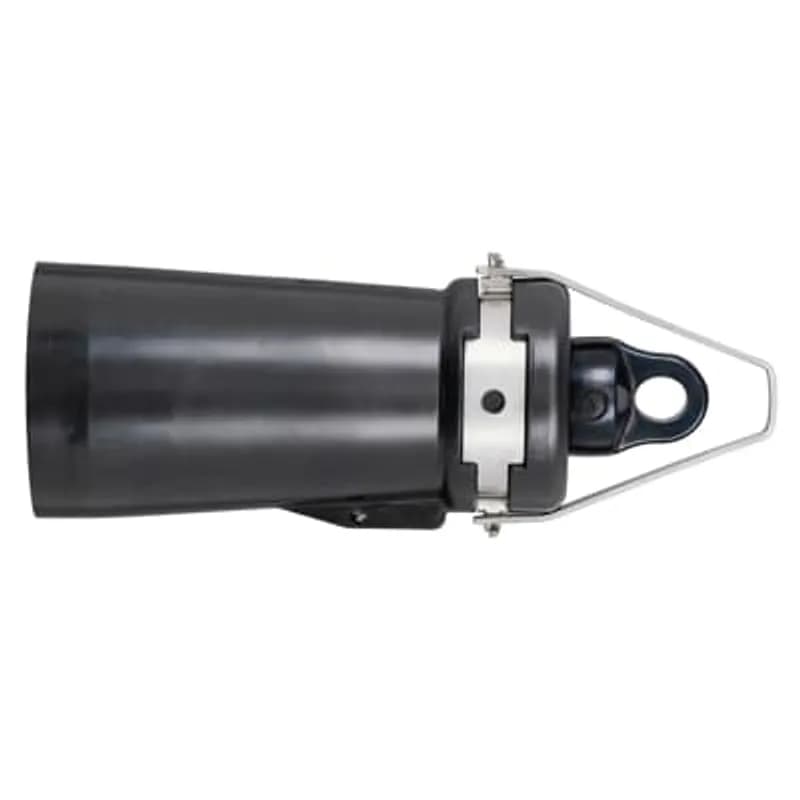

- ABB 600 Series Deadbreak Insulated Cap construction.
- Integrated test point with stud for diagnostic access.
- Ensures safe and insulated termination of power cables.
Specifications
Application | The insulated cap is designed to insulate, shield, and water seal 15/28kV, 600 Amp IEEE Std. 386 bushing interfaces. Units have a capacitance test point which can be used to check if the system is energized. A threaded stud attachment is standard |
Connection Type | Stud |
Current Rating | 600A |
Material | EPDM-Rubber |
Series | 600 Series |
Size | 3.13 inch (79.4 mm) Diameter of Cable Entrance, 8.31 inch (211.1 mm) Length |
Special Features | 15/28 kV, 600 Amp Deadbreak Rated. Molded EPDM Rubber. Provision for ground wire connection. Provision for hotstick operation |
Standard | ANSI/IEEE Standard 386 |
Type | Insulated Cap |
Voltage Rating | 15/25kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.9000 L |
Package Weight (Metric) | 0.8620 kg |
K656DRG
600 Amp, 15/25kV, 600 Series Deadbreak Insulated Cap with Test Point (with Stud), with Ground.K655L2
15/25kV 600 Series Deadbreak 2-Way L-Kit. Includes Two 600 Amp Basic Elbows, Two 28 kV 600 Amp Studs, Two Insulated Plugs with Caps, Compound and InstructionsK655L1
15/25kV 600 Series Deadbreak 1-Way L-Kit. Includes 600 Amp Basic Elbow, 28 kV 600 Amp Stud, Two Insulated Plugs with Caps, Compound and Instructions755L2
600 Amp, 35kV, 600 Series Deadbreak 2-Way L-Kit. Does not include cable adapters or compression lugs, must be ordered separately.
650LRTPA3
15kV 600 Series Test and Ground and Stick-Op, Connector System, Stick-Op Loadbreak Reducing Tap Plug, 600AT assembly tool required for operation and/or installation of Stick-Op. 600 to 200 Amps.
Frequently Asked Questions
What is the K656DR insulated cap designed for?
The K656DR insulated cap is designed to insulate, shield, and water seal 15/25kV, 600 Amp IEEE Std. 386 bushing interfaces.
Does the K656DR allow for a ground wire connection?
Yes, the K656DR has a provision for a ground wire connection.
What is the continuous current rating for 28kV class?
For the 28kV voltage class, the continuous current rating is 600 Amp.
What material is the K656DR insulated cap made from?
The K656DR insulated cap is made from molded EPDM Rubber.
What items are included in the K656DR kit?
Each K656DR kit contains one insulated cap, one Stud 650SA, one Lubricant 82-08, and Installation Instruction IS-0366.
Can I order the K656DR without the stud?
Yes, the K656DR is available without the stud by adding "N" to the part number.
What is the BIL rating for the 28kV voltage class?
The BIL impulse withstand rating for the 28kV voltage class is 140kV (1.2 x 50 microsecond wave).
What is the continuous current rating for 15kV class?
For the 15kV voltage class, the continuous and loadbreak current rating is 200 Amp.
What is the BIL rating for the 15kV voltage class?
The BIL impulse withstand rating for the 15kV voltage class is 95kV (1.2 x 50 microsecond wave).
What is the maximum operating voltage for 28kV class?
For the 28kV voltage class, the maximum phase-to-ground operating voltage is 16.2kV and phase-to-phase is 28kV.
How to Install the K656DR/K676DR Deadbreak Insulated Cap
This guide provides step-by-step instructions for safely installing the K656DR and K676DR deadbreak insulated caps on 15kV and 28kV class deadbreak bushing interfaces, ensuring proper grounding and connection.
Tools needed:
Hotstick tool, High impedance testing device
Supplies needed:
K656DR or K676DR Insulated Cap, Lubricant, Stud (if applicable), No. 14 AWG (2.5mm2) copper wire, Grounding wire connector
- Verify De-energized State
DANGER: All apparatus must be de-energized during installation. Remove the voltage detection point cap from the deadbreak elbow connector using a hotstick, peeling it off at an angle. WARNING: Use a specially designed high impedance testing device for capacitive test points; do not use conventional voltage measuring equipment. Follow the meter's directions. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means. After testing, clean and lubricate the inside surface of the cap with lubricant and replace it on the test point.
- Prepare Grounding Wire and Stud
Insert a length of No. 14 AWG (2.5mm2) copper wire through the grounding eye of the insulated cap. Form a small loop and twist it tight, taking care not to damage the grounding eye. Connect the free end of the grounding wire to the system ground using a utility-specified connector, ensuring sufficient length. If the bushing is not equipped with a stud, hand assemble the supplied stud into the insulated cap; otherwise, discard the supplied stud.
- Clean and Lubricate Interfaces
For new installations where the bushing is known to be de-energized, thoroughly wipe both the bushing interface and the insulated cap interface clean of all contaminants. Lubricate these cleaned surfaces with the supplied lubricant or an Elastimold approved lubricant. For circuits previously energized, clean and lubricate only the interface of the insulated cap.
- Install the Insulated Cap
WARNING: A second hotstick will be required to control the grounding wire during installation. Attach the first hotstick tool to the pulling ring of the insulated cap and push the receptacle onto the bushing interface as far as it will go. Using the second hotstick, engage the grounding wire and establish slight tension, wrapping the wire loosely around the center of the insulated cap body. While pushing against the bushing interface with the first hotstick, twist clockwise until threads engage. Continue turning clockwise without pushing until resistance is felt. DO NOT OVERTIGHTEN.
