Overview
- 15/25kV voltage rating for medium-voltage applications

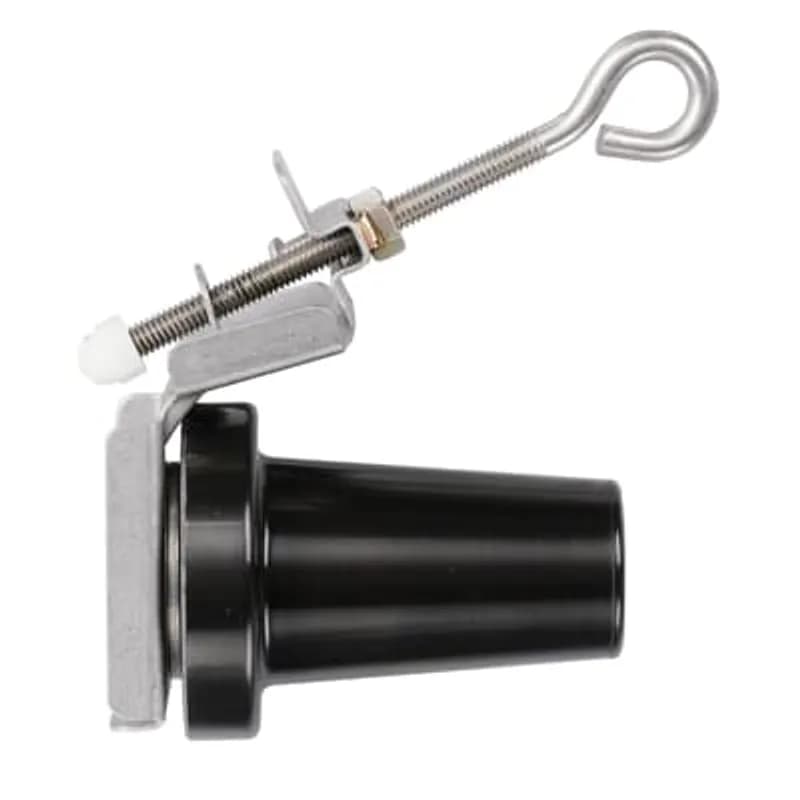

- 600 Series Deadbreak Insulated Parking Bushing
- Provides safe and insulated termination for deadbreak connectors
- Essential for substations, utility infrastructure, and industrial power
- Manufactured by ABB - Installation Products (SKU: K650SOP)
Specifications
Application | The Elastimold K650SOP Insulated Parking Bushing is equipped with a 15/25kV class, 600 Amp deadbreak interface, a parking stand and hot stick operable mounting hardware. The K650SOP is inserted into the parking stand with an insulated hot stick and secured in place. Mating Elastimold K655LR/K656LR deadbreak elbows can then be placed on the K650SOP to provide a fully shielded and fully submersible connection. Provisions for grounding the K650SOP mounting bracket are included |
Connection Type | Deadbreak |
Material | Insulated |
Material | EPDM-Rubber |
Series | 600 Series |
Size | 3.00 inch (76.2 mm) Diameter, 3.88 inch (98.5 mm) Long, 4.82 inch (122.2 mm) Center of Bushing to top of EyeBolt |
Special Features | Fully rated 15/25kV, 600 Amp Deadbreak Insulated Parking Bushing. Allows visible external separation, isolation, and dead-ending. Stainless Steel Bracket. Hot Stick Operable |
Standard | ANSI/IEEE Standard 386 |
Type | Parking Bushing |
Voltage Rating | 15/25kV |
Package Dimensions (L x W x H) | 8.5 IN x 5.5 IN x 3.5 IN |
Package Dimensions (L x W x H) | 21.59 cm x 13.97 cm x 8.89 cm |
Package Weight (Imperial) | 1.8500 L |
Package Weight (Metric) | 0.8390 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
650AB
Link-Op Alignment Bracket, (Retrofit Link-OP only) 15/25/35kV, Includes Link Op (1) Welded Bracket with (2) Welded Clamp Tops and 3/8 inch Stainless Steel Hardware (4) Hex Head Cap Screws, (4) Lock Washers, (4) Hex Nuts.
650SA
15/25kV 600 Amp Series Deadbreak Elbow Threaded Stud. Aluminum. Electro Tin Plated. Length 2.215 inch. Threaded Length each end .86 inch. 5/8-11 UNC-2A Threaded on Both Ends.
650BAW
15-25 kV. 600 Amp, Bolt Washers Prepack, (1) Zinc Plated Steel Compression Washer Diameter 1.313 inch with .640/.653 Diameter Hole, (1) Tin Plated Steel Flat Washer 1-1/4 inch Diameter with .656 inch Hole, (1) 304 Stainless Steel Hex Head Cap Screw Machined 5/8-11 UNC-2A Overall Length 1.9 inch. (1) Nylon Rod, (3) Lubricant packets.Frequently Asked Questions
What is the continuous current rating?
The K650SOP has a continuous current rating of 600 Amps for both 15kV and 28kV voltage classes.
What is the K650SOP product?
The K650SOP is a 15/25kV 600A Deadbreak Insulated Parking Bushing equipped with a deadbreak interface, parking stand, and hot stick operable mounting hardware. It allows for visible external separation, isolation, and dead-ending.
What products are compatible with the K650SOP?
Mating Elastimold® K655LR/K656LR deadbreak elbows can be placed on the K650SOP to provide a fully shielded and submersible connection.
What is included in the K650SOP kit?
Each kit contains one Insulated Parking Bushing K650SOP, one tube of lubricant 82-08, and Installation Instruction IS-0243.
What is included in the K650SOP kit?
Each kit contains one Insulated Parking Bushing K650SOP, one tube of lubricant 82-08, and Installation Instruction IS-0243.
What products are compatible with the K650SOP?
Mating Elastimold® K655LR/K656LR deadbreak elbows can be placed on the K650SOP to provide a fully shielded and submersible connection.
What is the continuous current rating?
The K650SOP has a continuous current rating of 600 Amps for both 15kV and 28kV voltage classes.
What is the K650SOP product?
The K650SOP is a 15/25kV 600A Deadbreak Insulated Parking Bushing equipped with a deadbreak interface, parking stand, and hot stick operable mounting hardware. It allows for visible external separation, isolation, and dead-ending.
What products are compatible with the K650SOP?
Mating Elastimold® K655LR/K656LR deadbreak elbows can be placed on the K650SOP to provide a fully shielded and submersible connection.
What is the continuous current rating?
The K650SOP has a continuous current rating of 600 Amps for both 15kV and 28kV voltage classes.
How to Install the K650SOP Deadbreak Stand-Off Plug
This guide provides instructions for the safe installation and securing of the K650SOP Deadbreak Stand-Off Plug. It covers initial inspection, lubrication, and proper attachment to the apparatus.
Estimated time: 20m
Tools needed:
Hotstick
Supplies needed:
Lubricant, Stainless steel mounting hardware
- Inspect Package Contents and Components
Check the contents of the package to ensure they are complete and undamaged. Verify all components for proper fit with the cable and/or mating products. Inspect parts for damage, rating, and compatibility with mating parts. All apparatus must be de-energized during installation or removal of part(s).
- Lubricate the Interface
Lubricate the interface with the supplied lubricant or an ELASTIMOLD approved lubricant. DO NOT SUBSTITUTE, as other lubricants may be harmful to this product or its mating parts. Ensure all apparatus is de-energized before proceeding with any part of the installation.
- Attach and Secure the Stand-Off Plug
Attach a hotstick to the eyebolt of the stand-off plug carriage assembly. Slide the carriage assembly into the parking stand. Rotate the eyebolt clockwise until the carriage assembly is snug against the apparatus surface. Remove the hotstick from the eyebolt. All deadbreak connectors must be de-energized before operating and mechanically secured with bails when connected if they are 200A deadbreak connectors.
