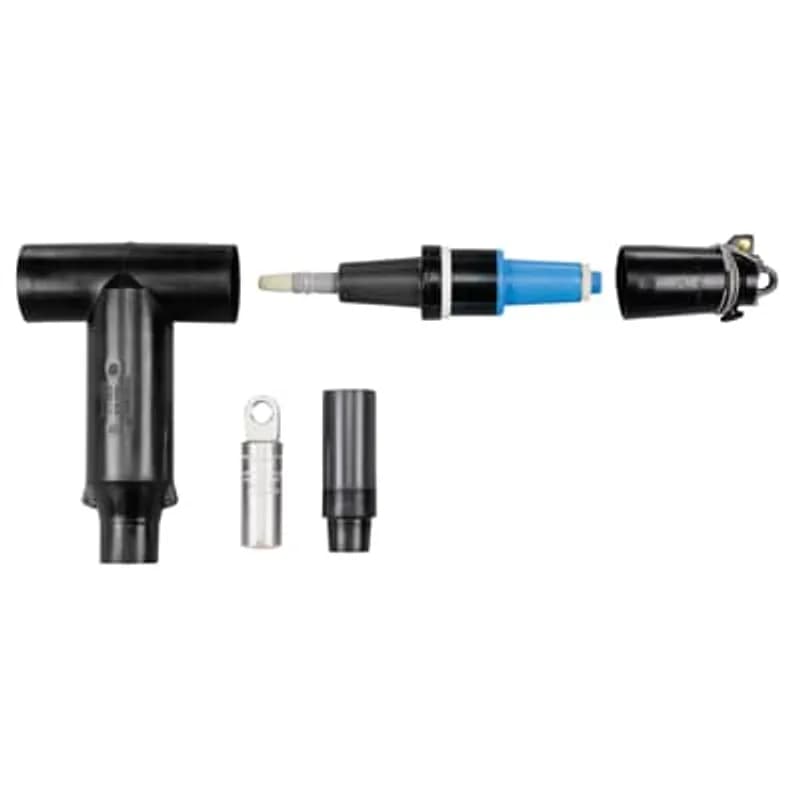

ABB Installation Products K655LRTP-L0380-DRG 600 Amp Elbow Connector, Stick Op Connector Kit, 25KV, Dead Break, Cable Insulation…
UPC: 783786434657
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 600 Amp current rating
- 25KV operating voltage
- Dead Break Elbow Connector Kit
- Suitable for 1.180" to 1.465" cable insulation diameter
- Aluminum compression lug for 700-750 AWG stranded and 900 AWG solid conductors
Specifications
Amperage Rating | 600 to 200 A |
Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
Color | Black |
Conductor Range | 700 to 750 kcmil , 900 kcmil |
Enclosure | Yes, EPDM Rubber |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Special Features | Reducing Tap Plug 600 to 200 Amps. Provides an External Visible Break by Hotstick Removal of the Elbow |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Stick Op Reducing Tap Plug Connector |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 8.5000 L |
Package Weight (Metric) | 3.8560 kg |
K656CY-L0380
15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
655LRTP-J0320
600 Amp, 15kV, Deadbreak Stick-Op Connector Kit, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.655LRTP-H0290
600 Amp, 15kV, Deadbreak Stick-Op Connector Kit, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 300 /Compacted Solid 350 /mmSquared Compact 150.
655LRTP-L0330-DRG-S
600 Amp, 15KV, Stick Op Connector Kit, Fixed Bolt, Insulating Cap, Stick Op Load Break Reducing Tap Plug, Elbow Housing, Cable Adapter and Threaded Lug, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included.
675LRTP-G2220-DRG
900 Amp, DeadBreak, 15KV, Stick Op Elbow Kit, Cable Insulation Diameter 0.760 inch to 0.950 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.K675LRTPFB-L5270-DRG
900 Amp, 25kV, Deadbreak, Stick-Op Connector Kit. Fixed Bolt, Insulated Cap, Cable Insulation Diameter 1.180 inch to 1.465 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.655LRTP-LM0380-DRG
600 Amp, 15kV, Deadbreak Stick-Op Connector Kit, With Insulated Cap. Cable Insulation Diameter 1.280 inch to 1.430 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.675LRTP-K2320
900 Amp, 15kV, Deadbreak, Stick-OP Elbow Kit without Test Point. Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded #1 or Compacted Solid 1/0 or mmSquared Compact 50. Copper Conductor Only.Frequently Asked Questions
What is the maximum operating voltage for this elbow connector?
The ABB K655LRTP-L0380-DRG elbow connector is rated for 25KV operation.
What cable insulation diameters does this connector kit support?
This kit is designed for cable insulation diameters ranging from 1.180 inches to 1.465 inches.
What type of lug is used in this ABB connector kit?
The ABB K655LRTP-L0380-DRG utilizes an aluminum compression lug.
What conductor sizes are compatible with this elbow connector?
It is compatible with 700/750 AWG compressed stranded conductors and 900 AWG solid conductors.
Is this a dead break or live break connector?
This is a dead break elbow connector kit, allowing for safe de-energization before disconnection.
How to Install and Remove the ELASTIMOLD 273/375DRG(3) Insulated Cap
This guide provides step-by-step instructions for safely installing and removing the ELASTIMOLD 273/375DRG(3) Insulated Cap with Ground Lead on 25kV or 35kV loadbreak bushing interfaces. Always ensure apparatus is de-energized during installation or removal.
Estimated time: 30m
Tools needed:
Hotstick (minimum 8 ft recommended)
Supplies needed:
ELASTIMOLD 273/375DRG(3) Insulated Cap with Ground Lead, ELASTIMOLD approved lubricant
- De-energize Apparatus and Inspect Components
Ensure all apparatus is de-energized before beginning installation or removal. Inspect the insulated cap, ground lead, and mating bushing for any damage, proper rating, and compatibility with mating parts. Failure to follow these instructions will result in damage to the product and serious or fatal injury.
- Connect Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Leave sufficient slack for hot-stick operation of the insulated cap. CAUTION: Ensure the electrostatic grounding wire is trained so as not to contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare and Lubricate Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE, as other lubricants may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install Insulated Cap onto Bushing
Firmly attach a hotstick (a minimum length of 8 ft is recommended) to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, making certain it is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
- Remove Insulated Cap (Optional)
To remove the insulated cap, attach a hotstick to its pulling eye. Before pulling, rotate the insulated cap slightly while it is in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion to complete the operation. Remove the electrostatic grounding wire of the insulated cap from the system ground. Replace the protective cover on the insulated cap to keep its internal surface clean.
