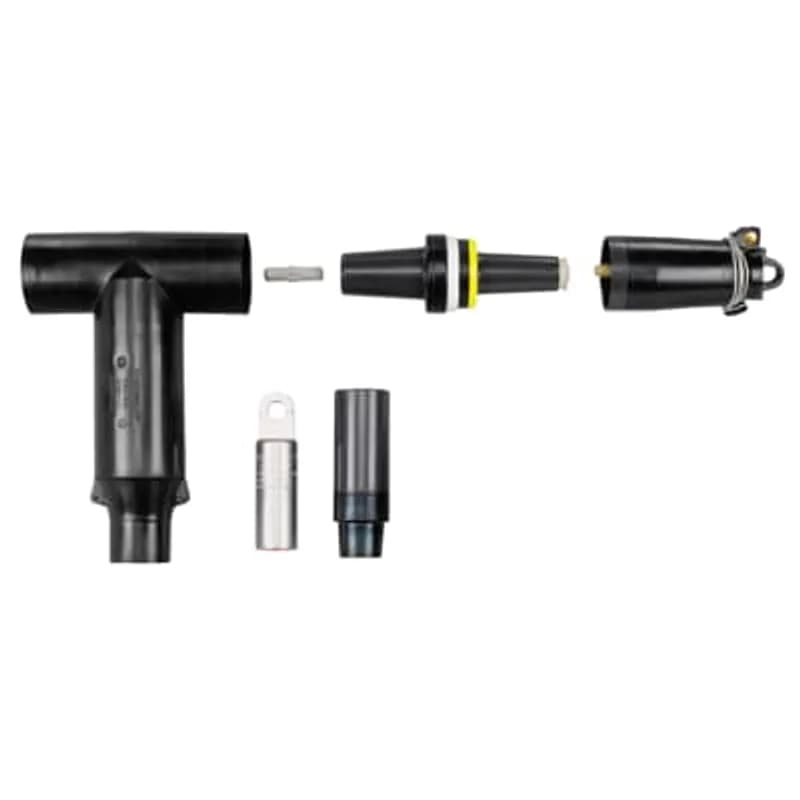

ABB Installation Products K655ETPL0320DRGSG3 600 Amp, 25KV, DeadBreak, Elbow Connctor, Test and Ground Connector Kit, with Insulated…
UPC: 783786508211
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 600 Amp, 25kV DeadBreak Elbow Connector Kit
- Supports cable insulation diameters: 1.180–1.465 inch
- Accommodates compressed stranded 450 kcmil or compacted solid 500/550 kcmil conductors
- Includes test/ground connector, insulated cap, reducing tap plug, and aluminum compression lug
- Cold shrinkable seal with copper braid and constant force spring for weatherproofing and stability
Specifications
Amperage Rating | 600 A |
Application | 600 Amps, 25kV |
Color | Black |
Conductor Range | 450 STR/COMPR kcmil , 500 to 550 SOL/COMPT kcmil |
Connection | Compression |
Connection Type | Deadbreak |
Current Rating | 600 A |
Insulation | EPDM Rubber |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Size | Cable Insulation Diameter 1.180 inch to 1.465 inch |
Special Features | Includes Insulated Cap and Sealing Kit |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Window-Op Connector |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K656CYSL-K0320-SG1
15/25kV, 600 Amp, Separable Wye Joint (3-Way) with Test Point, Spiking Aid, Cable Insulation 1.090-1.310 inches, Aluminum Compression Lug, Conductor Size 450 Stranded/Compressed kcmil or 500/550 Solid/Compact kcmil, Cold Shrinkable Seal with Copper Rod and Crimp Connector
755ETP-P0380-DRG
600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, 600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
K655ETP-J5270
600 Amp, 25KV, DeadBreak, Elbow Connector, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.K655ETP-J0270
600 Amp, 25KV, DeadBreak, Elbow Connector, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.655ETP-J0300-DRG
600 Amp Dead Break Elbow Connector, Test and Ground Connector Kit, 15 KV, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 350 /Solid 400 /mmSquared 185.
STB200A1610
Tinned Copper, Standard Flexible Braid Connector, STB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 24 inch (610 mm) long, 1-9/16 inch (40 mm) wide, 1 inch (25.4 mm) thick. Pad 3-1/2 inch x 1-9/16 inch. 13 Braids in Assembly. 30 AWG Individual Strand.655ETP-P0410-DRG
15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter and 0370 style compression lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.Frequently Asked Questions
How do I select the correct catalog number?
Select the insulation letter code based on cable diameter, choose the connector material type, and then select the compression lug code based on conductor size.
What items are included in the connector kit?
The kit includes an elbow housing, elbow tap plug, insulated cap, cable size adapter, compression lug, stud, silicone lubricant, crimp chart, and instruction sheets.
What is the continuous current rating?
The continuous current rating for the connector kit is 600 Amps.
What is the maximum operating voltage?
The maximum phase-to-ground operating voltage is 16.2kV, and the maximum phase-to-phase voltage is 28kV.
What is the product's main application?
WINDOW-OP connectors allow direct testing and grounding without cable movement. They are ideal for equipment with viewing windows for a visible break.
What is the maximum operating voltage?
The maximum phase-to-ground operating voltage is 16.2kV, and the maximum phase-to-phase voltage is 28kV.
How do I select the correct catalog number?
Select the insulation letter code based on cable diameter, choose the connector material type, and then select the compression lug code based on conductor size.
What items are included in the connector kit?
The kit includes an elbow housing, elbow tap plug, insulated cap, cable size adapter, compression lug, stud, silicone lubricant, crimp chart, and instruction sheets.
What is the continuous current rating?
The continuous current rating for the connector kit is 600 Amps.
What is the product's main application?
WINDOW-OP connectors allow direct testing and grounding without cable movement. They are ideal for equipment with viewing windows for a visible break.
How to Install an Insulated Cap with Ground Lead on a Loadbreak Bushing
This guide provides step-by-step instructions for safely installing the 160DRG and 167DRG insulated caps with ground lead onto 15kV class loadbreak bushing interfaces. It covers grounding, lubrication, and mating procedures.
Estimated time: 30m
Tools needed:
Hotstick type live-line tool
Supplies needed:
Insulated Cap with Ground Lead, Lubricant
- Connect Electrostatic Grounding Wire
Before starting, ensure all apparatus is de-energized. Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap and train the wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied or ELASTIMOLD approved lubricants; do not substitute. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.
- Install the Insulated Cap onto the Bushing
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, and push it home with a fast, firm, straight motion. Ensure the cap is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.
