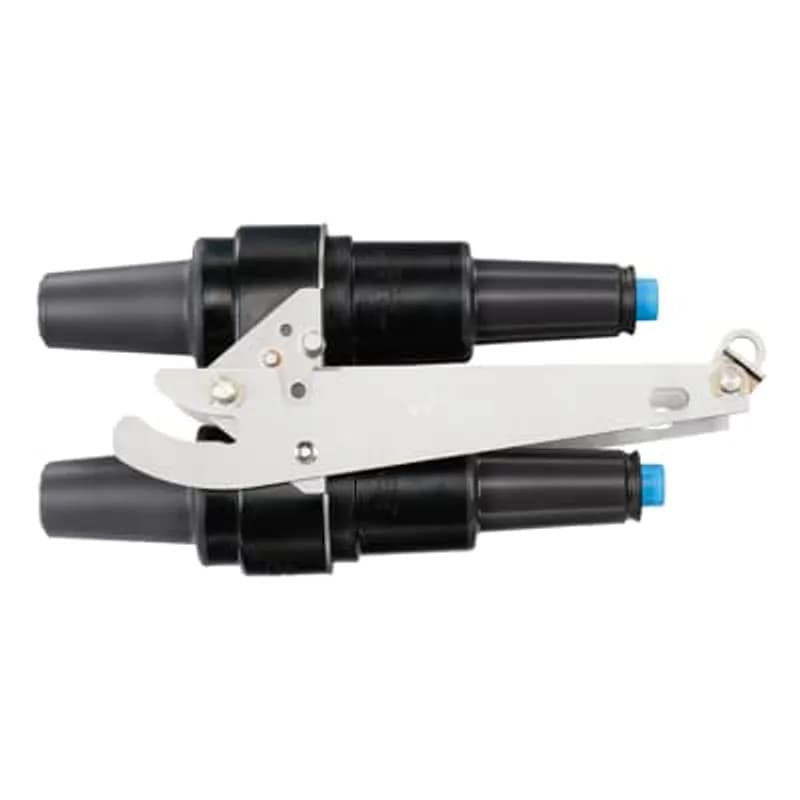

ABB - Installation Products K650LK-C-VB - 25kV 600 Series Deadbreak Cam-Op Loadbreak Reducing Tap Plugs (Visi-Break)

ABB Installation Products K650LK-C-VB 25kV 600 Series Deadbreak Cam-Op Loadbreak Reducing Tap Plugs (Visi-Break)

UPC: 783786951871


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K650LK-C-VB is a 25kV, 600 Series Deadbreak Cam-Op Loadbreak Reducing Tap Plug, featuring Visi-Break technology. This component is designed for reliable operation within medium-voltage electrical distribution systems. Its deadbreak design ensures a safe and secure connection, allowing for loadbreak operations up to its rated voltage and current. The Visi-Break feature provides a visual indication of the connection status, enhancing safety and operational efficiency for utility and industrial personnel. The cam-operated mechanism offers a positive and dependable method for engaging and disengaging the tap plug. This reducing tap plug is engineered to connect a 600A bushing to a smaller conductor size, facilitating flexible system configurations. Key specifications include: * Voltage Rating: 25kV * Current Rating: 600A * Series: 600 Series * Type: Deadbreak Cam-Op Loadbreak Reducing Tap Plug * Feature: Visi-Break This product is suitable for applications requiring safe and visible loadbreak capabilities in underground distribution networks, substations, and industrial power systems. Manufacturer: ABB - Installation Products. SKU: K650LK-C-VB. UNSPSC Code: 39121421.
  • 25kV Voltage Rating
  • 600A Current Rating
  • 600 Series Deadbreak Design
  • Cam-Operated for reliable engagement
  • Visi-Break for visual connection status

Specifications

Amperage Rating
600 A
Insulation
EPDM Rubber
Material
EPDM-Rubber
Special Features
Visible Break
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Reducing Tap Plug
Voltage Rating
25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
11.7500 L
Package Weight (Metric)
5.3300 kg
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.

K655LR-H0240

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.
35kV 600 Series Deadbreak Cam-Op Loadbreak Reducing Tap Plugs (Visi-Break)

750LK-C-VB

35kV 600 Series Deadbreak Cam-Op Loadbreak Reducing Tap Plugs (Visi-Break)
15 kV, 600 Amp, Deadbreak Cam-Op Reducing Tap Plugs (Visi-Break)

650LK-C-VB

15 kV, 600 Amp, Deadbreak Cam-Op Reducing Tap Plugs (Visi-Break)
15kV, 600 Amp, Deadbreak Cam-Op Link Bracket Assembly. 304 Stainless Steel Lever Arm is 13 inches long.

650LK-C

15kV, 600 Amp, Deadbreak Cam-Op Link Bracket Assembly. 304 Stainless Steel Lever Arm is 13 inches long.
15-25kV 600 Series Deadbreak 3-Way Insulated Bus Bar with Test Point

K656CY-BUS

15-25kV 600 Series Deadbreak 3-Way Insulated Bus Bar with Test Point
15-25kV 600 Series Deadbreak 4-Way Insulated Bus Bar with Test Point

K656CH-BUS

15-25kV 600 Series Deadbreak 4-Way Insulated Bus Bar with Test Point
15-25kV 600 Series Deadbreak Basic Housing Package H-Joint with Test Point

K656CH-HP

15-25kV 600 Series Deadbreak Basic Housing Package H-Joint with Test Point
15kV 200 Amp, Loadbreak Elbow Probe - Follower Contact, includes Probe Wrench.

166LRF

15kV 200 Amp, Loadbreak Elbow Probe - Follower Contact, includes Probe Wrench.

Frequently Asked Questions

What is the primary purpose of the K650LK-C-VB link?

It provides a visible open on primary cable systems using pin and socket connectors.

What type of insulation does the K650LK-C-VB use?

The K650LK-C-VB uses 100% Peroxide-cured insulation.

What current tap does it provide for testing?

It provides a 200 Amp tap for testing and grounding connections.

How is the Cam-Op link operated and installed?

It features a Cam-Op lever for hotstick operation and easy installation/removal.

What items are included in the K650LK-C-VB kit?

Each kit includes one K650LK-C-VB Cam-Op Link, two protective shipping caps (2701-41), one installation instruction (IS-1213), and three tubes of lubricant (82-08).

What is the continuous and loadbreak current rating?

The continuous and loadbreak current rating for the 200 A Loadbreak Interface is 200 Amp.

What is the continuous current rating for deadbreak connection?

The continuous current rating for the 600 A Deadbreak Connection is 600 Amp.

What is the BIL impulse withstand rating?

The BIL impulse withstand rating is 125kV (1.2 x 50 microsecond wave).

What is the maximum phase-to-phase voltage rating?

The maximum phase-to-phase voltage rating for the 25kV voltage class is 26.3kV.

What is the maximum phase-to-ground operating voltage?

The maximum phase-to-ground operating voltage for the 25kV voltage class is 15.2kV.

How to Install and Operate the LK-C-VB-CS1439 Deadbreak Operating Kit

This guide details the safe procedure for installing and operating the LK-C-VB-CS1439 Deadbreak Operating Kit. It covers removing existing links, installing the Visi-Link with Ground for a visible open and load-side grounding, and reinstalling the original link, ensuring all apparatus are de-energized.

Estimated time: 1h

Tools needed:

Hotstick, Hot line clamp

Supplies needed:

ELASTIMOLD supplied lubricant, Lock (if required)

  1. Ensure De-energized Circuit and Observe Safety Precautions

    Before beginning, ensure all apparatus and cable runs are completely de-energized. This product must be installed and operated by competent personnel trained in high-voltage safety practices. Do not touch or move energized products. Inspect all parts for damage, proper rating, and compatibility with mating parts. Failure to follow these instructions will result in serious injury or death.

  2. Remove the Existing Link

    With the circuit de-energized, remove any existing lock from the link, if applicable. Attach a hotstick to the hotstick eye of the link bracket. Pull out on the hotstick to rotate the lever arm and remove the link from the bushing extenders.

  3. Prepare and Install the Visi-Link with Ground

    First, attach a hot line clamp to the system ground. Thoroughly clean and lubricate both 600 ampere interfaces of the Visi-Link with ground using ELASTIMOLD supplied lubricant; proper lubrication is critical for operation. Align the Visi-Link perpendicular to the faceplate, then insert it into the bushing extenders, ensuring both lever arms are inside the alignment bracket legs. Engage the pivot pin and guide pin into the alignment bracket slots. While pushing down, use the hotstick eye to move the lever arms, engaging the roller pin and moving the Visi-Link inward until the arms contact the stop bracket. Install a lock if required.

  4. Remove the Visi-Link with Ground (if applicable)

    If the Visi-Link with Ground needs to be removed, first remove any lock. Attach a hotstick to the hotstick eye of the Visi-Link with ground bracket. Pull out on the hotstick to remove the Visi-Link from the bushing extenders.

  5. Prepare and Install the Original Link

    Thoroughly clean and lubricate both 600 ampere interfaces of the Link with ELASTIMOLD supplied lubricant; proper lubrication is critical for operation. Align the Link perpendicular to the mounting plate, then insert it into the bushing extenders, ensuring both lever arms are inside the alignment bracket legs. Engage the pivot pin and guide pin into the alignment bracket slots. While pushing down, use the hotstick eye to move the lever arms downward, engaging the roller pin and moving the Link inward until the arms contact the stop bracket. Install a lock if desired.

  6. Repeat for All Phases

    Repeat all preceding steps (Step 1 through Step 5) on all phases at both ends of the cable run to ensure complete and safe operation across the entire system.
