ABB - Installation Products K656CY-BUS - 15-25kV 600 Series Deadbreak 3-Way Insulated Bus Bar with Test Point

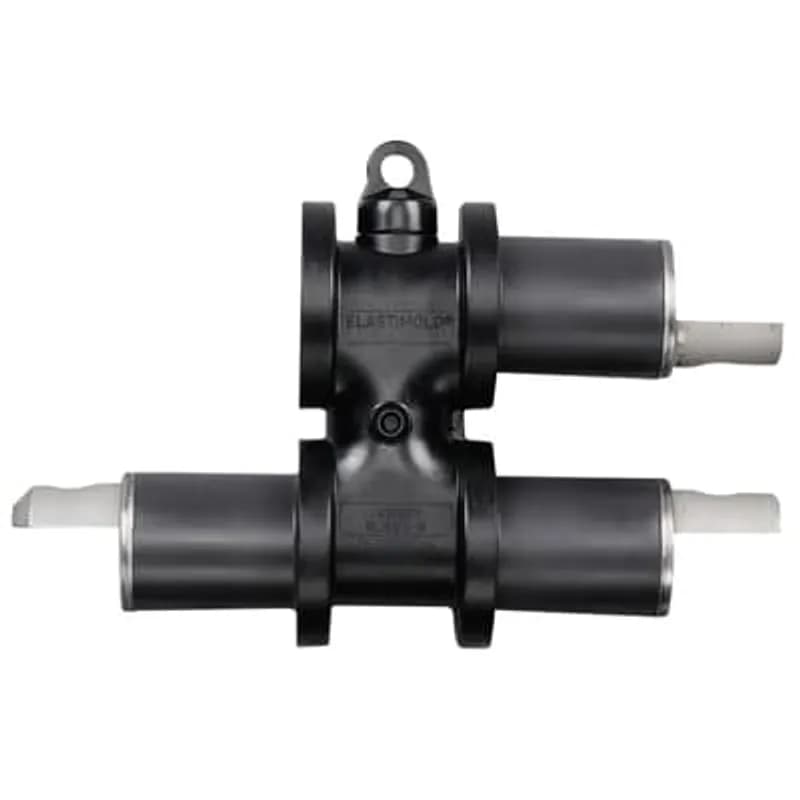

ABB Installation Products K656CY-BUS 15-25kV 600 Series Deadbreak 3-Way Insulated Bus Bar with Test Point

UPC: 783786628339


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K656CY-BUS is a 3-way insulated bus bar designed for 15-25kV applications within the 600 Series product line. This component is essential for safely and efficiently distributing electrical power in medium-voltage systems. It features a robust insulated construction, ensuring operator safety and system reliability. The integrated test point allows for convenient and secure voltage testing without compromising the integrity of the insulation or requiring disconnection of the main circuit. This feature is critical for maintenance procedures, enabling quick verification of system status and troubleshooting. Manufactured by ABB - Installation Products, this bus bar adheres to stringent quality standards for industrial electrical infrastructure. Its 3-way configuration provides flexibility in system design, allowing for multiple connections from a single point. The K656CY-BUS is suitable for use in substations, industrial facilities, and other critical power distribution networks where reliable and safe medium-voltage connections are paramount. The UNSPSC code for this product is 39121421, categorizing it under electrical bus bars. This product is engineered for dependable performance in demanding electrical environments, facilitating safe and efficient power management.
  • 15-25kV operating voltage rating
  • 600 Series deadbreak design
  • 3-way insulated bus bar configuration
  • Integrated test point for safe testing
  • ABB - Installation Products manufacturer

Specifications

Amperage Rating
600 A
Application
Compact Design is suitable for small vaults and manholes
Color
Black
Environmental Conditions
All Weather Conditions
Insulation
True
Length
9.75 in
Length
247.65 mm
Material
Housing - EPDM-Rubber
Poles
3-Way
Series
600 Series
Special Features
Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Separable Straight Joint
Voltage Rating
15-25 kV
Voltage Rating
15 to 25 kV
Width
3.77 in
Width
95.758 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
7.5000 L
Package Weight (Metric)
3.4020 kg
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit

168FLR1-B5220

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
15-25kV 600 Series Deadbreak 2-Way Insulated Bus Bar with Test Point.

K656I-BUS

15-25kV 600 Series Deadbreak 2-Way Insulated Bus Bar with Test Point.
600 Amp, 15-25kV, 600 Series Deadbreak Straight Receptacle Housing Only

K655YBSR

600 Amp, 15-25kV, 600 Series Deadbreak Straight Receptacle Housing Only
15-25kV 600 Series Deadbreak 4-Way Insulated Bus Bar with Test Point

K656CH-BUS

15-25kV 600 Series Deadbreak 4-Way Insulated Bus Bar with Test Point
600 Amp, 15-25kV, 600 Series Deadbreak Insulated Cap with Bail

K655YDR

600 Amp, 15-25kV, 600 Series Deadbreak Insulated Cap with Bail
15-25kV 600 Series Deadbreak Basic Housing Package H-Joint with Test Point

K656CH-HP

15-25kV 600 Series Deadbreak Basic Housing Package H-Joint with Test Point
15kV 200 Amp, Loadbreak Elbow Probe - Follower Contact, includes Probe Wrench.

166LRF

15kV 200 Amp, Loadbreak Elbow Probe - Follower Contact, includes Probe Wrench.
25kV 200 Amp, Loadbreak Elbow Probe, includes Probe Wrench

274LRF

25kV 200 Amp, Loadbreak Elbow Probe, includes Probe Wrench

Frequently Asked Questions

What is the voltage rating of this bus bar?

The ABB K656CY-BUS is rated for 15-25kV operating voltage.

What is the purpose of the test point?

The integrated test point allows for safe and convenient voltage testing without disconnecting the main circuit.

What series does this bus bar belong to?

This bus bar is part of the ABB 600 Series.

How many connection points does this bus bar have?

The K656CY-BUS is a 3-way insulated bus bar, offering three connection points.

Who is the manufacturer of this bus bar?

This bus bar is manufactured by ABB - Installation Products.

How to Install K656/K676 Series Deadbreak Receptacles

This guide provides step-by-step instructions for installing K656 and K676 series deadbreak receptacles, including cable preparation, connector crimping, and final assembly for high-voltage cable splices.

Estimated time: 2h

Tools needed:

Hex wrench (supplied), Torque wrench with 15/16” socket, Wire brush (for aluminum cable), Wire strippers, Clean rag, Approved safety solvent, 650ATY or 600RRT assembly tool

Supplies needed:

Receptacle housings, Cable adapters, I, Wye, or H Center sections, Aluminum holding collars, Lubricant (supplied or ELASTIMOLD approved), Hex-head bolts, Crimp connectors, Belleville washers, Flat washers, Nylon venting rod, No. 14 AWG copper wire (or equivalent), Tape (for markers)

  1. Safety First: De-energize and Inspect

    Before beginning, ensure all apparatus is de-energized. Do not touch or move energized products. Inspect all parts for damage, proper rating, and compatibility with mating components. Failure to follow safety instructions can result in serious injury or death. This product should be installed only by competent personnel trained in good safety practices involving high voltage electrical equipment.

  2. Prepare Cable End and Initial Component Placement

    Wipe the outer jacket clean for a distance of 38 inches and cut the cable end squarely. If an ECS grounding device is being used, slide the tube onto the cable for a distance of 38 inches. Then, slide the receptacle housing onto the cable for a distance of 30 inches.

  3. Perform Cable Preparation (Type-Specific)

    Refer to the special cable preparation supplement included with these instructions (Part A for Jacketed Concentric Neutral Cable or Part B for Flat Metallic Tape Shielded Cable) to remove the cable jacket, semi-con shield, bevel the insulation, and thoroughly clean the insulation. Ensure precise measurements are followed to avoid cutting or nicking the insulation or conductor.

  4. Expose Conductor and Assemble Retaining Ring

    Remove the protruding cable insulation by cutting it even with the end of the cable adapter, ensuring the exposed bare conductor measures 4 3/4” – 5”. Do not cut or nick the cable adapter or conductor. Assemble the aluminum retaining ring over the conductor, snugging it firmly against the cable adapter. Using the provided hex wrench, tighten the socket head screw hand tight. Confirm the exposed conductor now measures 4 3/8” to 4 3/4”.

  5. Prepare and Position Crimp Connector

    Remove the protective cap from the crimp connector. If using aluminum cable, wire brush the conductor and immediately insert it fully into the crimp connector, which contains inhibitor. Measure the distance from the end of the connector to the holding collar; this distance must be between 6 3/4” and 7” maximum. If the distance is over 7”, do not proceed and recheck all previous work. Repeat steps 4 and 5 for any remaining cables to be joined.

  6. Crimp Connectors and Verify Alignment

    Prior to crimping, confirm all components are positioned as shown in the instructions, ensuring the bolt holes in the crimp connectors are properly aligned with the bolt holes of the mating part. Crimp the connectors following the instructions packaged with them, rotating each crimp 90 or 180 degrees. After crimping, re-measure the distance from the end of the connector to the holding collar; if it is over 7”, do not proceed and redo all previous work.

  7. Assemble and Torque Bolts

    Assemble the washers and bolt in the following order: flat washer against the spade contact, Belleville washer (concave side down), then the hex-head bolt. Hand tighten. Using a torque wrench with a 15/16” socket, tighten all bolts to 50 to 60 ft. lbs. The splice and cables are now in their final positions; do not attempt to move or reposition any part of the assembly after the bolts are tightened.

  8. Lubricate and Position Receptacle Housing

    Generously apply the supplied lubricant or ELASTIMOLD approved lubricant to the outside of the cable adapter, the area of the splice section, and the inside mating surface of the receptacle housing. Slide the receptacle housing over the cable adapter and up to the edge of the interface (position shown in the documentation). Insert the nylon venting rod (supplied).

  9. Slide Receptacle Housing Over Splice

    Attach the appropriate assembly tool (either the 650ATY or 600RRT) as shown in the instructions. Slowly operate the tool to slide the receptacle housing completely over the splice section. Remove the venting rod. WARNING: If using the 600RRT assembly tool, do not place your hand on the threaded rod or guide shaft with the tool in place. Repeat steps 8 and 9 for any remaining cables.

  10. Final Checks and Grounding

    Check all cable adapters to make sure they are located properly and remove all vinyl tape markers. Complete the installation of the ECS grounding device according to its instructions, if applicable. Connect a short length of No. 14 AWG copper wire (or equivalent) to the grounding eyes of the housings and securely connect it to ground.
