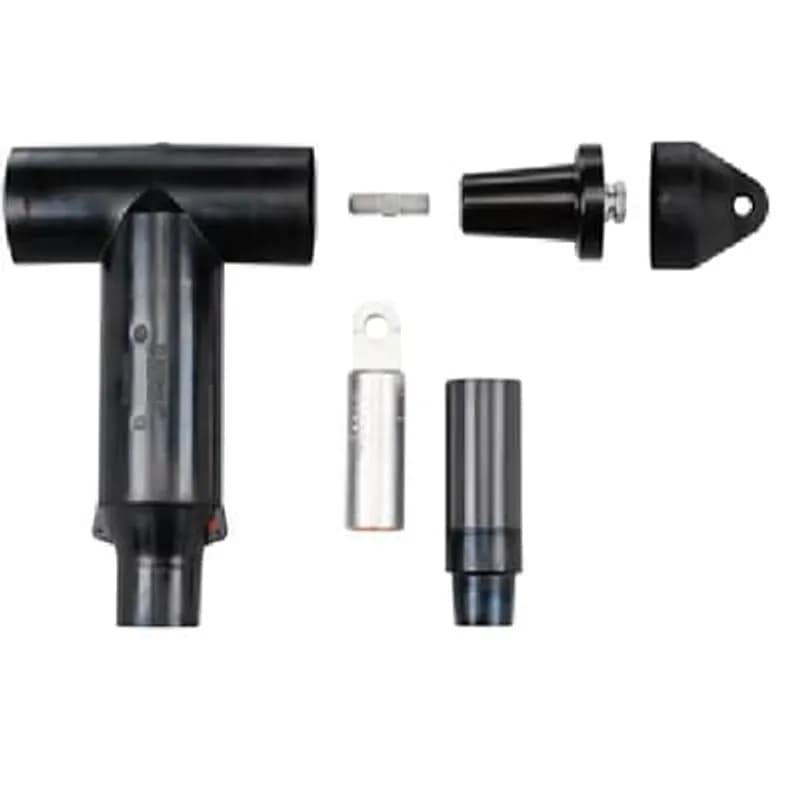

ABB Installation Products K465LR-G0240 15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter…
UPC: 075114391061
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV rated voltage for medium voltage applications
- 630 Amps continuous current rating
- Deadbreak design without a test point for simplified installation
- Accommodates cable insulation diameters from 0.760-0.950 inches (19.304-24.130mm)
- Includes aluminum compression lug for 1/0 Stranded/Compressed or 2/0 Solid/Compact conductors
Specifications
Amperage Rating | 630 A |
Application | Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus |
Color | Black |
Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
Connection | Compression |
Connection Type | Compression Lug |
Current Rating | 630 A |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Aluminum, Poly |
Material | Housing - EPDM-Rubber |
Series | 600 Series |
Size | Cable Insulation Diameter 0.760-0.950 inch |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators |
Standard | ANSI/IEEE Standard 386/ IEC |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 15/25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
755LRTP-K0240-DRG
600 Amp, 35kV, Stick-Op Connector Kit with Test Point, Insulated Cap and Reducing Tap Plug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0.
756LR-PAC04-S
35kV, 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Shearbolt Lug and Cable Adapter). Tin-Plated Aluminum Shearbolt Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size Range for Compressed / Stranded / Compacted / Solid 750 to 1250 kcmil. Cold-Shrinkable Jacket Seal Included.
K675LR-M2290
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size kcmil Compressed Stranded 300 or Compacted Solid 350 or mmSquared Compact 150.K465LR-H0260
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.850-1.050 inches (21.590-26.670mm). Aluminum Compression Lug, Conductor Size 3/0 Stranded/Compressed or 4/0 Solid/Compact or 95mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.756LR-JAC01-S
35kV, 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Shearbolt Lug and Cable Adapter). Tin-Plated Aluminum Shearbolt Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size Range for Compressed / Stranded / Compacted / Solid #2 to 300 kcmil. Cold-Shrinkable Jacket Seal Included.756LR-LAC01-S
35kV, 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Shearbolt Lug and Cable Adapter). Tin-Plated Aluminum Shearbolt Lug. Cable Insulation Diameter 1.18 inch to 1.465 inch. Conductor Size Range for Compressed / Stranded / Compacted / Solid #2 to 300 kcmil. Cold-Shrinkable Jacket Seal Included.756LR-MAC02-S
35kV, 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Shearbolt Lug and Cable Adapter). Tin-Plated Aluminum Shearbolt Lug. Cable Insulation Diameter 1.37 inch to 1.63 inch. Conductor Size Range for Compressed / Stranded / Compacted / Solid 4/0 to 500 kcmil. Cold-Shrinkable Jacket Seal Included.
K656LR-J2270
25 kV, 600 Amp, Deadbreak, Elbow Kit, with Test Point, Insulated Plug, Cap, Stud, Copper Lug, and Cable Adapter. Cable Insulation Diameter .980-1.180. Conductor Size 4/0 Stranded/Compressed or 250 kcmil Compact/Solid. No Sealing Kit.Frequently Asked Questions
What is the voltage rating of the K465LR-G0240 deadbreak elbow?
The ABB K465LR-G0240 deadbreak elbow connector is rated for 15/25kV.
What is the maximum cable insulation diameter this elbow can accommodate?
This deadbreak elbow can accommodate cable insulation diameters ranging from 0.760 to 0.950 inches (19.304 to 24.130mm).
What conductor sizes are compatible with the aluminum compression lug?
The included aluminum compression lug is designed for 1/0 AWG stranded/compressed conductors or 2/0 AWG solid/compact conductors.
Does the K465LR-G0240 have a test point?
No, the K465LR-G0240 is a deadbreak elbow connector without a test point.
What standard does this deadbreak elbow exceed?
The ABB K465LR-G0240 deadbreak elbow exceeds the latest revision of the ANSI/IEEE Standard 386.
