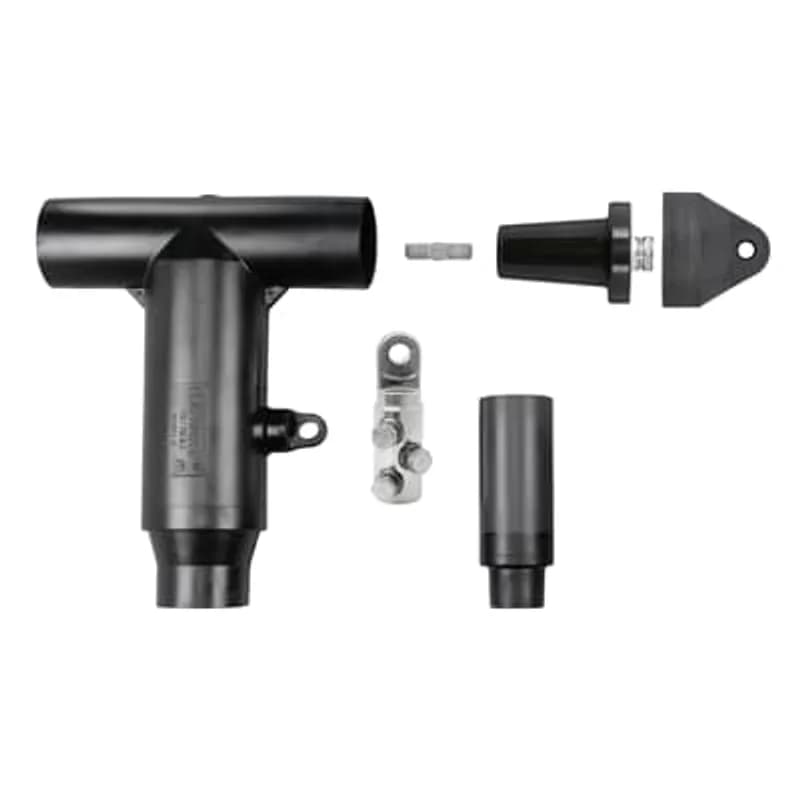

756LR-PAC04-S

The bolt heads shear off at the correct torque, leaving a smooth, flush finish with no protruding edges, which reduces injury risk.

Only a standard wrench is needed for installation; no dies or pneumatic tools are required.

The connectors accommodate multiple wire sizes from #2 AWG to 1500 kcmil.

These connectors are applicable for 600 amp and 900 amp current ratings.

Yes, the shear bolt connection system is compatible with both aluminum and copper conductors.

The connectors are applicable for 600/900 amp elbow connectors, vault stretchers, and straight receptacles from 15 kV up to 35 kV.

The circuit must be de-energized before beginning the installation process.

No, the 1500 kcmil conductor size is only compatible when used with 35 kV systems.

Yes, it is recommended to use the connector vise, part number CV1000, to securely hold the connector during the shearing process.

The bolt heads shear off at the correct torque, leaving a smooth, flush finish with no protruding edges, which reduces injury risk.
