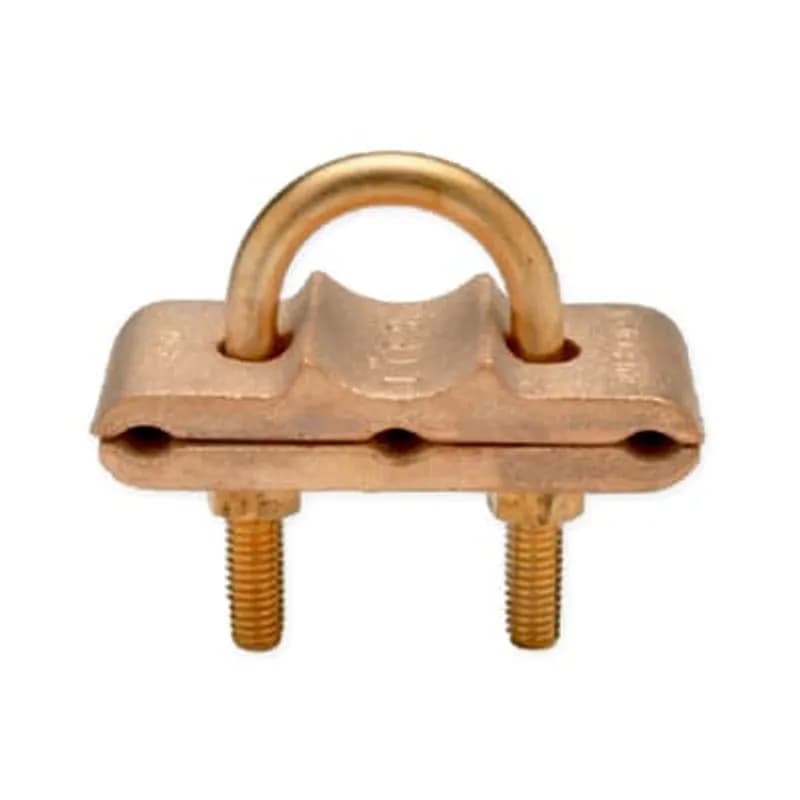

ABB - Installation Products GR6TB - Bronze Ground Clamp Connector - Rod Size 5/8 or 3/4, IPS 3/8, Conductor Range 2/0 Solid - 250kcmil, Wire Range .365 inch - .575 inch

ABB Installation Products GR6TB Bronze Ground Clamp Connector - Rod Size 5/8 or 3/4, IPS 3/8, Conductor Range 2/0 Solid…

UPC: 786210960340


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GR6TB Bronze Ground Clamp Connector is a heavy-duty grounding solution designed for industrial and utility applications requiring secure, low-resistance connections. Compatible with ground rods sized 5/8" or 3/4" and IPS 3/8" threads, this connector accommodates conductor ranges from 2/0 solid to 250kcmil, with wire diameters between .365" and .575". Engineered for durability, the bronze construction resists corrosion and ensures long-term performance in outdoor and harsh environments. Ideal for grounding systems in substations, telecommunications, and commercial electrical installations, the GR6TB meets stringent electrical safety standards. Its compact design simplifies installation while providing a reliable bond for grounding conductors. The connector’s threaded design allows for easy attachment to ground rods, while the clamp mechanism ensures a tight, vibration-resistant connection. Suitable for both new installations and maintenance projects, this connector reduces downtime by delivering consistent performance under demanding conditions.
  • Compatible with 5/8" or 3/4" ground rods
  • IPS 3/8" thread size for standard installations
  • Accepts conductors from 2/0 solid to 250kcmil
  • Wire range: .365" to .575" diameter
  • Bronze construction for corrosion resistance

Specifications

Conductor Material
Bronze
Conductor Size
2/0 AWG - 250kcmil
Material
Bronze
Series
GR6
Size
Rod Size 5/8 or 3/4, IPS 3/8, Conductor Range 2/0 Solid - 250kcmil, Wire Range .365 inch - .575 inch
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.1500 L
Package Weight (Metric)
0.5220 kg
Bronze Ground Clamp Connector - Conductor Range 2/0 Stranded - 250kcmil, Width 2-1/2 Inches/64mm, Wire Diameter Range .365-.575 Inches, Accommodates Rod 5/8 or 3/4 IPS 3/8

GT6TB

Bronze Ground Clamp Connector - Conductor Range 2/0 Stranded - 250kcmil, Width 2-1/2 Inches/64mm, Wire Diameter Range .365-.575 Inches, Accommodates Rod 5/8 or 3/4 IPS 3/8
Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire

PGCB125200

Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire
Access floor grounding clamp for 1 1/2" round pedestals.

GPQC15-1/0

Access floor grounding clamp for 1 1/2" round pedestals.
Heavy Duty Ground Fitting - 4 to 4/0 Ground Wire, Pipe 1/2 inch to 1 inch, Bronze Saddle and U Bolt

GPL3902BU

Heavy Duty Ground Fitting - 4 to 4/0 Ground Wire, Pipe 1/2 inch to 1 inch, Bronze Saddle and U Bolt
Parallel Bronze Ground Clamp Connector - Conductor Range 4 Solid to 2/0

GH2TB

Parallel Bronze Ground Clamp Connector - Conductor Range 4 Solid to 2/0
Silicon Bronze U Bolt Ground Clamp - Conductor Range 4 Solid 0 2/0 Stranded, IPS 3/8, Rod Size 5/8 - 3/4

GUV5821SB

Silicon Bronze U Bolt Ground Clamp - Conductor Range 4 Solid 0 2/0 Stranded, IPS 3/8, Rod Size 5/8 - 3/4
Bronze Parallel Single Clamp - Conductor Range 4 solid - 2/0 Stranded, Wire Diameter Range .204 inch - .419 inch

GHS2-TB

Bronze Parallel Single Clamp - Conductor Range 4 solid - 2/0 Stranded, Wire Diameter Range .204 inch - .419 inch
Heavy Duty Ground Fitting - 4 to 4/0 Ground Wire, Pipe 1-1/2 inch to 2 inch, Bronze Saddle and U Bolt

GPL3903BU

Heavy Duty Ground Fitting - 4 to 4/0 Ground Wire, Pipe 1-1/2 inch to 2 inch, Bronze Saddle and U Bolt

Frequently Asked Questions

What ground rod sizes does the GR6TB support?

The GR6TB supports ground rods sized 5/8" or 3/4".

What is the conductor range for the GR6TB?

The conductor range is 2/0 solid to 250kcmil.

What is the wire diameter range for the GR6TB?

The wire diameter range is .365" to .575".

What is the thread size for the GR6TB?

The thread size is IPS 3/8".

What material is the GR6TB made of?

The GR6TB is made of bronze.
