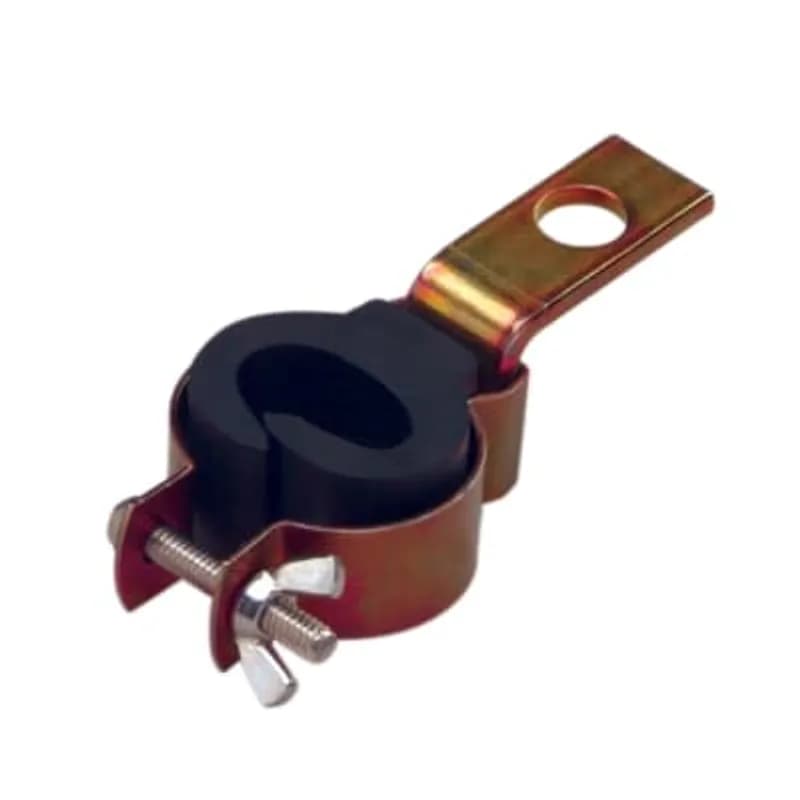

ABB - Installation Products JB-2 - Cable Support Brackets, Single Clamp, 1.10 inch-1.50 inch (28-38 mm), Stainless Steel.

ABB Installation Products JB-2 Cable Support Brackets, Single Clamp, 1.10 inch-1.50 inch (28-38 mm), Stainless Steel.

UPC: 783786535842


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB Installation Products JB-2 stainless steel cable support bracket provides secure single-clamp mounting for cables ranging from 1.10 inch to 1.50 inch (28-38 mm) in diameter. Constructed from corrosion-resistant stainless steel, this bracket is designed for long-term reliability in industrial, commercial, and utility applications where exposure to moisture, chemicals, or outdoor conditions is a concern. The single-clamp design simplifies installation by reducing hardware requirements while maintaining strong cable retention. The bracket's dimensional range accommodates a variety of cable sizes within the specified range, making it a versatile solution for power distribution, control systems, and instrumentation wiring. Typical installations include overhead cable trays, wall-mounted runs, and outdoor conduit systems. Stainless steel construction ensures resistance to rust, corrosion, and environmental stressors, extending service life in harsh or corrosive environments. The bracket's compact footprint minimizes space usage while providing adequate support to prevent cable sag or vibration-induced damage. Compatible with standard mounting hardware, the JB-2 integrates seamlessly with existing cable management infrastructure.
  • Single clamp design for 1.10-1.50 inch (28-38 mm) cables
  • Corrosion-resistant 300 series stainless steel construction
  • Compact footprint for space-efficient installations
  • Compatible with standard mounting hardware
  • Suitable for indoor, outdoor, and corrosive environments

Specifications

Material
Stainless Steel
Size
1.10 inch-1.50 inch (28-38 mm)
Special Features
Single Clamp
Type
Cable Support Bracket
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3000 L
Package Weight (Metric)
0.1360 kg
