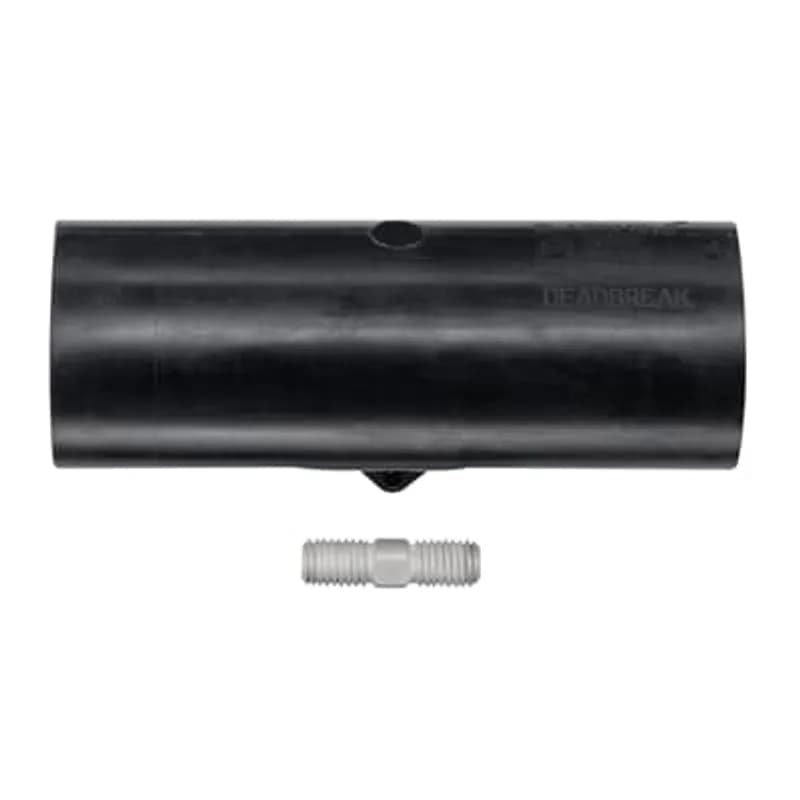

ABB - Installation Products K655BE-20 PACK - 15/25kV 600 Series Deadbreak Bushing Extender (with Stud), Pack of 20.

ABB Installation Products K655BE-20 PACK 15/25kV 600 Series Deadbreak Bushing Extender (with Stud), Pack of 20.

UPC: 783786348091


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This offering consists of 20 units of the ABB K655BE-20 PACK, a 15/25kV 600 Series Deadbreak Bushing Extender. Designed for electrical distribution systems, this extender facilitates the connection of loadbreak elbows to deadbreak bushings. The 600 Series is engineered to meet the requirements for 15kV and 25kV applications, providing a reliable interface for power distribution equipment. Each extender features a stud for secure attachment, ensuring a stable electrical connection. The pack of 20 units is suitable for projects requiring multiple extensions or for stocking purposes in utility and industrial maintenance operations. This component is essential for maintaining the integrity and functionality of medium-voltage electrical networks. The UNSPSC code for this product is 26121630. ABB is a recognized manufacturer in the electrical installation products sector, known for its commitment to quality and performance in power transmission and distribution solutions. The K655BE-20 PACK provides a practical solution for extending the reach and adaptability of existing deadbreak bushing infrastructure, supporting safe and efficient power flow.
  • 15/25kV voltage rating for medium-voltage applications
  • 600 Series Deadbreak Bushing Extender
  • Includes stud for secure connection
  • Pack of 20 units for project efficiency
  • Manufacturer: ABB - Installation Products

Specifications

Application
15/25 kV, 600 Amps
Material
EPDM-Rubber
Special Features
Includes Stud
Type
Bushing Extender
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.3500 L
Package Weight (Metric)
1.0660 kg
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.

150-TB-2

15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
HMI door mounting kit with 15M cable

181B2258

HMI door mounting kit with 15M cable
Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V

103350-4

Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V
15/25kV 600 Series Deadbreak Bushing Extender (with Stud). Pallet packed with 330 boxes.

K655BE-330LOT

15/25kV 600 Series Deadbreak Bushing Extender (with Stud). Pallet packed with 330 boxes.
200 Amp, 15/25kV, Deadbreak Cable Entrance Insulating Plug, Cable Insulation Diameter 1.040 inch to 1.175 inch.

152-EA-HAB

200 Amp, 15/25kV, Deadbreak Cable Entrance Insulating Plug, Cable Insulation Diameter 1.040 inch to 1.175 inch.
200 Amp, 15kV, Insulated Cap with Ground, without Probe, Equipped with Insulated Cuff.

167DRGA

200 Amp, 15kV, Insulated Cap with Ground, without Probe, Equipped with Insulated Cuff.
200 Amp, 15kV, Brackets and hardware only for 164FT (Feed-Thru). Kit Includes Universal Bracket, Bottom Shield Plate, Flat-Head Machine Screws and Instruction Sheet.

164FT-6

200 Amp, 15kV, Brackets and hardware only for 164FT (Feed-Thru). Kit Includes Universal Bracket, Bottom Shield Plate, Flat-Head Machine Screws and Instruction Sheet.
Load Break Parking Stand, Hot Dip Galvanized Steel support for bushing connector. 2.75 inch high x 2.75 inch wide x 1.031 deep on bottom edge (.75 inch deep on top edge). 2 inch wide round bottom slot stops 3/8 inch from bottom edge.

160-PS-H

Load Break Parking Stand, Hot Dip Galvanized Steel support for bushing connector. 2.75 inch high x 2.75 inch wide x 1.031 deep on bottom edge (.75 inch deep on top edge). 2 inch wide round bottom slot stops 3/8 inch from bottom edge.

Frequently Asked Questions

How do I order the 15/25kV 600A bushing extender?

To order the 15/25kV, 600A bushing extender, specify the ordering number K655BE.

What products are compatible with the K655BE extender?

It is compatible with Elastimold products including K651CP, K650BIP, K650RTP, K650J2, K650J3, K650J4, 650ETP, K650ETP, and K650T1.

What is the maximum operating voltage for 15kV class?

For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV and maximum phase-to-phase is 14.4kV.

What is the continuous current rating?

The continuous current rating for both 15kV and 28kV voltage classes is 600 Amp.

What is the purpose of the K655BE bushing extender?

The K655BE bushing extender increases the distance between an apparatus surface and the cable entry point of a 600A elbow connection.

What is the maximum phase-to-phase voltage for 28kV class?

For the 28kV voltage class, the maximum phase-to-phase voltage is 28kV.

What products are compatible with the K655BE extender?

It is compatible with Elastimold products including K651CP, K650BIP, K650RTP, K650J2, K650J3, K650J4, 650ETP, K650ETP, and K650T1.

What is the maximum operating voltage for 15kV class?

For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV and maximum phase-to-phase is 14.4kV.

What is the continuous current rating?

The continuous current rating for both 15kV and 28kV voltage classes is 600 Amp.

What items are included in the K655BE kit?

Each kit contains one K655BE bushing extender housing, two tubes of lubricant 82-08, one stud 650SA, and installation instructions IS-0242.

How to Install the 600/900 AMP Deadbreak Bushing Extension (K655BE-20 PACK)

This guide provides step-by-step instructions for the safe installation, lubrication, and connection of the 600/900 AMP Deadbreak Bushing Extension with various mating components. Ensure all safety precautions are followed.

Estimated time: 1h

Tools needed:

Torque wrench, ELASTIMOLD 600SW spanner wrench, 600-AT tool, Suitable hex tool, 600ATM tool, Wire strippers

Supplies needed:

Bushing Extension (K655BE-20 PACK), Lubricant (supplied or ELASTIMOLD approved), Double-ended stud, Connecting plug (various types), Deadend plug, Reducing tap plug, Reducing tap well, Elbow tap plug, Insulating plug, Protective cap (for insulating plug), #14 AWG copper wire, Suitable ground connector, Compression lug (for temporary use with rubber connecting plug)

  1. Perform Pre-Installation Checks and Safety Procedures

    DANGER: All apparatus must be de-energized during installation or removal of parts. Do not touch or move energized products. This product should be installed only by competent personnel trained in high voltage electrical equipment safety practices. Inspect all parts for damage, correct rating, and compatibility with mating components. Remove any protective shipping covers and replace with appropriate HV insulated caps or connectors before submerging or energizing the circuit. Check package contents for completeness and ensure all components fit properly. Read all instructions thoroughly and maintain cleanliness throughout the procedure.

  2. Prepare and Lubricate the Bushing Extension

    Remove any protective caps from the bushing extension. Clean the entire bushing extension interface thoroughly. Lubricate the cleaned bushing extension interface with the supplied lubricant or an ELASTIMOLD approved lubricant. Ensure mating surfaces remain clean.

  3. Prepare and Connect the Mating Product

    Clean the entire interface of the connecting plug, deadend plug, reducing tap plug, reducing tap well, or elbow tap plug. Lubricate this interface with the supplied lubricant or an ELASTIMOLD approved lubricant. Finger tighten the double-ended stud, supplied with the bushing extension, into the chosen mating product. Insert this assembled product into the bushing extension. While pushing the assembly onto the bushing, engage the threads and hand tighten the connection.

  4. Torque the Assembly to Specification

    Tighten the assembly according to the specific component: For Insulating Plugs ((K)650BIP, (K)675BIP, 750BIP, 775BIP), use a torque wrench and tighten to 50 to 60 foot-pounds. For Epoxy Connecting Plugs ((K)650CP, (K)675CP), Reducing Tap Plugs ((K)650RTP, (K)675RTP), or Tap Wells ((K)650RTW, (K)675RTW), use a torque wrench with an ELASTIMOLD 600SW spanner wrench and tighten to 40 to 48 foot-pounds. For Retainer Sleeve/Pin Contact, use a 600-AT tool with a suitable hex tool and torque to 50 to 60 foot-pounds. For Elbow Tap Plug (750ETP), use a torque wrench with 600ATM and tighten to 50-60 foot-pounds. For Rubber Connecting Plugs (750CP, 775CP), hand tighten the plug, then temporarily install and hand tighten a compression lug and an insulating plug. Use a torque wrench on the insulating plug nut and tighten to 50 to 60 foot-pounds. Hold the compression lug and break the torque at the insulating plug to prevent loosening, then remove the compression lug and insulating plug.

  5. Assemble Remaining Mating Components or Protective Cap

    Clean the remaining interface of the connecting plug, reducing tap plug, reducing tap well, or elbow tap plug. Lubricate this cleaned interface with the supplied lubricant or an ELASTIMOLD approved lubricant. Assemble the appropriate mating component according to its specific instructions. If using an insulating plug, assemble the provided protective cap as per its instructions.

  6. Connect Grounding Wire

    Connect a short length of #14 AWG copper wire or equivalent to the grounding eye of the bushing extension. Form a small loop and twist it tightly, taking care not to damage the eye. Connect this wire to ground using a suitable connector. If any mating components assembled in Step 5 require a ground connection, connect them to ground in the same manner.
