UPC: 783786800711
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*

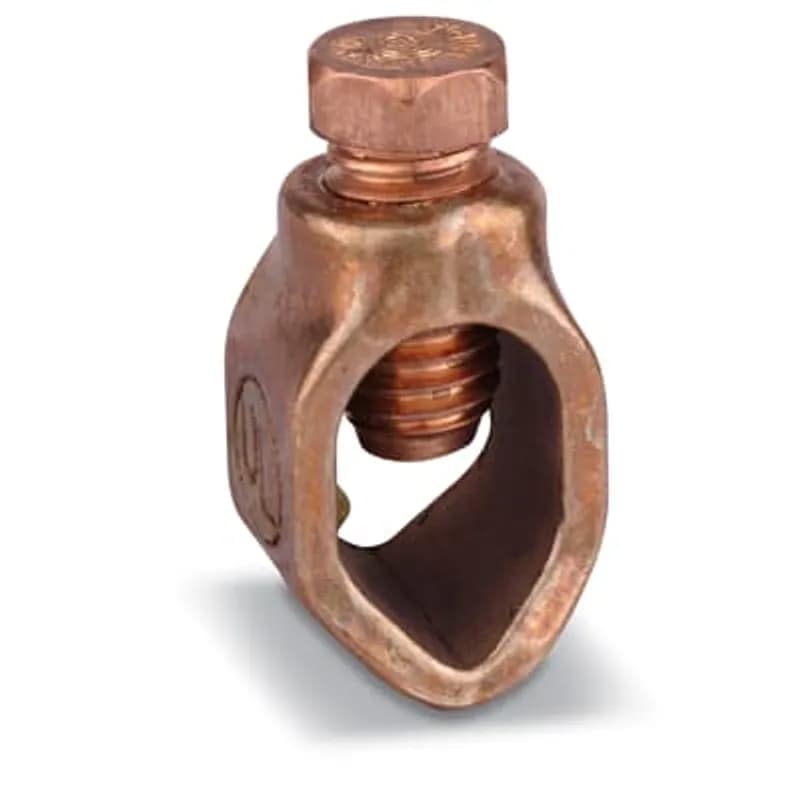

Overview
- Accepts 3/4" diameter ground rods
- Connects stranded wire from 8 AWG to 1/0 AWG
- Socket set screw for tool-assisted installation
- Copper alloy construction for corrosion resistance
- UL-listed and NEC/IEEE compliant
Specifications
Conductor Material | Copper |
Conductor Size | 8 - 1/0 AWG |
Connection Type | Socket Set Screw |
Size | 3/4 |
Special Features | Cast of high-strength corrosion-resistant copper alloy. UL listed for direct burial |
Standard | UL E3060, CSA 29625 |
Type | Ground Rod Clamp |
Package Dimensions (L x W x H) | 5 IN x 4.37 IN x 6.5 IN |
Package Dimensions (L x W x H) | 12.7 cm x 11.0998 cm x 16.51 cm |
Package Weight (Imperial) | 0.1200 L |
Package Weight (Metric) | 0.0540 kg |
GG40250-2030
E-Z-Ground Ground Grid Copper Compression Connector, Cable Range 4/0 or 250 kcmil, Ground Rod 1/2 and 5/8 Inch, Direct Burial
80024
Grounding pigtail with an insulated lead and a GSH grounding screw on one end. It is designed to make grounding an electrical circuit fast and easy. The lead is 9 inches long and uses 10 AWG wire.
3900
Signal Reference Grid Steel Connector for Wire Range #8 - #4, For Posts 3/4 inch square and 1 inch Round3900BP
Signal Reference Grid Steel Clamp for Wire Range #8 - #4, For Posts 3/4 inch square and 1 inch Round
3902BU
Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 1/2 - 1 , Bronze Saddle with Bronze U-BoltFrequently Asked Questions
What is the screw thread size for JAB34 clamps?
The screw thread size for JAB34 and JAB34H clamps is 7/16-14 UNC-2A.
What is the nominal rod diameter for JAB34 clamps?
The JAB34 and JAB34H clamps are designed for a nominal rod diameter of 3/4 inch (19.0 mm).
What is the wire range for JAB34 ground clamps?
JAB34 clamps accommodate a wire range from 1/0 STR. (53.4 mm) maximum to 8 SOL. (8.3 mm) minimum.
Are JAB34 ground clamps UL listed?
No, the JAB34 ground clamps are explicitly noted as "NOT UL LISTED" in the document.
What is the nominal rod diameter for JAB34 clamps?
The JAB34 and JAB34H clamps are designed for a nominal rod diameter of 3/4 inch (19.0 mm).
What is the wire range for JAB34 ground clamps?
JAB34 clamps accommodate a wire range from 1/0 STR. (53.4 mm) maximum to 8 SOL. (8.3 mm) minimum.
Are JAB34 ground clamps UL listed?
No, the JAB34 ground clamps are explicitly noted as "NOT UL LISTED" in the document.
What is the screw thread size for JAB34 clamps?
The screw thread size for JAB34 and JAB34H clamps is 7/16-14 UNC-2A.
What is the screw thread size for JAB34 clamps?
The screw thread size for JAB34 and JAB34H clamps is 7/16-14 UNC-2A.
Are JAB34 ground clamps UL listed?
No, the JAB34 ground clamps are explicitly noted as "NOT UL LISTED" in the document.
