UPC: 786210773650
Contact for Pricing
Minimum Qty: 200
Multiplier: 200
*Contact for lower quantities*
Overview

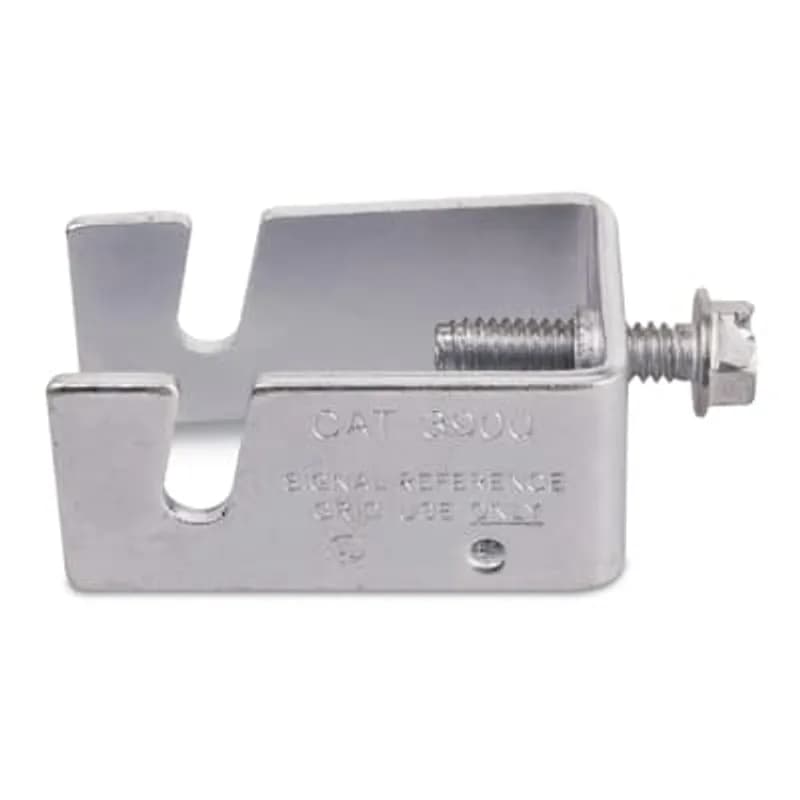

- Securely fastens wire ranges from #8 AWG to #4 AWG.
- Compatible with 3/4 inch square posts.
- Compatible with 1 inch round posts.
- Constructed from durable steel for reliable performance.
- Designed for signal reference grid and grounding applications.
Specifications
Material | Steel |
Series | 3900BP |
Size | For Posts 3/4 inch square and 1 inch Round |
Special Features | Range-taking desing accepts #8 to #4 AWG grid wire and fits1 inch round and 3/4 inch square trade size support posts. Lay-in feature means no kinks or bends |
Standard | UL E3060 |
Type | Ground Clamp |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1400 L |
Package Weight (Metric) | 0.0640 kg |
CNBK
The CNBK High Carbon Steel Bonding Cage Nut Kit creates an electrical bond between the mounting rails and equipment that conforms to EIA-310 specifications for racks and cabinets. The CNBK Bonding Cage Nut Kit is made from high carbon steel and installed with a Phillips, flat blade, or nut screwdriver.
80006P
This is a grounding screw for grounding and metal box applications. It is a #10-32 x 3/8 in hex washer head screw with Phillips/Slotted drive and Type F point. The screw is zinc plated and green in color.
3902BU
Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 1/2 - 1 , Bronze Saddle with Bronze U-Bolt
SP0DL
Long Stud Double Service Post Connectors for Conductors 8 - 12 Stranded, 8 - 12 Solid, Stud Size 1/4 - 20 x 1How to Install the 3900BP Signal Reference Grid Clamp
This guide provides step-by-step instructions for installing the 3900BP Signal Reference Grid Clamp, designed to firmly secure bare grid wires to support posts in a raised floor area.
Estimated time: 15m
Tools needed:
Nut runner hand wrench, Ratchet wrench, Screwdriver
Supplies needed:
3900BP Signal Reference Grid Clamp, Grid wire
- Prepare the Support Post Surface
Clean the support post surface thoroughly, ensuring it is free of dirt, paints, electrical tape, rust, or any other material that could create an insulating layer between the bare wire and the bare post. The clamp is designed for 1” round or 3/4” square trade size support posts.
- Position the Clamp on the Support Post
Slip the 3900BP clamp around the vertical support post, ensuring its slot faces upward. If installing on a smaller 3/4” square trade size post, hand-hold the clamp to prevent it from rotating downward prematurely.
- Prepare and Secure the Grid Wire
If the grid wire has insulation, remove it from the section that will connect to the support post to ensure bare wire contact. Lay the bare grid wire into the clamp's slot. While holding the wire firmly at the bottom of the slot, tighten the screw using a nut runner hand wrench, ratchet wrench, or screwdriver. The clamp will rotate slightly downward during tightening to secure the grid wire firmly against the support post.
- Observe Caution
Do not use this clamp for grounding fault currents. This clamp is specifically designed for signal reference grid applications and is not intended for fault current grounding.
