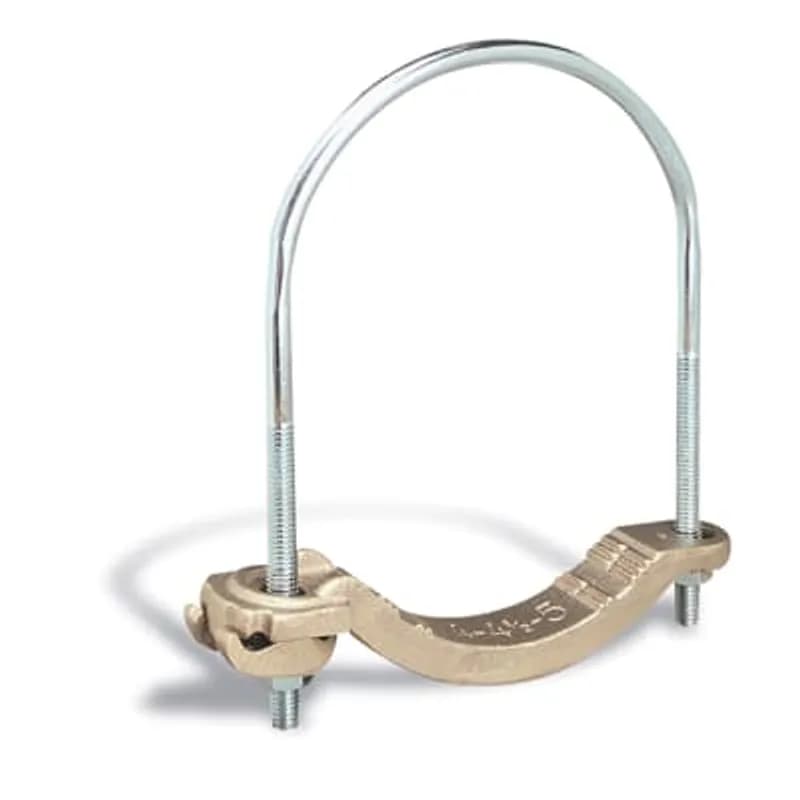

ABB - Installation Products 3902BU - Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 1/2 - 1 , Bronze Saddle with Bronze U-Bolt
More images
ABB - Installation Products

3902BU

UPC: 786210805771

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The ABB 3902BU waterpipe ground clamp is a heavy-duty bronze grounding solution designed for secure electrical connections to water pipes in residential, commercial, and industrial applications. Constructed from high-strength copper alloy with over 80% copper content, this clamp ensures maximum conductivity and corrosion resistance, making it ideal for outdoor and buried installations. The bronze saddle and U-bolt design provides a tight, vibration-resistant grip on pipes ranging from 1/2 inch to 1 inch in diameter, while accommodating grounding conductors from 4 AWG to 4/0 AWG. Key features include a durable bronze construction for long-term performance, a U-bolt tightening mechanism for easy installation, and a saddle shape that ensures full surface contact with the pipe for optimal electrical continuity. Common applications include grounding water service pipes, electrical systems, utility installations, and grounding electrode systems where a secure, corrosion-resistant clamp is required. The ABB 3902BU is part of the Blackburn® Grounding Systems line, a trusted brand in electrical infrastructure solutions. Its robust design and high-conductivity materials make it suitable for harsh environments where durability and electrical performance are critical.
  • Bronze construction with over 80% copper for high conductivity and corrosion resistance
  • Accommodates wire ranges from 4 AWG to 4/0 AWG
  • Fits water pipe sizes from 1/2 inch to 1 inch
  • UL 467 listed for direct burial applications
  • U-bolt design ensures secure attachment to pipes

Specifications

Application
UL Listed for Direct Burial
Conductor Material
Bronze
Conductor Size
36620
Insulation
None
Standard
UL E3060
Type
Ground Clamp
Package Dimensions (L x W x H)
5 IN x 4.5 IN x 3 IN
Package Dimensions (L x W x H)
12.7 cm x 11.43 cm x 7.62 cm
Package Weight (Imperial)
0.5700 L
Package Weight (Metric)
0.2590 kg
Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 10 , Bronze Saddle with Bronze U-Bolt

3908BU

Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 10 , Bronze Saddle with Bronze U-Bolt
Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire

PGCB125200

Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire
Access floor grounding clamp for 1 1/2" round pedestals.

GPQC15-1/0

Access floor grounding clamp for 1 1/2" round pedestals.
This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.

95154

This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.
Ground Rod Clamps Type JAB , Rod Size 5/8, Wire Range 8 Sol - 1/0 Str, Hex Head Bolt

JAB58H

Ground Rod Clamps Type JAB , Rod Size 5/8, Wire Range 8 Sol - 1/0 Str, Hex Head Bolt
Long Stud Double Service Post Connectors for Conductors 8 - 12 Stranded, 8 - 12 Solid, Stud Size 1/4 - 20 x 1

SP0DL

Long Stud Double Service Post Connectors for Conductors 8 - 12 Stranded, 8 - 12 Solid, Stud Size 1/4 - 20 x 1
Ground Rod Clamps Type JAB , Rod Size 5/8, Wire Range 8 Sol - 1/0 Str, Socket Set Screw

JAB58

Ground Rod Clamps Type JAB , Rod Size 5/8, Wire Range 8 Sol - 1/0 Str, Socket Set Screw
Long Stud Single Service Post Connectors for Conductors 8 - 12 Stranded, 8 - 12 Solid, Stud Size 1/4 - 20 x 1

SP0SL

Long Stud Single Service Post Connectors for Conductors 8 - 12 Stranded, 8 - 12 Solid, Stud Size 1/4 - 20 x 1

Frequently Asked Questions

What wire sizes does the ABB 3902BU support?

The ABB 3902BU supports grounding conductors from 4 AWG to 4/0 AWG.

What pipe sizes are compatible with the 3902BU clamp?

The clamp fits water pipes ranging from 1/2 inch to 1 inch in diameter.

What material is the ABB 3902BU made from?

The clamp is constructed from high-strength copper alloy with over 80% copper content.

Is the ABB 3902BU suitable for direct burial?

Yes, the ABB 3902BU is UL 467 listed for direct burial applications.

Does the ABB 3902BU meet any industry standards?

Yes, the clamp is UL 467 listed for grounding applications.
