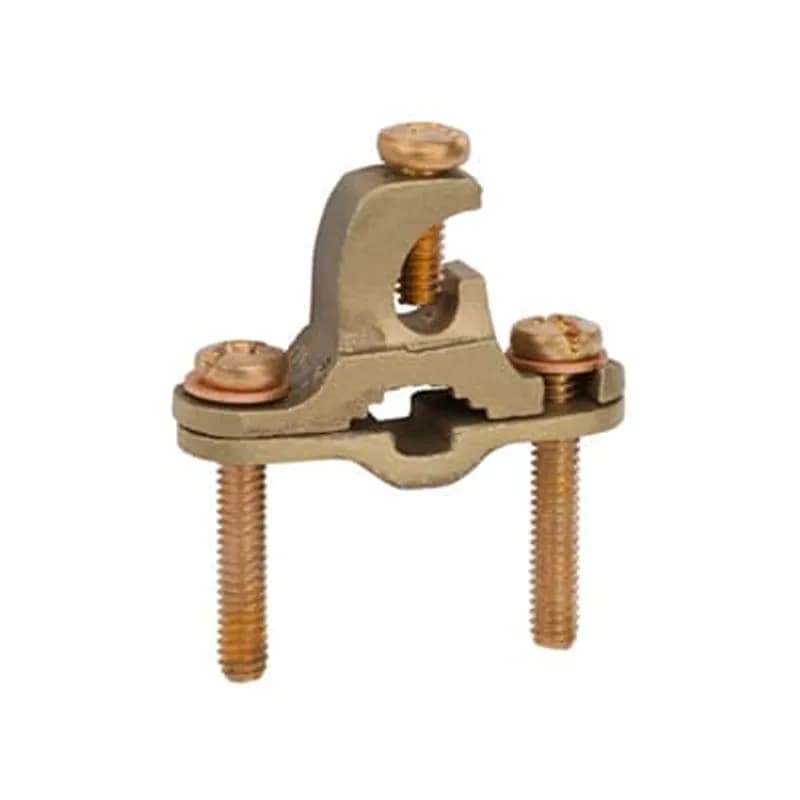

ABB - Installation Products JDLI-B1-10 - Direct burial ground clamp for wire range 10-2,Pipe size 1/2 - 1, Ground rod range 1/4 - 1

ABB Installation Products JDLI-B1-10 Direct burial ground clamp for wire range 10-2,Pipe size 1/2 - 1, Ground rod range 1/4 - 1

UPC: 783786070510


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB JDLI-B1-10 is a direct burial ground clamp designed for secure electrical grounding in industrial and utility applications. Constructed from bronze alloy and high-performance stainless steel bolts, this clamp accommodates wire sizes from #10 AWG solid to #2 AWG stranded, pipe sizes from 1/2 to 1 inch, and ground rod diameters from 1/4 to 1 inch. It is UL® Listed for direct burial in earth or concrete, and for connection to ground rod, pipe, or rebar up to 1 inch. The JDLI series features a lay-in feature that reduces installation time for difficult bends or continuous loops of ground wire. This clamp is part of ABB’s Installation Products line, offering robust electrical components. The direct burial design eliminates the need for additional enclosures, reducing installation time and material costs. The clamp’s bronze alloy and stainless steel construction provides high conductivity and corrosion resistance, critical for maintaining low-resistance ground paths in underground environments. Ideal for grounding systems in power distribution, telecommunications, and renewable energy installations, the JDLI-B1-10 ensures reliable grounding connections.
  • UL® Listed for direct burial in earth and concrete
  • UL® Listed for connection to ground rod, pipe, or rebar up to 1"
  • Constructed from bronze alloy and high-performance stainless steel bolts
  • Accommodates wire range #10 AWG solid to #2 AWG stranded
  • Designed for easy installation of difficult bends or continuous loops
