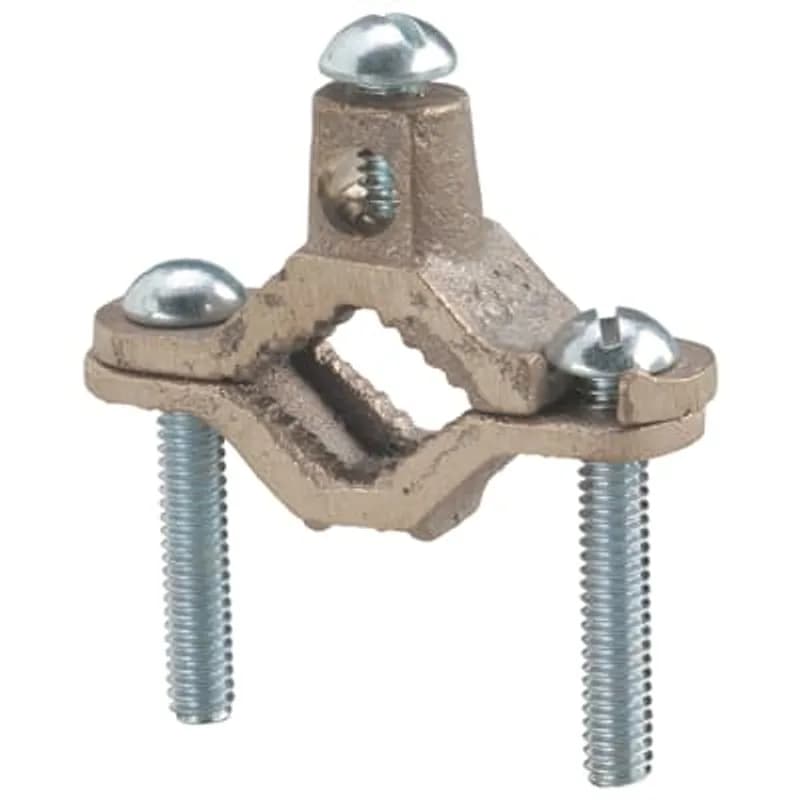

ABB - Installation Products L181B-B1-15 - 1/2 inch to 1 inch Brass Ground Clamp. Wire size #8 to #4. Bare/armored wire.

ABB Installation Products L181B-B1-15 1/2 inch to 1 inch Brass Ground Clamp. Wire size #8 to #4. Bare/armored wire.

UPC: 783786082490


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 15

Multiplier: 15

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products L181B-B1-15 is a brass ground clamp designed for secure electrical grounding connections. This clamp accommodates pipe sizes ranging from 1/2 inch to 1 inch, providing a versatile solution for various conduit installations. It is engineered to accept wire sizes from #8 AWG to #4 AWG, suitable for both bare and armored electrical wires. The robust brass construction ensures reliable conductivity and corrosion resistance, essential for long-term grounding integrity in industrial and commercial settings. This clamp is a critical component for ensuring safety and compliance with electrical codes by establishing a low-resistance path to ground. Its straightforward design allows for efficient installation, minimizing labor time. The SKU L181B-B1-15 signifies a dependable grounding solution from ABB, a recognized manufacturer in electrical installation products. Key specifications include: * Pipe Size Compatibility: 1/2 inch to 1 inch * Wire Size Compatibility: #8 AWG to #4 AWG * Wire Type: Bare or Armored * Material: Brass This clamp is essential for applications requiring a solid and dependable ground connection, such as in power distribution systems, building wiring, and equipment grounding. Its ability to handle a range of wire gauges and pipe diameters makes it a practical choice for electricians and contractors.
  • Designed for 1/2 inch to 1 inch pipe sizes.
  • Accommodates wire sizes #8 AWG to #4 AWG.
  • Suitable for both bare and armored electrical wire.
  • Constructed from durable brass for conductivity and corrosion resistance.
  • ABB Installation Products SKU: L181B-B1-15.

Specifications

Conductor Material
Brass
Size
1/2 Inch to 1 Inch
Package Dimensions (L x W x H)
1 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
2.54 cm x 2.54 cm x 2.54 cm
Package Weight (Imperial)
0.2100 L
Package Weight (Metric)
0.0950 kg
