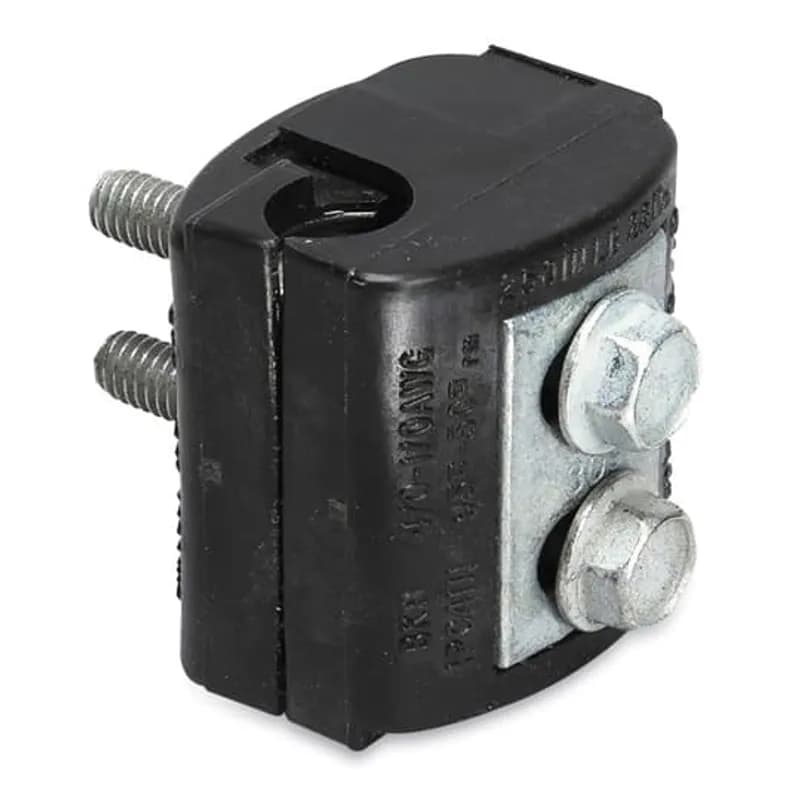

ABB - Installation Products IPC4111 - Type IPC - Talon Insulation Piercing Connector for Conductor Range Main: 4/0-1/0 AWG, 95-50 MM sq., Tap: 1/0-6 AWG, 50-16 MM sq.

ABB Installation Products IPC4111 Type IPC - Talon Insulation Piercing Connector for Conductor Range Main: 4/0-1/0 AWG…

UPC: 783786331116


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 30

Multiplier: 30

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB IPC4111 Talon Insulation Piercing Connector is a Type IPC connector designed for reliable, permanent connections in electrical installations. It accommodates a main conductor range of 4/0 to 1/0 AWG (95 to 50 mm²) and a tap conductor range of 1/0 to 6 AWG (50 to 16 mm²), making it suitable for branch circuit and feeder applications. The connector pierces insulation to establish a secure, corrosion-resistant connection without stripping wires, reducing installation time and eliminating the need for additional tools beyond a standard torque wrench. Engineered for use in industrial, commercial, and utility environments, the IPC4111 ensures consistent electrical performance with minimal voltage drop. The connector is UL listed and meets industry standards for electrical safety and durability. Ideal for applications such as panelboards, motor control centers, and distribution systems, the IPC4111 simplifies branch circuit connections in new construction or retrofit projects. The connector’s design minimizes human error by eliminating manual wire stripping and ensuring proper torque application. For maintenance teams, this reduces downtime and improves system reliability.
  • Main conductor range: 4/0 to 1/0 AWG (95 to 50 mm²)
  • Tap conductor range: 1/0 to 6 AWG (50 to 16 mm²)
  • No wire stripping required; reduces installation time
  • UL listed for compliance with electrical safety standards

Specifications

Color
Black
Number of Mounting Holes
2
Special Features
For copper-to-copper, copper-to-aluminum and aluminum-to-aluminum applications (insulated conductor only). Performs as splice or tab for non-tension applications up to 600 volts, depending on size of connector
Standard
UL E9809
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Insulated Conductor Connectors
Voltage Rating
300 V
Package Dimensions (L x W x H)
8.39 IN x 6.7 IN x 7.3 IN
Package Dimensions (L x W x H)
21.3106 cm x 17.018 cm x 18.542 cm
Package Weight (Imperial)
0.5200 L
Package Weight (Metric)
0.2360 kg
