ABB - Installation Products IPC3535 - Type IPC - Talon Insulation Piercing Connector for Conductor Range Main: 350-4/0 AWG, 185-95 MM sq., Tap: 350-4/0 AWG, 185-95 MM sq.
ABB - Installation Products

IPC3535

UPC: 783786331147

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 12

Multiplier: 12

*Contact for lower quantities*

Overview

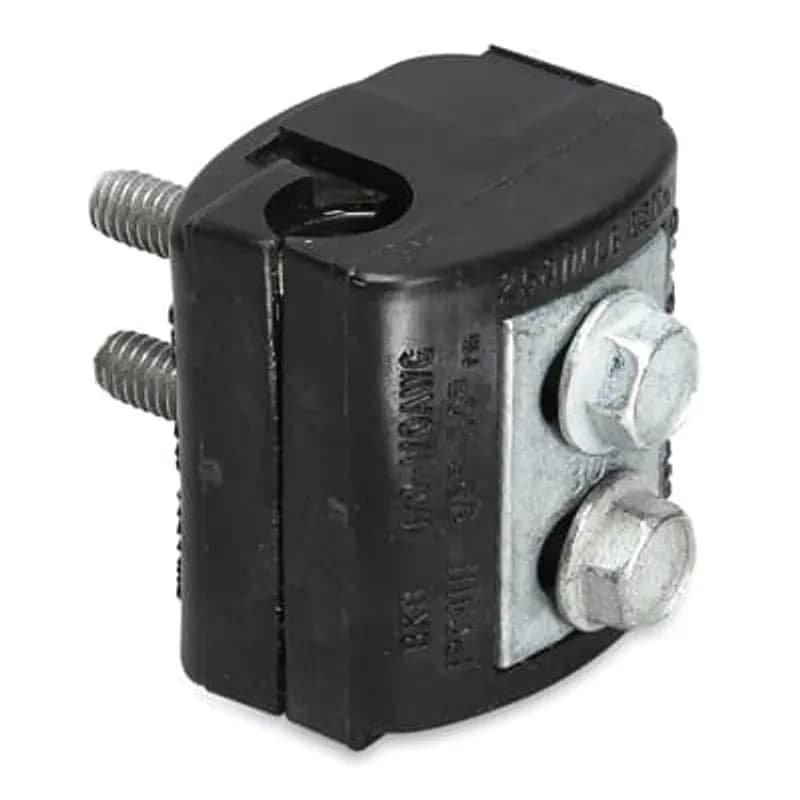

The ABB Installation Products Type IPC Talon Insulation Piercing Connector, SKU IPC3535, is engineered for reliable electrical connections in demanding utility and industrial applications. This connector is designed to pierce the insulation of main conductors and tap conductors without requiring pre-stripped wires, simplifying installation and reducing labor time. The IPC3535 accommodates a broad conductor range, supporting main conductors from 350 to 4/0 AWG (185 to 95 MM sq.) and tap conductors within the same range (350 to 4/0 AWG, 185 to 95 MM sq.). This versatility makes it suitable for a variety of overhead and underground distribution systems. The Talon design ensures a secure, low-resistance connection through its robust construction and specialized piercing teeth. Key features include: - Conductor Range Main: 350-4/0 AWG / 185-95 MM sq. - Conductor Range Tap: 350-4/0 AWG / 185-95 MM sq. - Manufacturer: ABB - Installation Products - Model: Type IPC Talon The IPC3535 provides a direct and efficient method for establishing electrical continuity, minimizing potential failure points associated with traditional connection methods. Its application is critical in power distribution networks where dependable performance is paramount. UNSPSC Code: 39121408.
  • Connects main and tap conductors without stripping insulation.
  • Suitable for conductor ranges: Main: 350-4/0 AWG (185-95 MM sq.), Tap: 350-4/0 AWG (185-95 MM sq.).
  • ABB Installation Products Type IPC Talon design.
  • Ensures secure, low-resistance electrical connections.
  • Simplifies installation and reduces labor time.

Specifications

Color
Black
Number of Mounting Holes
2
Special Features
For copper-to-copper, copper-to-aluminum and aluminum-to-aluminum applications (insulated conductor only). Performs as splice or tab for non-tension applications up to 600 volts, depending on size of connector
Standard
UL E9809
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Insulated Conductor Connectors
Voltage Rating
300 V
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0600 L
Package Weight (Metric)
0.4810 kg
