ABB - Installation Products IPC 402-8 N - Tin-Plated Aluminum, Neutral Tap Connector, Main #2-4/0, Main Torque 100 Inch/Pounds, Tap #12-#4. Tap Torque 42 Inch/Pounds . 2.958 inch long X .750 inch wide X 1.562 inch Depth. Machined. Has Threaded hole and Recessed Hex-Head screw, with (8) Taps (1/4-20 x 5/16 inch) and (1) Main Socket Head Cup Point Set Screws. Under 1000 Volts. Non-Insulation Piercing - NO Teeth.

ABB Installation Products IPC 402-8 N Tin-Plated Aluminum, Neutral Tap Connector, Main #2-4/0, Main Torque 100 Inch/Pounds…

UPC: 783786379026


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

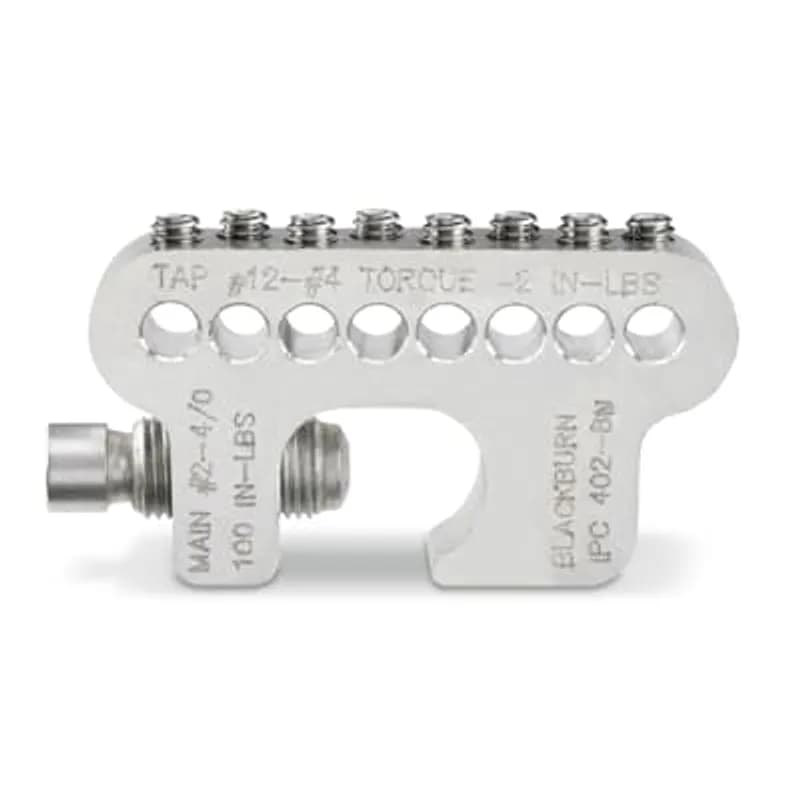

The ABB IPC 402-8 N is a precision-machined, tin-plated aluminum neutral tap connector engineered for reliable electrical distribution in commercial and industrial applications. The IPC 402-8 N accommodates a main conductor range from #2 to #4/0 AWG with a torque rating of 100 inch-pounds, while supporting tap conductors from #12 to #4 AWG at 42 inch-pounds. Its compact dimensions (2.958" L x 0.750" W x 1.562" D) make it ideal for space-constrained panels and enclosures. The connector features a threaded hole with a recessed hex-head screw for the main conductor and eight (8) 1/4-20 x 5/16" threaded taps for secure tap connections. Unlike insulation-piercing designs, this non-teeth connector ensures clean terminations without damaging conductor strands, making it suitable for both new installations and maintenance work. Its tin-plated aluminum construction provides excellent corrosion resistance and electrical conductivity, while the socket head cup point set screw ensures consistent torque application. Whether used in power distribution panels, motor control centers, or branch circuit wiring, this connector delivers durable performance with minimal maintenance requirements.
  • Main conductor range: #2 to #4/0 AWG (torque: 100 in-lbs)
  • Tap conductor range: #12 to #4 AWG (torque: 42 in-lbs)
  • Tin-plated aluminum construction for corrosion resistance and conductivity
  • Non-insulation piercing design with recessed hex-head screw for clean terminations
  • Compact dimensions: 2.958" L x 0.750" W x 1.562" D
  • Eight (8) 1/4-20 x 5/16" threaded taps for secure tap connections
  • Socket head cup point set screw for main conductor retention

Specifications

Connection
Mechanical
Connection Type
Threaded hole and Recessed Hex-Head screw
Finish
Tin Plated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Material
Aluminum
Series
IPC 402
Size
2.958 inch long X .750 inch wide X 1.562 inch Depth
Type
Tap Connector
Voltage Rating
<1000 V
Wire Size
Main #2 to 4/0 AWG , Tap #12 to #4 AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2300 L
Package Weight (Metric)
0.1040 kg
Tin-Plated Aluminum, Insulation Piercing Connector, Main #2-4/0, Main Torque 100 Inch/Pounds, Tap #12-#4. Tap Torque 42 Inch/Pounds . 2.958 inch long X .750 inch wide X 1.562 inch Depth. Machined. Has 1/2-20 UNF-2B Thru Threaded hole, with (8) Taps and (1) Main Socket Head Cup Point Set Screws. Under 1000 Volts. Insulation Piercing - Has Teeth.

IPC 402-8

Tin-Plated Aluminum, Insulation Piercing Connector, Main #2-4/0, Main Torque 100 Inch/Pounds, Tap #12-#4. Tap Torque 42 Inch/Pounds . 2.958 inch long X .750 inch wide X 1.562 inch Depth. Machined. Has 1/2-20 UNF-2B Thru Threaded hole, with (8) Taps and (1) Main Socket Head Cup Point Set Screws. Under 1000 Volts. Insulation Piercing - Has Teeth.
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Lock on Insulating Cover for Item IPC 402-8 (Insulation Piercing Connector for 4/0-2 Min with 8 Taps). Item is Hinged. Overall Open Length 8.95 inch, Height 2.04 inch, Width 2.15 inch. Material Black Santoprene. Cover Only.

IPC 402 C

Lock on Insulating Cover for Item IPC 402-8 (Insulation Piercing Connector for 4/0-2 Min with 8 Taps). Item is Hinged. Overall Open Length 8.95 inch, Height 2.04 inch, Width 2.15 inch. Material Black Santoprene. Cover Only.
Tin Plated Aluminum Compression Pin Terminals - PT Series, Conductor Size Aluminum - 336.4 and 350 Stranded, 266.8 (26/7), 266.8 (26/7), 336.4 (18/1)ACSR, Installing Dies 96,472,705,1-1/8-1, Solid Copper Pin 15/32, Length 4 Inch.

PTB 350 TN

Tin Plated Aluminum Compression Pin Terminals - PT Series, Conductor Size Aluminum - 336.4 and 350 Stranded, 266.8 (26/7), 266.8 (26/7), 336.4 (18/1)ACSR, Installing Dies 96,472,705,1-1/8-1, Solid Copper Pin 15/32, Length 4 Inch.
Aluminum Pin Terminal - Conductor Size 954 - 1000 kcmil or 795 26/7 954 45/7 ACSR. Tin-Plated Pin Length 6 Inches with Threads 2.500 Inches Long 1-14 UNS-2A. Dies 140H, 301, 342, 724, 1 1/2. Brown Caps. Body 6.187 inch long x 1.604 inch Diameter. Bores 1.193 Diameter x 3.375 inch long and 1.031 Diameter x 2.562 inch long.

PTL 1000-8051

Aluminum Pin Terminal - Conductor Size 954 - 1000 kcmil or 795 26/7 954 45/7 ACSR. Tin-Plated Pin Length 6 Inches with Threads 2.500 Inches Long 1-14 UNS-2A. Dies 140H, 301, 342, 724, 1 1/2. Brown Caps. Body 6.187 inch long x 1.604 inch Diameter. Bores 1.193 Diameter x 3.375 inch long and 1.031 Diameter x 2.562 inch long.
Aluminum H-Type Compression Connector - Main 100 millimeters squared ACSR, Tap 100 millimeters squared ACSR, Die D, Length 2.1870 inches,

DB 100 MM 100 MM

Aluminum H-Type Compression Connector - Main 100 millimeters squared ACSR, Tap 100 millimeters squared ACSR, Die D, Length 2.1870 inches,
Tin Plated Copper Pin Terminal. 1000 MCM Copper, Dies 125, 27, 1 1/2. Overall Length 13.468 inches . Pin 10 inches long x 1.000 inch diameter. Body 3.468 inches x Diameter 1.500 inches. Bore 1.172 inch diameter x 2.718 inches deep.

CPT 1000-10

Tin Plated Copper Pin Terminal. 1000 MCM Copper, Dies 125, 27, 1 1/2. Overall Length 13.468 inches . Pin 10 inches long x 1.000 inch diameter. Body 3.468 inches x Diameter 1.500 inches. Bore 1.172 inch diameter x 2.718 inches deep.
Type L,Copper single conductor,one hole mount,for conductor range 14 Sol- 8 Str.

L35-B2-5

Type L,Copper single conductor,one hole mount,for conductor range 14 Sol- 8 Str.

Frequently Asked Questions

Does this connector require conductor insulation stripping?

No, the IPC 402-8 N is a non-insulation piercing design and does not require conductor insulation stripping.

What materials is the connector made from?

The connector is made from tin-plated aluminum for corrosion resistance and electrical conductivity.

What are the physical dimensions of the connector?

The connector measures 2.958 inches in length, 0.750 inches in width, and 1.562 inches in depth.

What conductor sizes does the IPC 402-8 N support?

The connector supports main conductors from #2 to #4/0 AWG and tap conductors from #12 to #4 AWG.

What torque values are required for installation?

Main conductor torque is 100 inch-pounds and tap conductor torque is 42 inch-pounds.

What is the maximum voltage rating for this connector?

The IPC 402-8 N is rated for applications under 1000 volts.

How to Install the IPC 402-8K Insulation Piercing and Neutral Connector Kit

This guide provides step-by-step instructions for installing the IPC 402-8K Insulation Piercing Connector and Neutral Connector Kit, including connecting customer and neutral service cables and securing the connector cover.

Estimated time: 45m

Tools needed:

Insulated wrench, Wire strippers, Optional alignment tool

Supplies needed:

IPC 402-8K Insulation Piercing Connector, Neutral Connector, Insulated cable, Customer Service Cable, Neutral Cable, Connector Cover (IPC-402-8C), Utility lock (optional)

  1. Disconnect Power

    WARNING: Risk of shock. Disconnect all power to the circuit before beginning installation to ensure safety.

  2. Install Insulation Piercing Connector on Main Cable

    Place the Insulation Piercing Connector onto the insulated main cable. Hold the connector firmly in place and tighten its setscrew with an insulated wrench until the screw head shears off. An optional alignment tool can be used to keep the connector perpendicular to the conductor.

  3. Prepare Customer Service Cable

    Prepare the Customer Service Cable by stripping 1 inch of insulation from its end.

  4. Connect Customer Service Cable

    Install the stripped end of the Customer Service Cable into one of the cable ports on the Insulation Piercing Connector. Tighten the setscrew on the back of the connector to 60 in-lbs. Repeat this step for any additional Customer Service Cables.

  5. Install Connector Cover

    Place the Connector Cover (sold separately) under the Insulation Piercing Connector and lift it up. Close the lid, ensuring the latches snap shut. If desired, add a utility lock (not supplied) to the connector cover for added security.

  6. Install Neutral Connector on Neutral Cable

    Place the Neutral Connector onto the Neutral cable. Hold the connector firmly in place and tighten its setscrew with an insulated wrench until the screw head shears off. An optional alignment tool can be used.

  7. Connect Neutral Service Cable

    Install the Neutral Service Cable into one of the cable ports on the Neutral Connector. Tighten the setscrew on the back of the connector to 60 in-lbs. Repeat this step for any additional Neutral Service Cables.
