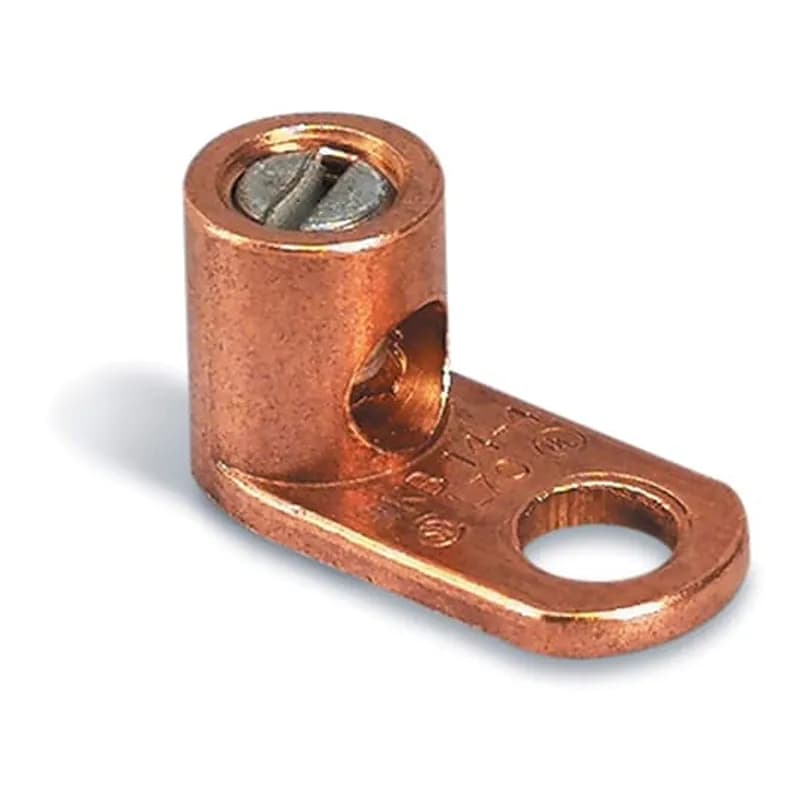

ABB - Installation Products L35-B2-5 - Type L,Copper single conductor,one hole mount,for conductor range 14 Sol- 8 Str.

ABB Installation Products L35-B2-5 Type L,Copper single conductor,one hole mount,for conductor range 14 Sol- 8 Str.

UPC: 783786070404

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB L35-B2-5 is a Type L single conductor terminal designed for reliable electrical connections. Manufactured by ABB - Installation Products, this terminal is constructed from high-quality copper, ensuring excellent conductivity and durability for industrial applications. It features a one-hole mount design, facilitating straightforward installation onto busbars or mounting plates. The L35-B2-5 is engineered to accommodate a conductor range from 14 AWG solid wire up to 8 AWG stranded wire. This versatility makes it suitable for a variety of wiring tasks where secure and efficient termination of single conductors is essential. Its robust copper construction provides resistance to corrosion and mechanical stress, contributing to long-term operational integrity. The SKU L35-B2-5, with UNSPSC code 39121409, is a key component for electrical distribution and control systems. Ensure proper torque is applied during installation to achieve optimal electrical contact and mechanical security. This terminal is a practical choice for electricians and maintenance professionals seeking dependable connection solutions for their projects.
  • Type L single conductor terminal
  • Constructed from high-quality copper
  • One-hole mount design for easy installation
  • Accommodates conductor range: 14 AWG Solid - 8 AWG Stranded
  • Ideal for industrial electrical connections

Specifications

Connection Type
One Hole Mount
Housing Material
Copper
Insulation
None
Material
Copper
Mounting
Screw
Mounting Type
One Hole Mount
Number Of Conductors
1
Size
14 AWG - 8 AWG
Type
Type L Copper Single Conductor
Wire Size
14-8 AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0300 L
Package Weight (Metric)
0.0140 kg
