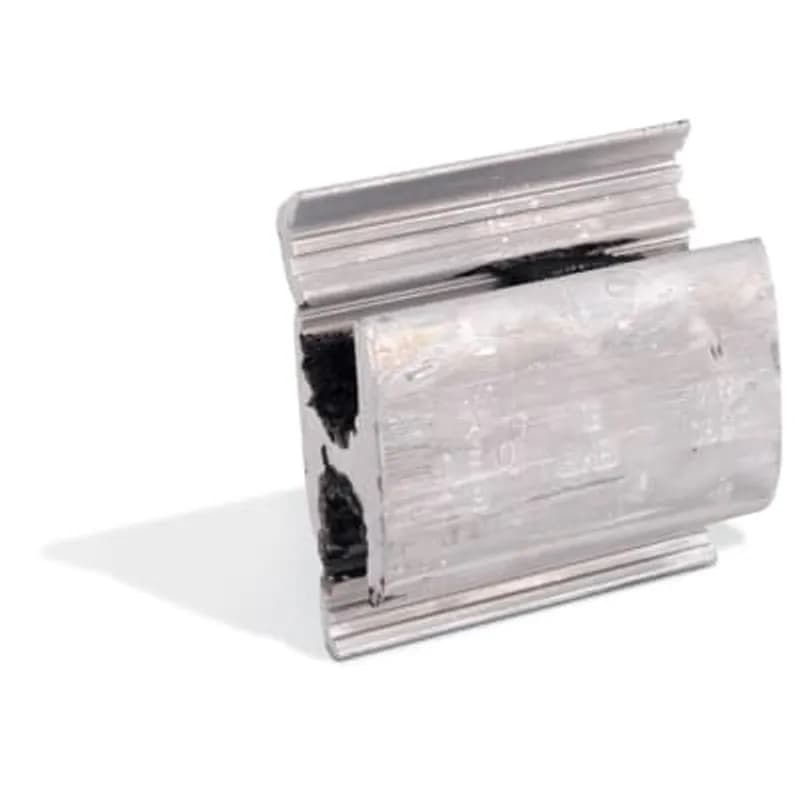

ABB - Installation Products DB 100 MM 100 MM - Aluminum H-Type Compression Connector - Main 100 millimeters squared ACSR, Tap 100 millimeters squared ACSR, Die D, Length 2.1870 inches,
ABB - Installation Products

DB 100 MM 100 MM

UPC: 783786072552

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

This ABB H-Type Compression Connector, SKU DB 100 MM 100 MM, is engineered for reliable electrical connections in overhead power distribution systems. Designed for ACSR (Aluminum Conductor Steel Reinforced) cables, this connector features a main conductor capacity of 100 millimeters squared and a tap conductor capacity also of 100 millimeters squared. The specific die required for installation is Die D, ensuring a precise and secure crimp. Constructed from durable aluminum, this connector is built to withstand the environmental conditions typical of outdoor electrical infrastructure. Its H-type configuration facilitates a robust and efficient splice or tap connection, crucial for maintaining the integrity and performance of the power grid. The connector measures 2.1870 inches in length, providing adequate surface area for a secure and long-lasting electrical bond. ABB's commitment to quality in their Installation Products division ensures that this connector meets stringent industry standards for electrical conductivity and mechanical strength. Ideal for utility companies and electrical contractors working on transmission and distribution lines, this component is vital for ensuring uninterrupted power flow and system reliability.
  • ABB H-Type Compression Connector for ACSR cables
  • Main conductor size: 100 mm² ACSR
  • Tap conductor size: 100 mm² ACSR
  • Requires Die D for installation
  • Durable aluminum construction, 2.1870 inches length

Specifications

Application
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection
Compression
Connection Type
Compression
Environmental Conditions
All Seasons / Conditions
Finish
Uncoated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Length 2.1870 inches
Size
100 mm²
Special Features
Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
H-Type Compression Tap Connector
Wire Size
Main: 100 mm2 , Tap: 100 mm2
Package Dimensions (L x W x H)
2.68 IN x 1.06 IN x 2.68 IN
Package Dimensions (L x W x H)
6.8072 cm x 2.6924 cm x 6.8072 cm
Package Weight (Imperial)
0.1700 L
Package Weight (Metric)
0.0770 kg
