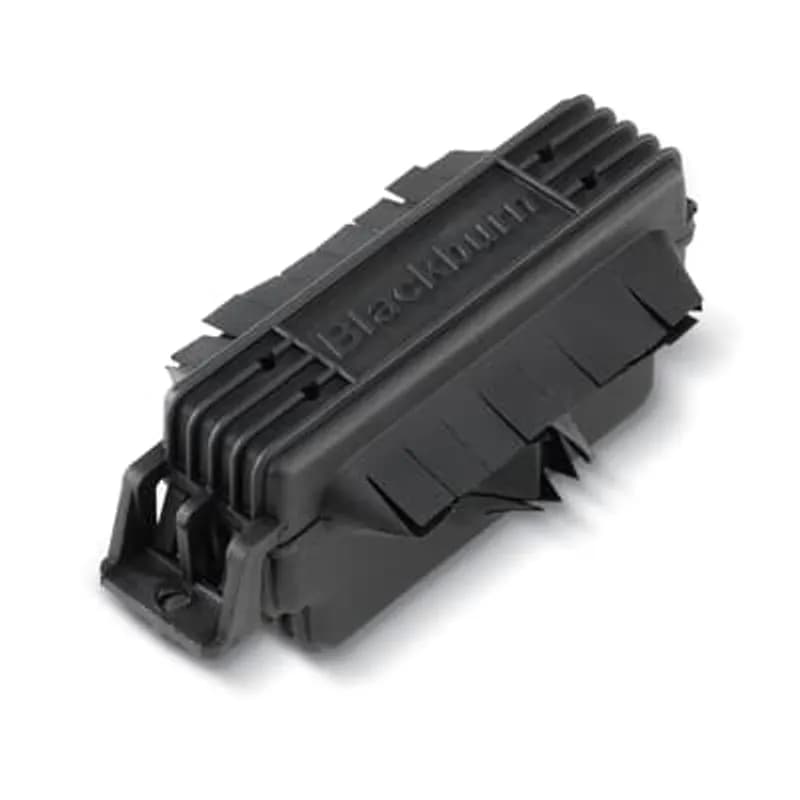

ABB Installation Products IPC 402 C Lock on Insulating Cover for Item IPC 402-8 (Insulation Piercing Connector for 4/0-2 Min…
UPC: 783786379040
Documents & Media
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Lock-on insulating cover for ABB IPC 402-8 connector
- Hinged design for easy installation and access
- Constructed from durable black Santoprene material
- Overall open length: 8.95 inches
- Overall height: 2.04 inches, width: 2.15 inches
Specifications
Color | Black |
Connection | Lock-On |
Housing Material | Santoprene |
Insulation | Yes |
Material | Santoprene |
Series | IPC 402 |
Size | Overall Open Length 8.95 inch, Height 2.04 inch, Width 2.15 inch |
Size | 8.95 inch (open length) X 2.04 inch (height) X 2.15 inch (width) |
Type | Cover |
Wire Size | 4/0 to #2 AWG |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0700 L |
Package Weight (Metric) | 0.0320 kg |
